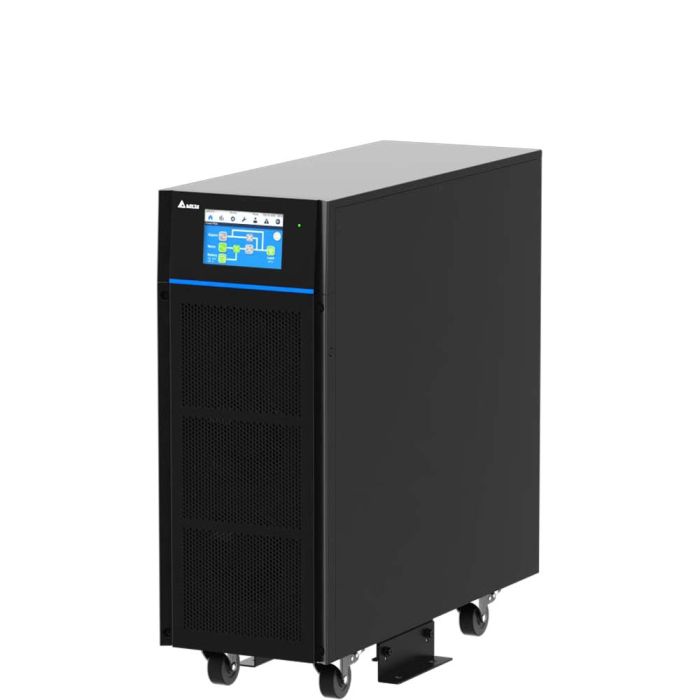

Delta HPH Gen.2 Series 40 kVA 3‑Phase Online UPS

PRODUCT OVERVIEW

GENERAL INFORMATION :
manufacturer : Delta Electronics
MANUFACTURER Part Number : UPS403HH3300035
MANUFACTURER Website Address : WWW.DELTAELECTRONICS.COM

PRODUCT Name :
Delta HPH Gen.2 Series 40 kVA 3‑Phase Online UPS

POWER DESCRIPTION :
UPS Type : Online, double‑conversion (true on‑line)
Rated Power : 40 kVA / 40 kW
Phase Configuration : 3‑phase input & 3‑phase output (3P4W)
Efficiency (AC‑AC) : ~96 % (online)
ECO Mode Efficiency : ~99 %

INPUT SPECIFICATIONS :
Input Voltage (Nominal) : 220/380 / 230/400 / 240/415 Vac (3φ, 4‑wire + PE)
Input Voltage Range : ~305–478 Vac (full load); 228–478 Vac (70 % load)
Input Frequency Range : 40–70 Hz
Input Power Factor : > 0.99
Input Current THD : ≤ 2 %

OUTPUT SPECIFICATIONS :
Output Voltage : 220/380 / 230/400 / 240/415 Vac (3φ, 4‑wire + PE)
Output Voltage Regulation : ± 1 % (static)
Output Frequency : 50/60 Hz ± 0.05 Hz
Output Power Factor : 1.0 (kVA = kW)
Output Voltage THD : ≤ 1.5 % (linear load); ≤ 4 % (non‑linear)
Overload Capability : ≤ 105 % continuous;

 105–≤ 110 % (60 min); > 110–≤ 125 % (10 min);
 125–≤ 150 % (1 min); > 150 % (1 s)

BATTERY INFORMATION :
Battery Type : External battery supported (No internal batteries in base configuration)
Battery Voltage : ~240 V DC (configurable)
Typical Backup Time : Configurable (depends on battery count)
Recharge Time : ~8–9 h to 90 % (typical)
Charge Current : ~15 A (typical charger)
External Battery Support : Yes

EXPANSION / CONNECTIVITY :
Receptacles : Hard‑terminal output (no IEC outlets)
Communication Interfaces : RS‑232, USB, SNMP, Parallel port × 2, Dry contacts, Mini‑slot ports

INTERFACES & PORTS :
1 X RS‑232
1 X USB
1 X REPO
Mini slots × 2
Parallel ports × 2
Dry contact outputs × 4
Dry contact inputs × 2

DIMENSIONS & WEIGHT :
Dimensions (WxDxH) : ~830 × 490 × 1400 mm
weight : ~385 kg

ENVIRONMENTAL CONDITIONS :
Ambient Operating Temp. : 0–40 °C
Relative Humidity : 0–95 % non‑condensing
Degree of Protection : IP20 (optional IP42 kit available)

CONDITION : Brand New.
AVAILABILITY : In Stock.
OUR WARRANTY : Typically 1 Year (seller dependent).
