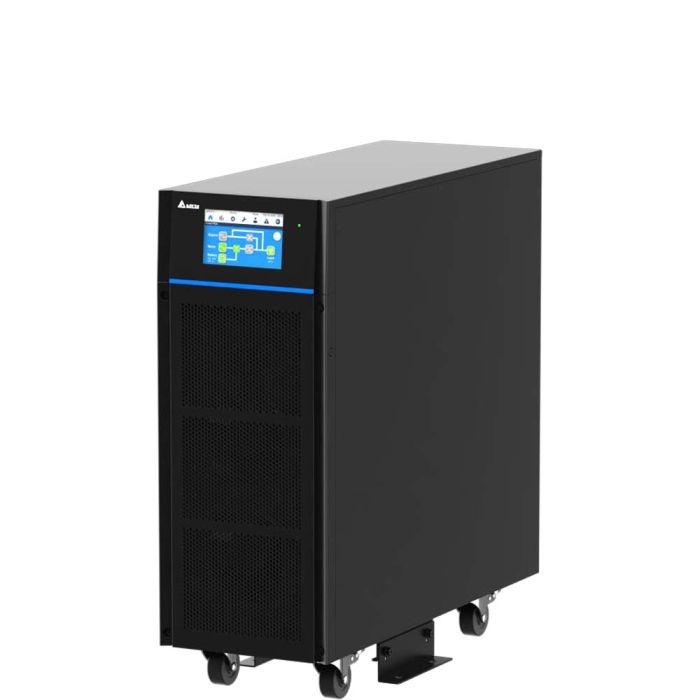

Delta HPH Gen.2 30kVA 3‑Phase Online UPS (Tower)

PRODUCT OVERVIEW

GENERAL INFORMATION :
manufacturer : Delta Electronics
MANUFACTURER Part Number : UPS303HH3300035
MANUFACTURER Website Address : WWW.DELTAELECTRONICS.COM

PRODUCT Name :
Delta HPH Gen.2 30kVA 3‑Phase Online UPS (Tower)

POWER DESCRIPTION :

UPS Type : Online, double‑conversion (true on‑line UPS)
Rated Power : 30 kVA / 30 kW
Phase : 3‑phase input & 3‑phase output (3P4W)
Nominal AC Voltage : 220/380 VAC, 230/400 VAC, 240/415 VAC
Efficiency (AC‑AC) : ~96 % (online mode)
ECO Mode Efficiency : ~99 %

INPUT SPECIFICATIONS :

Input Voltage (Nominal) : 220/380, 230/400, 240/415 Vac (3φ 4W + PE)
Input Voltage Range : ~228–478 Vac (phase‑to‑phase) @ 70 % load, ~305–478 Vac @ 100 % load
Input Frequency Range : 40–70 Hz
Input Power Factor : > 0.99
Input Current THD : < 2.5–3 %

OUTPUT SPECIFICATIONS :

Output Voltage : 220/380, 230/400, 240/415 Vac (3φ 4W + PE)
Output Voltage Regulation : ± 1 % (static)
Output Frequency : 50/60 Hz (auto select)
Output Power Factor : 1.0 (kVA = kW)
Output Voltage THD : < 1.5 % (linear load) / ≤ 4 % (non‑linear)
Overload Capability : Standard UPS overload tolerance (typical for HPH series)

BATTERY INFORMATION :

Battery Type : Lead‑acid VRLA or external battery connection supported
Battery Voltage : Nominal ~240 V DC (dependent on battery string)
Internal Batteries : Typically supplied without internal batteries (model UPS303HH3300035 configuration)
External Battery Support : Yes – supports external battery banks
Typical Backup Time : ~3.6 min @ 100 % load (configurable with battery quantity)
Recharge Time : ~8 h to full (dependent on battery bank)

EXPANSION / CONNECTIVITY :

Receptacles : Hard‑terminal output (no IEC outlets)
Dry contacts / SNMP support : Yes (SNMP, EPO, dry contacts available)

INTERFACES & PORTS :

Communication : RS‑232, USB, REPO, Mini‑slot cards (optional)
LED / Display : LCD display + LED indicators
Parallel operation : Support depends on selected configuration & accessories

DIMENSIONS & WEIGHT :

Dimensions (WxDxH) : ~240 × 630 × 650 mm
weight : ~50 kg

ENVIRONMENTAL CONDITIONS :

Ambient Operating Temp. : 0–40 °C
Relative Humidity : 0–95 % non‑condensing
Noise Level : < 56 dBA (approx.)
Protection Class : IP20

CONDITION & WARRANTY

CONDITION : Brand New.
AVAILABILITY : In Stock (availability varies by seller).
OUR WARRANTY : Typically 12 Months / 1 Year (seller dependent).
