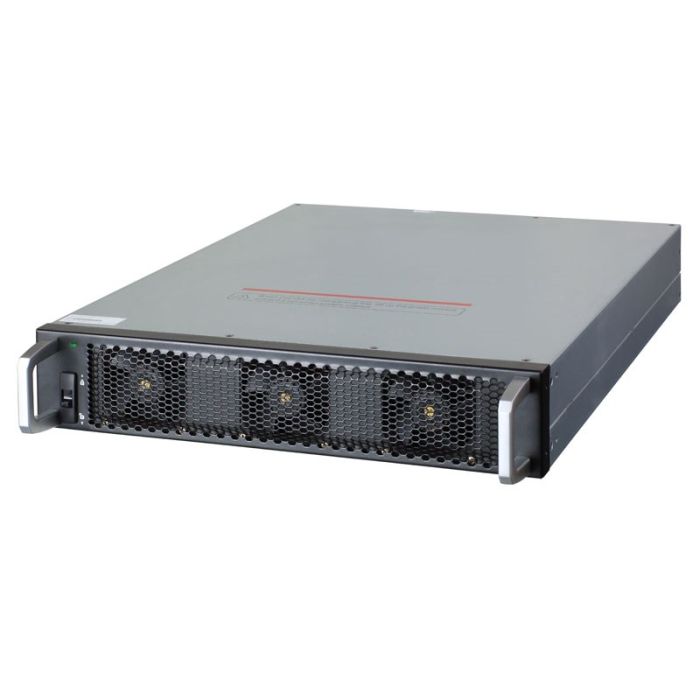

Delta DPH Series 20 kVA Power Module (Modular UPS Component)

PRODUCT OVERVIEW

GENERAL INFORMATION :
manufacturer : Delta Electronics
MANUFACTURER Part Number : 3915102002‑S
MANUFACTURER Website Address : WWW.DELTAELECTRONICS.COM

PRODUCT Name :
Delta DPH Series 20 kVA Power Module (Modular UPS Component)

POWER DESCRIPTION :
Module Type : UPS Power Module (Modular Block for UPS)
Rated Power : 20 kVA / 20 kW
Topology : True on‑line UPS module (part of modular UPS architecture)

INPUT SPECIFICATIONS :
Input Voltage Range : Configurable (depends on UPS system configuration)
Input Phase : 3‑phase (for modular DPH UPS systems)
Input Frequency : 50/60 Hz (auto synchronized)

OUTPUT SPECIFICATIONS :
Output Voltage : 3‑phase output (depends on UPS system configuration)
Output Frequency : 50/60 Hz (auto synchronized)
Output Power Factor : Typically ~1.0 (kVA = kW) (common for DPH modules)
Output THD : Low distortion (depends on UPS controller & system)

BATTERY INFORMATION :
Battery Type : Depends on full UPS system external battery bank — module itself has no internal battery
Internal Battery : Not applicable (module only)
External Battery Support : Yes (as part of full UPS system)

EXPANSION / CONNECTIVITY :
Module Form Factor : 2U, hot‑swappable module for modular UPS systems
Scalability : Can be paralleled with other modules in same UPS frame

INTERFACES & PORTS :
Communication : Interfaces depend on UPS main controller frame (RS‑232/USB/SNMP via system)
Status Indicators : LED module status (when installed)

DIMENSIONS & WEIGHT :
Module Height : 2U form factor
Weight : ~6.5 kg (approx, typical power module)

ENVIRONMENTAL CONDITIONS :
Operating Temp : ~0–40 °C (dependent on UPS enclosure spec)
Relative Humidity : ~0–95 % non‑condensing

CONDITION : Brand New.
AVAILABILITY : In Stock (market dependent).
OUR WARRANTY : Typically 1 Year.
