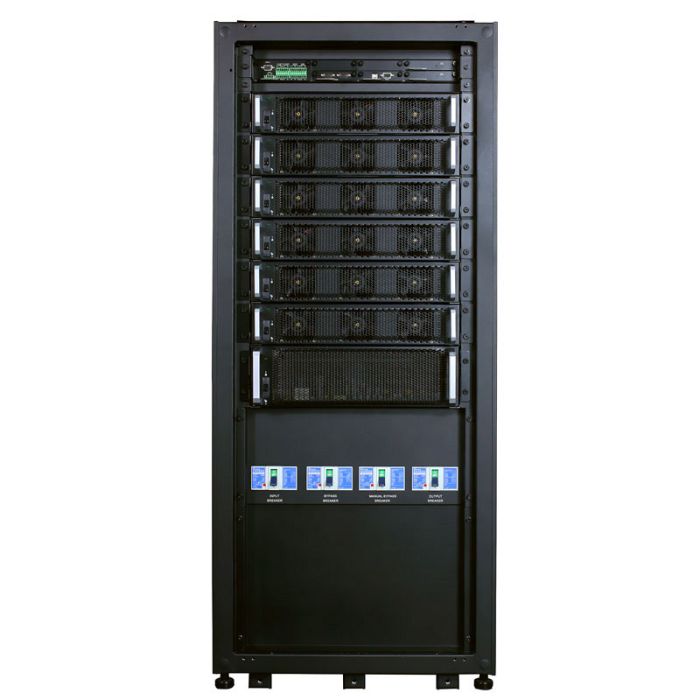

Delta Modulon DPH‑Series 120 kVA 3‑Phase Online UPS (modular design)
Part Number:
UPS124DH33C2035
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
PRODUCT OVERVIEW
GENERAL INFORMATION :
manufacturer : Delta Electronics
MANUFACTURER Part Number : UPS124DH33C2035
MANUFACTURER Website Address : WWW.DELTAELECTRONICS.COM
PRODUCT Name :
Delta Modulon DPH‑Series 120 kVA 3‑Phase Online UPS (modular design)
POWER DESCRIPTION :
UPS Type : Online, double‑conversion (true on‑line)
Rated Power : 120 kVA / 120 kW
Phase Configuration : 3‑phase input & 3‑phase output
Efficiency (AC‑AC) : > ~96 %
ECO Mode Efficiency : ~99 %
INPUT SPECIFICATIONS :
Input Voltage (Nominal) : 220/380 / 230/400 / 240/415 Vac (3φ, 4‑wire + PE)
Input Voltage Range : 305–478 Vac (full load); 228–478 Vac (70 % load)
Input Frequency Range : 40–70 Hz
Input Power Factor : > 0.99
Input Current THD : < 2 %
OUTPUT SPECIFICATIONS :
Output Voltage : 220/380 / 230/400 / 240/415 Vac (3φ, 4‑wire + PE)
Output Voltage Regulation : ± 1 % (static)
Output Frequency : 50/60 Hz ± 0.05 Hz
Output Power Factor : 1.0 (kVA = kW)
Output Voltage THD : ≤ 1 % (linear load); ≤ 4 % (non‑linear load)
Overload Capability : ≤ 125 %: 10 min; ≤ 150 %: 1 min; > 150 %: 1 s
BATTERY INFORMATION :
Battery Type : External battery supported (no internal batteries in base chassis)
Battery Voltage : Nominal ~240 V DC (configurable)
Typical Backup Time : Configurable (depends on external battery bank size)
Recharge Time : ~8 h to 90 % (typical)
External Battery Support : Yes
EXPANSION / CONNECTIVITY :
Receptacles : Hard‑terminal output (no IEC outlets)
Communication : USB (Type A ×2), USB‑B, RS‑232, RS‑485, Ethernet (SNMP), Modbus, REPO, dry contacts & remote interfaces
Parallel System Support : Yes, modular redundancy & parallel scaling
INTERFACES & PORTS :
1 X USB Type‑B
2 X USB Type‑A
1 X RS‑232
1 X RS‑485 / Modbus
1 X Ethernet (RJ45)
REPO & dry contact terminals
DIMENSIONS & WEIGHT :
Dimensions (WxDxH) : ~600 × 850 × 1445 mm
weight : ~162 kg (system chassis without power modules)
ENVIRONMENTAL CONDITIONS :
Ambient Operating Temp. : 0–40 °C
Relative Humidity : 5–90 % non‑condensing
Noise Level : < 65 dB (@1 m)
Protection Class : IP20
CONDITION : Brand New.
AVAILABILITY : In Stock.
OUR WARRANTY : Typically 12 Months / 1 Year.
| Condition | New |
|---|---|
| Manufacturer | DELTA |
