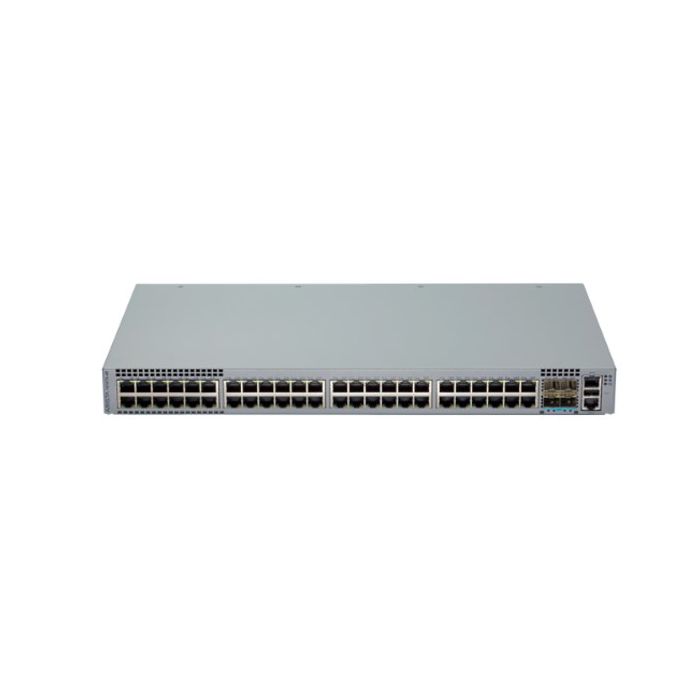

Arista DCS-7010TX-48-F 7010TX-48 48x 10/100/1000 RJ45 4 x 25G SFP Switch

ARISTA DCS-7010TX-48-F 7010tx-48 48x 10/100/1000 Rj45 4 X 25g Sfp Switch

Specifications

Model: ARISTA DCS-7010TX-48-F
Series: ARISTA 7010t Series
Type: Fixed-configuration, Low-latency, Data Center Switch
Form Factor: 1 Ru (rack Unit)
Airflow: Front-to-back Airflow (-f In The Model Number Denotes Front-to-back Airflow).
2. Interfaces And Ports
48 X 10/100/1000 Mbps (1gbe) Rj45 Copper Ports:
Each Port Supports Standard Gigabit Ethernet For Server And Device Connectivity.
4 X 10gbe Sfp+ Uplink Ports:
These 10 Gigabit Ethernet Ports Provide High-speed Uplinks To Aggregation Or Core Layers.
Each Sfp+ Port Supports A Variety Of Sfp+ Transceivers For Fiber Optic Or Dac (direct Attach Copper) Cables.
3. Performance
Switching Capacity: 176 Gbps (gigabits Per Second).
Forwarding Rate: 132 Mpps (million Packets Per Second).
Latency: Ultra-low Latency, Typically Sub-microsecond, Suitable For Applications Requiring Real-time Performance.
Packet Buffer: 4 Mb Shared Packet Buffer Across All Ports.
Mac Address Table: Supports Up To 16,000 Mac Addresses.
4. Layer 2 And Layer 3 Features
Layer 2 Features:
Ieee 802.1q Vlan Support With Up To 4,000 Vlans.
Spanning Tree Protocols: Stp, Rstp, And Mstp For Network Loop Prevention.
Link Aggregation: Supports Ieee 802.3ad Lacp (link Aggregation Control Protocol) For Bundling Multiple Physical Links Into One Logical Link.
Jumbo Frames: Supports Jumbo Frames With A Maximum Frame Size Of Up To 9,216 Bytes.
Layer 3 Features:
Ipv4 And Ipv6 Routing: Supports Both Ipv4 And Ipv6 Routing Protocols.
Dynamic Routing Protocols: Ospf, Bgp, Rip, And Is-is.
Multicast Routing: Pim-sm, Pim-dm, Pim-ssm, And Igmp For Efficient Multicast Routing.
Vrf-lite: Virtual Routing And Forwarding For Network Segmentation.
5. Quality Of Service (qos)
Traffic Prioritization: Supports Ieee 802.1p Class Of Service (cos) With 8 Priority Queues Per Port.
Traffic Shaping And Policing: Allows Granular Control Of Traffic Bandwidth Allocation.
Congestion Management: Advanced Scheduling Algorithms Such As Strict Priority (sp) And Weighted Round Robin (wrr).
6. Security Features
Access Control Lists (acls): Standard And Extended Acls For Layer 2, Layer 3, And Layer 4 Traffic Filtering.
Port Security: Controls Access By Limiting The Number Of Mac Addresses Per Port.
Dhcp Snooping: Protects Against Rogue Dhcp Servers.
Dynamic Arp Inspection (dai): Prevents Arp Spoofing Attacks.
Ip Source Guard: Prevents Ip Address Spoofing By Filtering Untrusted Ip Addresses.
7. Network Management And Monitoring
Command Line Interface (cli): Full-featured Cli For Advanced Management And Configuration.
Web-based Gui: Provides A User-friendly Interface For Monitoring And Management.
Snmp: Supports Snmp V1, V2c, And V3 For Remote Management.
Sflow: Supports Sflow For Real-time Traffic Monitoring And Analysis.
Syslog: Logs Critical System Events For Network Diagnostics.
Zero Touch Provisioning (ztp): Simplifies Deployment And Management In Large-scale Environments By Automating Device Setup.
8. Power And Cooling
Power Supplies:
Dual Hot-swappable Power Supplies For Redundancy.
Available In Both Ac And Dc Power Supply Options (model-specific).
Typical Power Consumption: 90w Under Typical Load Conditions.
Cooling:
Front-to-back Airflow, Ideal For Data Centers With Hot Aisle/cold Aisle Configurations.
Hot-swappable, Redundant Fan Trays Ensure Efficient Cooling And Minimize Downtime During Maintenance.
9. Environmental Specifications
Operating Temperature: 0°c To 40°c (32°f To 104°f).
Storage Temperature: -40°c To 70°c (-40°f To 158°f).
Operating Humidity: 5% To 95% Non-condensing.
Acoustic Noise: Less Than 50 Dba At Typical Operating Temperatures.
10. Reliability And Redundancy
Redundant Power Supplies: Supports Dual, Hot-swappable Power Supplies For High Availability.
Hot-swappable Fans: The Fan Trays Are Hot-swappable, Allowing For Replacements Or Maintenance Without Disrupting Operations.
In-service Software Upgrades (issu): Allows Software Updates Without Interrupting Network Traffic, Ensuring Continuous Availability.
11. Compliance And Certifications
Rohs: Compliant With The Restriction Of Hazardous Substances (rohs) Directive.
Safety Certifications: Ul, Csa, Ce, And Other Global Safety Certifications.
Emc Compliance: Meets International Standards For Electromagnetic Emissions And Susceptibility, Including Fcc Part 15 (class A), Ce, And En Certifications.
12. Use Cases
Data Center Top-of-rack (tor) Switch: Ideal For Providing Gigabit Ethernet Connectivity For Servers With 10gbe Uplinks To Aggregation Or Core Switches.
Enterprise Edge/access Layer: Suitable For Enterprise Networks Requiring High-density 1gbe Connectivity At The Edge Or Access Layer, With 10gbe Uplinks For Connecting To Core Or Aggregation Layers.
Small To Medium Data Centers: Perfect For Environments That Need Cost-effective, Low-power, And Compact Networking Solutions With High Performance.



Condition: New.
Availability: Call.
Our Warranty: 90 Days.
