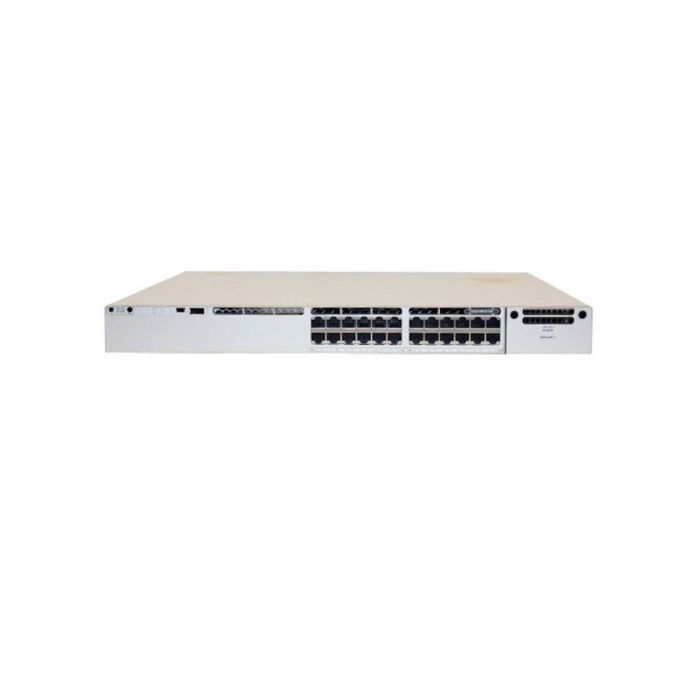

Cisco Meraki Catalyst 9300-24T - Switch - L3 - Managed - 24 x 10/100/1000 - rack-mountable

PRODUCT OVERVIEW

GENERAL INFORMATION :

Manufacturer : Cisco
MANUFACTURER Part Number : C9300-24T-M
MANUFACTURER Website Address : WWW.CISCO.COM

PRODUCT Name : Cisco Catalyst 9300 Series Switch

POWER DESCRIPTION :

Power Supply : Default AC Power Supply (Hot-swappable)
Redundant Power Supply : Supported
Power Consumption : ~350W (typical, depends on configuration)

INPUT SPECIFICATIONS :

Input Voltage : 100–240 VAC
Input Frequency : 50–60 Hz

OUTPUT SPECIFICATIONS :

Switching Capacity : ~208 Gbps
Forwarding Rate : ~154.76 Mpps

PORT INFORMATION :

Total Ports : 24 × 10/100/1000 RJ-45 Ethernet Ports
Uplink Ports : Modular Uplink (Network Module required)

FEATURES :

Layer Support : Layer 3 (IP Base – “M” License)
Stacking : StackWise-480 Supported
Security : Advanced Security Features (802.1X, TrustSec, MACsec)
Management : Cisco IOS XE, CLI, SNMP, Web UI
Automation : SD-Access & Programmability Support

INTERFACES & PORTS :

1 × Console Port (RJ-45)
1 × USB Console
1 × USB Type-A
Stacking Ports

DIMENSIONS & WEIGHT :

Dimensions (WxDxH) : ~445 × 445 × 44 mm
Weight : ~7.5 kg

ENVIRONMENTAL CONDITIONS :

Operating Temperature : 0–45 °C
Relative Humidity : 5–95 % non-condensing

CONDITION : Brand New.

AVAILABILITY : In Stock.

OUR WARRANTY : 1 Year.
