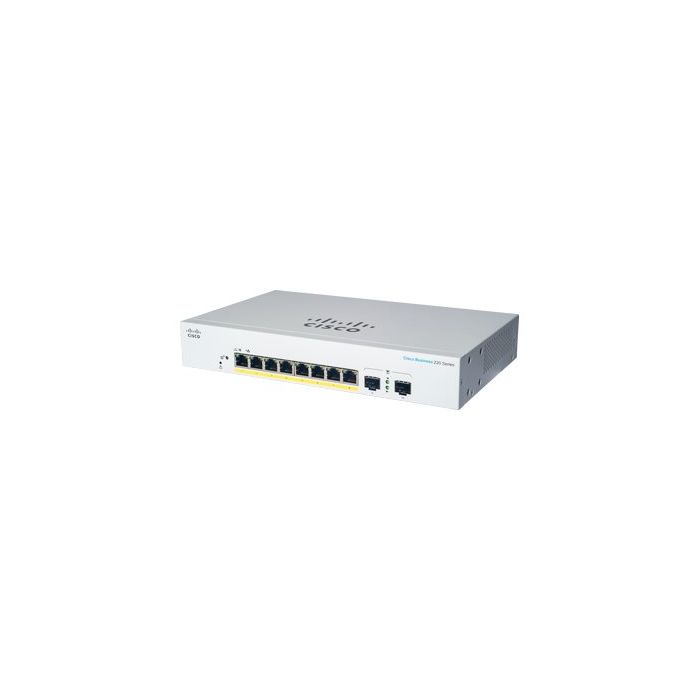

Cisco (CBS220-8P-E-2G), Business 220 Series Smart Switches Managed L2 Gigabit Ethernet Power over Ethernet (PoE) White
Part Number:
CBS220-8P-E-2G
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | Yes |
| Switch layer | L2 |
| Configuring Location Settings (CLI) | Yes |
| Network | |
| IGMP snooping | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IGMP entries | 256 |
| Networking standards | IEEE 802.1D, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 256 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 256 |
| Data transmission | |
| Number of multicast groups filtered | 256 |
| Number of VLANs | 256 |
| Jumbo frames | 9216 |
| Packet buffer memory | 4.1 MB |
| MAC address table | 8192 entries |
| Switching capacity | 20 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 14.88 Mpps |
| Performance | |
| Packet buffer memory | 4.1 MB |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Firmware upgradeable | Yes |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Product colour | White |
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
| Ports & interfaces | |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Security | |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Access Control List (ACL) rules | 512 |
| SSH/SSL support | Yes |
| Security algorithms | SSL/TLS |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| IGMP entries | 256 |
| DHCP features | DHCP client |
| Multicast features | |
| Number of multicast groups filtered | 256 |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMP |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Memory | |
| Packet buffer memory | 4.1 MB |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Design | |
| Reset button | Yes |
| Product colour | White |
| LED indicators | Activity, Link, Speed, System |
| Rack mounting | Yes |
| Indication | |
| LED indicators | Activity, Link, Speed, System |
| Mobile network | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Power | |
| Power consumption (max) | 81.6 W |
| Power supply included | Yes |
| Power consumption (typical) | 5.7 W |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 65 W |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 273.43 BTU/h |
| Weight & dimensions | |
| Width | 279 mm |
| Depth | 170 mm |
| Height | 44 mm |
| Weight | 1.18 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Condition | NEW |
|---|---|
| Manufacturer | CISCO |
