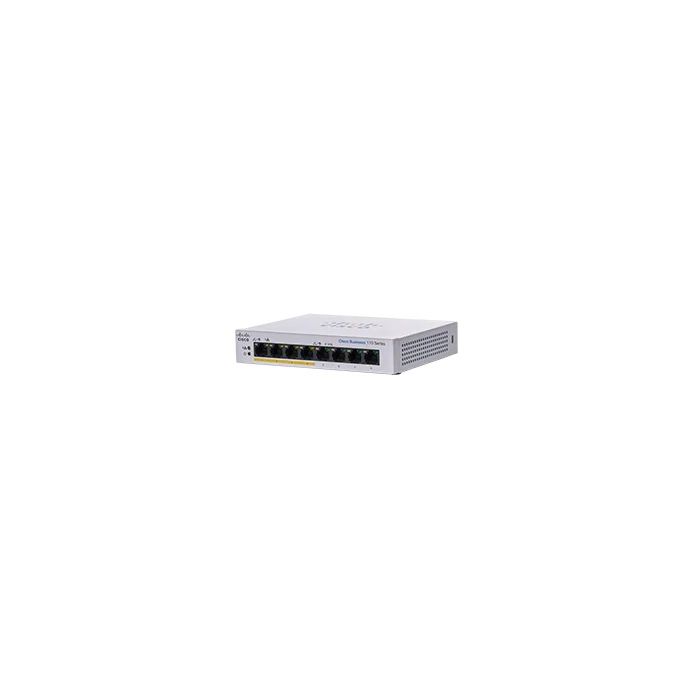

Cisco (CBS110-8PP-D), Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Part Number:
CBS110-8PP-D
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Specifications
| Ports & interfaces | |
|---|---|
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Technical details | |
| Product colour | Grey |
| Processor frequency | 400 MHz |
| Mean time between failures (MTBF) | 465437 h |
| Rack mounting | No |
| Built-in processor | Yes |
| Sustainability compliance | Yes |
| Compliance certificates | CE |
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Network | |
| Cable types supported | Cat5e |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Head-of-line (HOL) blocking | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Half duplex | Yes |
| Data transmission | |
| Jumbo frames | 9216 |
| MAC address table | 8192 entries |
| Switching capacity | 16 Gbit/s |
| Number of queues | 4 |
| Jumbo frames support | Yes |
| Forwarding rate | 11.9 Mpps |
| Security | |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Certificates | |
| Certification | UL (UL 60950), CSA (CSA 22.2), CE, FCC 15 (CFR 47) A, FCC B |
| Design | |
| Product colour | Grey |
| LED indicators | Yes |
| Certification | UL (UL 60950), CSA (CSA 22.2), CE, FCC 15 (CFR 47) A, FCC B |
| Rack mounting | No |
| Performance | |
| Processor frequency | 400 MHz |
| Mean time between failures (MTBF) | 465437 h |
| Built-in processor | Yes |
| Harmonized System (HS) code | 85176990 |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power supply included | Yes |
| Input current | 1.25 A |
| DC input voltage | 48 V |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 32 W |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 130.34 BTU/h |
| Weight & dimensions | |
| Width | 160 mm |
| Depth | 129 mm |
| Height | 30 mm |
| Weight | 550 g |
| Packaging data | |
| Quick start guide | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Packaging content | |
| Quick start guide | Yes |
| Condition | NEW |
|---|---|
| Manufacturer | CISCO |
