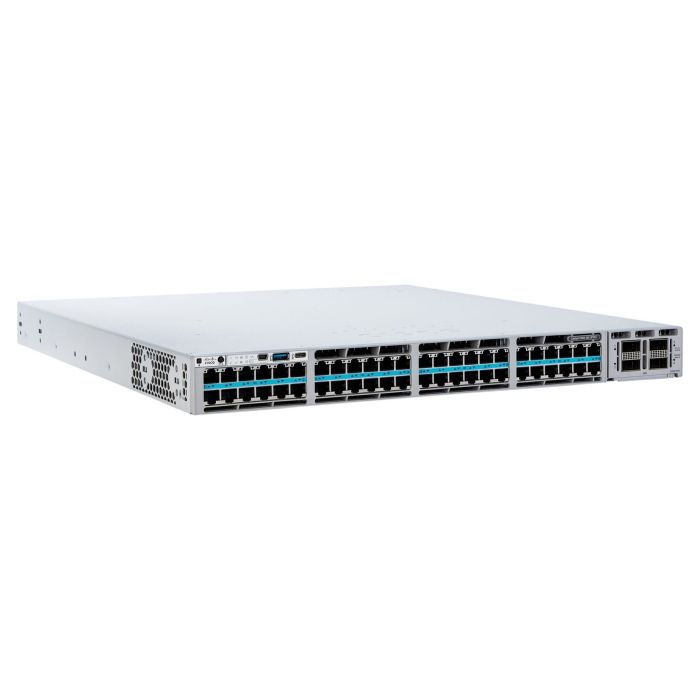

Cisco Catalyst C9300-48UXM-M network switch Managed L2/L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Grey
Part Number:
C9300-48UXM-M
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Specifications
| Management features | |
|---|---|
| ARP inspection | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2/L3 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| USB 2.0 ports quantity | 1 |
| Network | |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 4094 |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Multiprotocol Label Switching (MPLS) | Yes |
| Zero Touch Provisioning (ZTP) | Yes |
| Virtual LAN features | Private VLAN |
| IPv6 multicast entries | 16000 |
| IPv4 multicast entries | 32000 |
| Data transmission | |
| Jumbo frames | 9198 |
| Packet buffer memory | 32 MB |
| MAC address table | 32000 entries |
| Switching capacity | 580 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 431.54 Mpps |
| Number of VLANs | 4094 |
| Security | |
| Security algorithms | 128-bit AES, 256-bit AES |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| IPv6 multicast entries | 16000 |
| IPv4 multicast entries | 32000 |
| Protocols | |
| Virtual Router Redundancy Protocol (VRRP) | Yes |
| Routing protocols | BGP, EIGRP, HSRP, IS-IS, OSPF, RIP |
| Design | |
| Safety | UL 60950-1, CAN/CSA-C222.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1, IEEE 802.3 |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | Yes |
| LED indicators | Yes |
| Electromagnetic compatibility | 47 CFR Part 15, CISPR22 Class A, EN 300 386 V1.6.1, EN 55022 Class A, EN 55032 Class A, CISPR 32 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, TCVN 7189 Class A, V-3 Class A, CISPR24, EN 300 386, EN55024, TCVN 7317 |
| Rack mounting | Yes |
| Performance | |
| Plug and Play | Yes |
| Mean time between failures (MTBF) | 202160 h |
| Flash memory | 16000 MB |
| Firmware upgradeable | Yes |
| Built-in processor | Yes |
| Packet buffer memory | 32 MB |
| Stackable | Yes |
| Harmonized System (HS) code | 85176990 |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 490 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 3000 m |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Virtual LAN features | Private VLAN |
| Weight & dimensions | |
| Width | 445 mm |
| Depth | 485 mm |
| Height | 44 mm |
| Weight | 9.34 kg |
| Technical details | |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | Yes |
| Mean time between failures (MTBF) | 202160 h |
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Certificates | |
| Safety | UL 60950-1, CAN/CSA-C222.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1, IEEE 802.3 |
| Electromagnetic compatibility | 47 CFR Part 15, CISPR22 Class A, EN 300 386 V1.6.1, EN 55022 Class A, EN 55032 Class A, CISPR 32 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, TCVN 7189 Class A, V-3 Class A, CISPR24, EN 300 386, EN55024, TCVN 7317 |
| Memory | |
| Packet buffer memory | 32 MB |
| Flash memory | 16000 MB |
| Indication | |
| LED indicators | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Condition | New |
|---|---|
| Manufacturer | CISCO |
