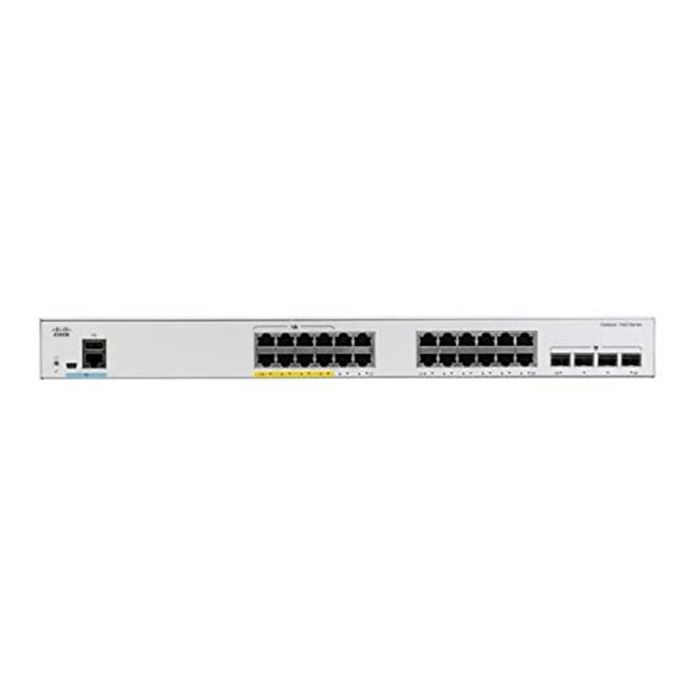

Cisco Catalyst C1000-24FP-4G-L network switch Managed L2 Gigabit Ethernet ) Power over Ethernet (PoE) Grey
Part Number:
C1000-24FP-4G-L
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Specifications
| Management features | |
|---|---|
| Traffic classification | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| MIB support | Yes |
| Switch layer | L2 |
| Configuring Location Settings (CLI) | Yes |
| Ports & interfaces | |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45/Mini-USB |
| Network | |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 4094 |
| Link aggregation | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| IGMP snooping | Yes |
| IPv6 multicast entries | 1024 |
| IPv4 multicast entries | 1024 |
| IGMP entries | 1024 |
| Data transmission | |
| Jumbo frames | 10240 |
| Number of static routes | 16 |
| MAC address table | 16000 entries |
| Switching capacity | 56 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 41.67 Mpps |
| Number of VLANs | 4094 |
| Security | |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Authentication | Web-based authentication |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS |
| IGMP entries | 1024 |
| DHCP features | DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| IPv6 multicast entries | 1024 |
| IPv4 multicast entries | 1024 |
| Design | |
| Product colour | Grey |
| LED indicators | Yes |
| Market segment | Business |
| Country of origin | China |
| Certification | UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A EN55024 (including EN 61000-4-5), CISPR24, EN300386, KN24 Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU Common Language Equipment Identifier (CLEI) code |
| Performance | |
| Processor frequency | 800 MHz |
| Memory type | DRAM |
| Mean time between failures (MTBF) | 698220 h |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Built-in processor | Yes |
| Processor model | ARM7 |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power plug type | Type C |
| AC input voltage | 110 - 220 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) | Yes |
| Other features | |
| Packaging content | C1000-24FP-4G-L Switch, Accessory Kit, 1 printed document |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Country of origin | China |
| Operational conditions | |
| Storage temperature (T-T) | -25 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -5 - 50 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4500 m |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Weight & dimensions | |
| Width | 444.5 mm |
| Depth | 345 mm |
| Height | 44 mm |
| Weight | 4.6 kg |
| Packaging data | |
| Package width | 444.5 mm |
| Package depth | 549.4 mm |
| Package height | 147.6 mm |
| Package weight | 6.59 kg |
| Technical details | |
| Product colour | Grey |
| Processor frequency | 800 MHz |
| Mean time between failures (MTBF) | 698220 h |
| Built-in processor | Yes |
| Products per shipping (inner) case | 1 pc(s) |
| Memory | |
| Memory type | DRAM |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Certificates | |
| Certification | UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A EN55024 (including EN 61000-4-5), CISPR24, EN300386, KN24 Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU Common Language Equipment Identifier (CLEI) code |
| Indication | |
| LED indicators | Yes |
| Packaging content | |
| Packaging content | C1000-24FP-4G-L Switch, Accessory Kit, 1 printed document |
| Logistics data | |
| Country of origin | China |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
| Quantity per pack | 1 pc(s) |
| Condition | NEW |
|---|---|
| Manufacturer | CISCO |
