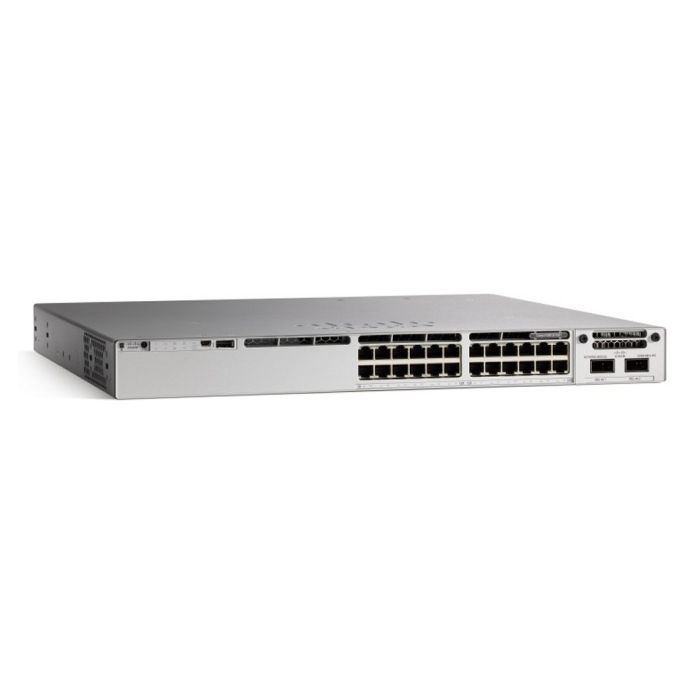

Cisco Catalyst 9300-24UX - Switch - L3 - Managed - 24 x 100/1000/2.5G/5G/10GBase-T (UPOE) - rack-mountable - UPOE (560 W)
Part Number:
C9300-24UX-M
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
PRODUCT OVERVIEW
GENERAL INFORMATION
| Field | Specification |
|---|---|
| Manufacturer | Cisco |
| Manufacturer Part Number | C9300-24UX-M |
| Manufacturer Website | www.cisco.com |
| Product Name | Cisco Catalyst 9300 Series Multigigabit Switch |
POWER DESCRIPTION
| Field | Specification |
|---|---|
| Power Supply | Modular, dual redundant |
| Input Voltage | 100–240 VAC |
| Power Consumption | ~400W (typical, depends on configuration) |
INTERFACES & PORTS
| Field | Specification |
|---|---|
| Total Ports | 24 Ports |
| Port Type | 24 × Multigigabit (1G/2.5G/5G/10G) RJ-45 |
| Uplink Ports | Modular uplink (network module supported) |
| USB Port | Yes |
| Console Port | RJ-45 + USB console |
| Management Port | 1 × RJ-45 |
PERFORMANCE
| Field | Specification |
|---|---|
| Switching Capacity | Up to 480 Gbps |
| Forwarding Rate | Up to 357 Mpps |
| Stack Bandwidth | Up to 480 Gbps (StackWise-480) |
| MAC Address Table | 32,000 entries |
SOFTWARE
| Field | Specification |
|---|---|
| Network OS | Cisco IOS XE |
| License Level | Network Essentials / Network Advantage |
| Automation | Cisco DNA Center supported |
FEATURES
| Field | Specification |
|---|---|
| Layer Support | Layer 2 & Layer 3 |
| Security Features | MACsec encryption, TrustSec, Secure Boot |
| QoS | Advanced QoS support |
| VLANs | 4094 VLAN IDs |
| PoE Support | Not supported (UX model is data-only) |
DIMENSIONS & WEIGHT
| Field | Specification |
|---|---|
| Dimensions (W×D×H) | ~445 × 445 × 44 mm |
| Weight | ~7.8 kg |
ENVIRONMENTAL CONDITIONS
| Field | Specification |
|---|---|
| Operating Temperature | 0–45 °C |
| Relative Humidity | 5–95% non-condensing |
ADDITIONAL INFORMATION
| Field | Specification |
|---|---|
| Condition | Brand New |
| Availability | In Stock |
| Warranty | 1 Year |
| Condition | New |
|---|---|
| Manufacturer | CISCO |
