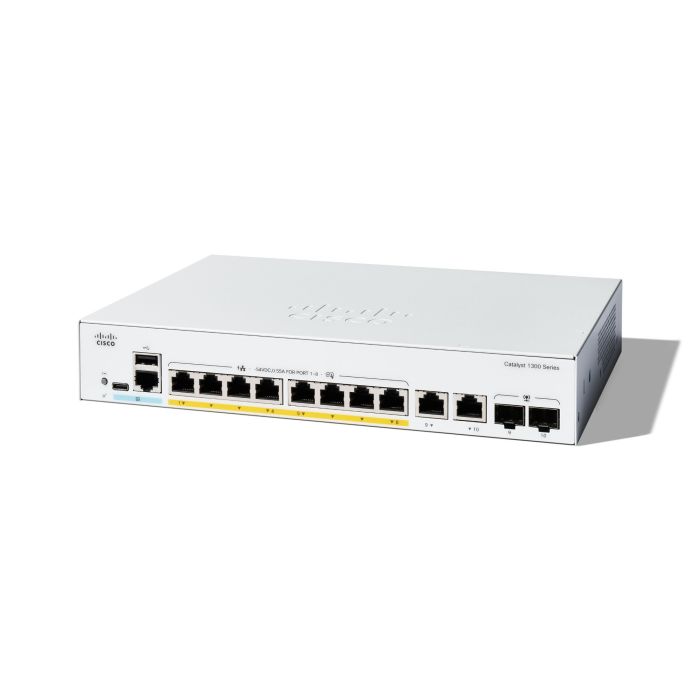

Cisco Catalyst 1300-8FP-2G Managed Switch, 8 Port GE, Full PoE, 2x1GE Combo, Limited Lifetime Protection (C1300-8FP-2G)
Part Number:
C1300-8FP-2G
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | Yes |
| Switch layer | L2 |
| Configuring Location Settings (CLI) | Yes |
| Network | |
| IGMP snooping | Yes |
| IGMP entries | 2000 |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4093 |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4093 |
| Data transmission | |
| Number of VLANs | 4093 |
| Jumbo frames | 9000 |
| Number of static routes | 990 |
| Packet buffer memory | 1.5 MB |
| MAC address table | 16000 entries |
| Switching capacity | 20 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 14.88 Mpps |
| Performance | |
| Packet buffer memory | 1.5 MB |
| Mean time between failures (MTBF) | 1786412 h |
| Technical details | |
| Product colour | Grey |
| Mean time between failures (MTBF) | 1786412 h |
| Rack mounting | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| Console port | RJ-45/USB Type-C |
| Security | |
| Loop protection | Yes |
| Authentication | MAC-based authentication, Web-based authentication |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS |
| IGMP entries | 2000 |
| DHCP features | DHCP Option 82, DHCP client, DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Design | |
| Country of origin | China |
| Product colour | Grey |
| LED indicators | Yes |
| Rack mounting | Yes |
| Indication | |
| LED indicators | Yes |
| Packaging content | |
| Packaging content | Switch, power cable, USB Type C cable and mounting hardware |
| Power | |
| Power consumption (max) | 148.12 W |
| Power plug type | Type C |
| AC input voltage | 110 - 220 V |
| AC input frequency | 50/60 Hz |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 120 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -25 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -5 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 505.41 BTU/h |
| Weight & dimensions | |
| Width | 297.4 mm |
| Depth | 268.2 mm |
| Height | 43.9 mm |
| Weight | 2.59 kg |
| Packaging data | |
| Package width | 384.8 mm |
| Package depth | 446.8 mm |
| Package height | 95 mm |
| Package weight | 3.42 kg |
| Other features | |
| Packaging content | Switch, power cable, USB Type C cable and mounting hardware |
| Country of origin | China |
| Condition | New |
|---|---|
| Manufacturer | CISCO |
