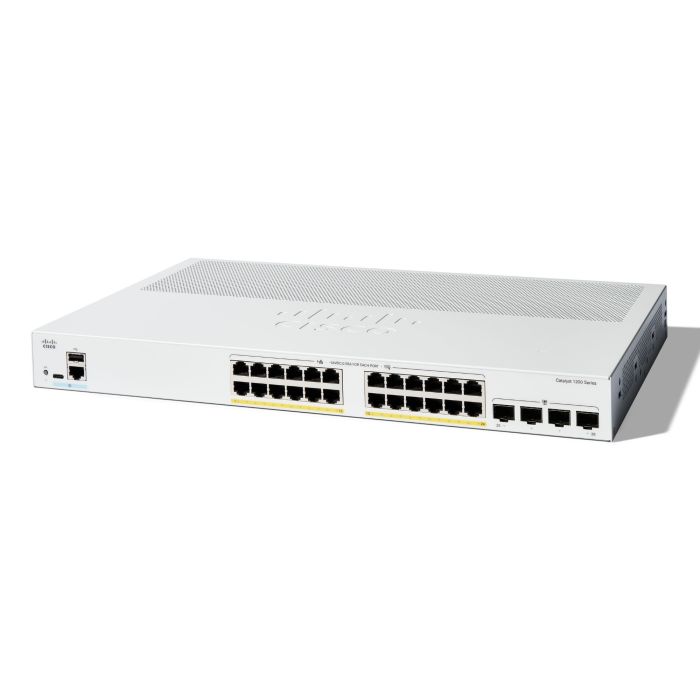

Cisco Catalyst 1200-24P-4G Smart Switch, 24 Port GE, PoE, 4x1GE SFP,
Part Number:
C1200-24P-4G
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| MIB support | Yes |
| Switch layer | L2 |
| Configuring Location Settings (CLI) | Yes |
| Ports & interfaces | |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 28 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Console port | RJ-45/USB Type-C |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 255 |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| Packet buffer memory | 1.5 MB |
| MAC address table | 8000 entries |
| Switching capacity | 56 Gbit/s |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Forwarding rate | 41.66 Mpps |
| Number of VLANs | 255 |
| Security | |
| Loop protection | Yes |
| Access Control List (ACL) rules | 512 |
| Security algorithms | 802.1x RADIUS |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| DoS attack prevention | Yes |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Design | |
| Reset button | Yes |
| Form factor | 1U |
| Product colour | White |
| LED indicators | Yes |
| Rack mounting | Yes |
| Country of origin | China |
| Certification | UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Performance | |
| Processor frequency | 1.4 MHz |
| Memory type | DDR4-SDRAM |
| Mean time between failures (MTBF) | 698220 h |
| Internal memory | 1000 MB |
| Flash memory | 512 MB |
| Firmware upgradeable | Yes |
| Built-in processor | Yes |
| Packet buffer memory | 1.5 MB |
| Power | |
| Power plug type | Type C |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 10.65 W |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 195 W |
| Power over Ethernet (PoE) | Yes |
| Other features | |
| Packaging content | Switch, power cable, USB Type C cable and mounting hardware |
| Country of origin | China |
| Operational conditions | |
| Storage temperature (T-T) | -25 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -5 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 255 |
| Weight & dimensions | |
| Width | 298.7 mm |
| Depth | 444.5 mm |
| Height | 43.9 mm |
| Weight | 3.53 kg |
| Packaging data | |
| Package width | 430 mm |
| Package depth | 575.1 mm |
| Package height | 105.9 mm |
| Package weight | 5.82 kg |
| Technical details | |
| Form factor | 1U |
| Product colour | White |
| Processor frequency | 1.4 MHz |
| Mean time between failures (MTBF) | 698220 h |
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Memory type | DDR4-SDRAM |
| Internal memory | 1000 MB |
| Flash memory | 512 MB |
| Certificates | |
| Certification | UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Indication | |
| LED indicators | Yes |
| Packaging content | |
| Packaging content | Switch, power cable, USB Type C cable and mounting hardware |
| Mobile network | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Logistics data | |
| Country of origin | China |
| Condition | NEW |
|---|---|
| Manufacturer | CISCO |
