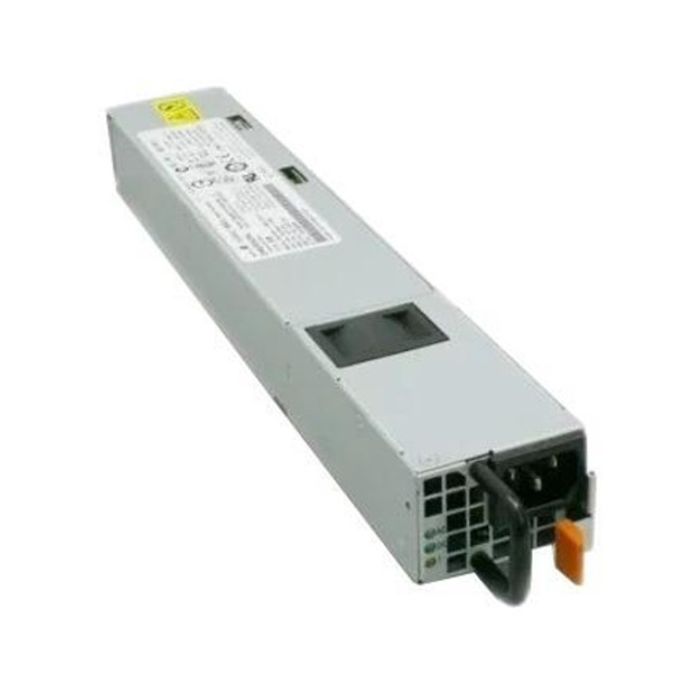

Cisco 750W AC Power Supply for Catalyst 9800-40

Part Number:

C9800-AC-750W R=

Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.

For Govt Institution credit terms or bulk order - Submit your detail below

Note: All heavy items above 20KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order.

We accept Purchase Orders from Health & Educational sector and all Government institutions including Councils.

Category	Specification
General Information
Manufacturer	Cisco Systems, Inc.
Part Number	C9800‑AC‑750W R=
Product Name	Cisco Catalyst 9800 Series 750W AC Power Supply (Reverse Airflow)
Website	www.cisco.com
Product Overview
Device Type	Hot‑plug AC Power Supply Module
Compatibility	Cisco Catalyst 9800‑40 / 9800‑80 Wireless Controllers
Power Description
Power Capacity	750 Watt AC
Input Voltage	100 – 240 VAC
Input Frequency	50 – 60 Hz
Output Voltage	12 V DC
Efficiency	Up to ~92 %
Redundancy Support	Yes (1+1 redundant configuration)
Hot‑Swappable	Yes
Cooling & Airflow
Airflow Direction	Reverse airflow (plug‑side intake)
Hardware Specifications
Connector Type	IEC 320‑C14
LED Indicators	Status / Link/Activity LEDs
MTBF	>100,000 hours (typical)
Environmental Conditions
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10 % to 90 % non‑condensing
Dimensions & Weight
Dimensions (HxWxD)	~1.58 × 3.35 × 13.5 in (~40 × 85 × 343 mm)
Weight	Approx. ~1.2–2.5 kg (varies by source)
Safety & Compliance
Certifications	UL, CSA, CE, RoHS
Protection	Standard PSU protections (over‑voltage/current/over‑temp)
Additional Information
Role	Provides AC power and redundancy for Cisco 9800 controllers
Condition	Brand New / New‑old‑stock
Availability	In Stock
Warranty	Typical limited warranty
