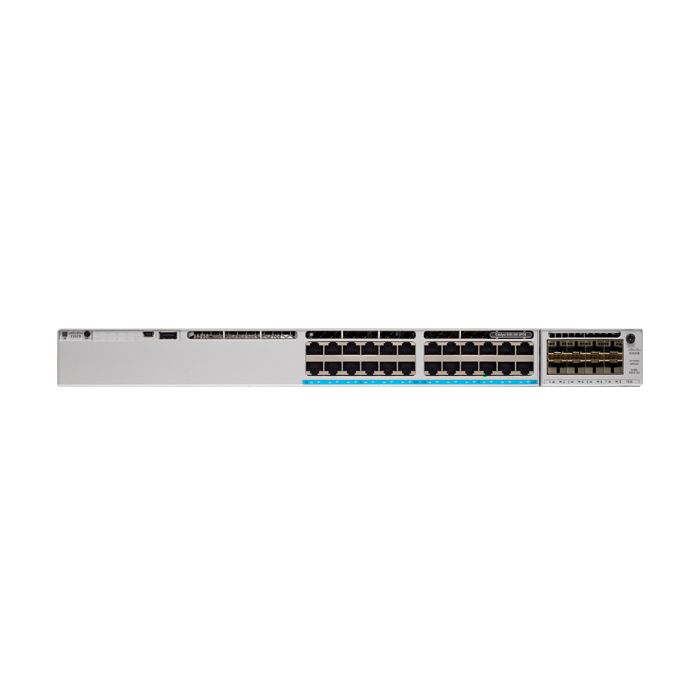

Cisco (C9300-24H-E), CATALYST 9300 24-PORT UPOE+
Part Number:
C9300-24H-E
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Traffic classification | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Configuring Location Settings (CLI) | Yes |
| Cloud-managed | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Virtual LAN features | Port-based VLAN |
| Data transmission | |
| Number of VLANs | 4094 |
| Jumbo frames | 9198 |
| Packet buffer memory | 16 MB |
| MAC address table | 32000 entries |
| Switching capacity | 208 Gbit/s |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Forwarding rate | 154.76 Mpps |
| Performance | |
| Packet buffer memory | 16 MB |
| Stackable | Yes |
| Memory type | DRAM |
| Mean time between failures (MTBF) | 238410 h |
| Internal memory | 8000 MB |
| Flash memory | 16000 MB |
| Technical details | |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | Yes |
| Mean time between failures (MTBF) | 238410 h |
| Rack mounting | Yes |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Routing entries | 16000 |
| Number of VLANs | 4094 |
| IP routing | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Half duplex | Yes |
| Virtual LAN features | Port-based VLAN |
| Security | |
| Authentication | Port-based authentication |
| Security algorithms | 256-bit AES, IPSec |
| Authentication type | RADIUS |
| DHCP features | DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMPv1, v2c, v3 |
| Routing protocols | BGP6, BGP4, EIGRP, IS-IS, OSPF, OSPFv3, RIP-1, RIP-2, RIPng |
| Certificates | |
| Certification | UL 60950-1 CAN/CSA-C222.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 IEEE 802.3 47 CFR Part 15 EN 300 386 V1.6.1 EN 55032 Class A CISPR 32 Class A EN61000-3-2 EN61000-3-3 ICES-003 Class A TCVN 7189 Class A V-3 Class A CISPR 35 EN 300 386 EN 55035 TCVN 7317 V-2/2015.04 V-3/2015.04 CNS13438 KN32 KN35 QCVN 118:2018/BTTTT VCCI-CISPR 32 Class A |
| Memory | |
| Packet buffer memory | 16 MB |
| Memory type | DRAM |
| Internal memory | 8000 MB |
| Flash memory | 16000 MB |
| Design | |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | Yes |
| LED indicators | Yes |
| Certification | UL 60950-1 CAN/CSA-C222.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 IEEE 802.3 47 CFR Part 15 EN 300 386 V1.6.1 EN 55032 Class A CISPR 32 Class A EN61000-3-2 EN61000-3-3 ICES-003 Class A TCVN 7189 Class A V-3 Class A CISPR 35 EN 300 386 EN 55035 TCVN 7317 V-2/2015.04 V-3/2015.04 CNS13438 KN32 KN35 QCVN 118:2018/BTTTT VCCI-CISPR 32 Class A |
| Rack mounting | Yes |
| Number of fans | 3 fan(s) |
| Redundant fans support | Yes |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power supply included | Yes |
| AC input voltage | 115 - 240 V |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 90 W |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -5 - 45 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 3793 BTU/h |
| Weight & dimensions | |
| Width | 444.5 mm |
| Depth | 409 mm |
| Height | 44 mm |
| Weight | 7.54 kg |
| Sustainability | |
| Sustainability compliance | Yes |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Condition | NEW |
|---|---|
| Manufacturer | CISCO |
