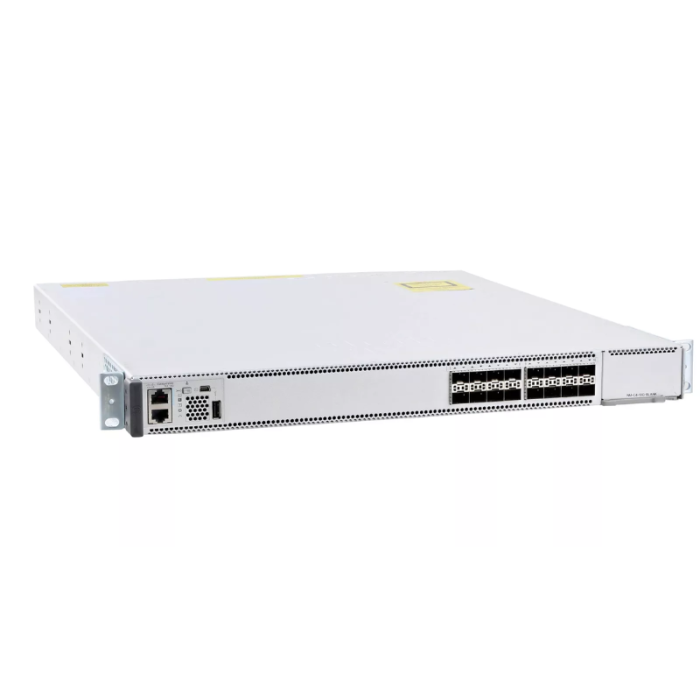

Cisco C9500-16X-2Q-E Cisco CATALYST 9500 16-PORT 10G
Part Number:
C9500-16X-2Q-E
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
PRODUCT OVERVIEW
GENERAL INFORMATION
| Field | Specification |
|---|---|
| Manufacturer | Cisco |
| Manufacturer Part Number | C9500‑16X‑2Q‑E |
| Manufacturer Website | www.cisco.com |
| Product Name | Cisco Catalyst 9500 Series 16‑Port 10G Switch with 2×40G Network Module |
POWER DESCRIPTION
| Field | Specification |
|---|---|
| Power Supply | Redundant, hot‑swappable AC power supplies (optional) |
| Input Voltage | 90–264 VAC |
| Power Consumption | Platform‑dependent (high performance enterprise class) |
INTERFACES & PORTS
| Field | Specification |
|---|---|
| Total Ports | 16 ports |
| Port Type | 16 × 1/10 Gigabit Ethernet (SFP/SFP+) |
| Network Module | 2 × 40 Gigabit Ethernet network module slots |
| Management Ports | 1 × RJ‑45 management, USB port, console |
| StackWise Virtual | Supported (for high availability) |
PERFORMANCE
| Field | Specification |
|---|---|
| Switching Capacity | Up to ~480 Gbps full‑duplex |
| Forwarding Rate | Up to ~360 Mpps |
| DRAM | 16 GB |
| Flash Memory | 16 GB |
| MAC Address Table | Up to ~82,000 entries (platform dependent) |
| VLAN IDs | Up to 4094 |
SOFTWARE
| Field | Specification |
|---|---|
| Network OS | Cisco IOS XE |
| License Level | Network Essentials (E version) |
| Layer Support | Layer 2 & Layer 3 routing |
| Routing Protocols | OSPF, BGP, EIGRP (based on license/features) |
FEATURES
| Field | Specification |
|---|---|
| High Availability | StackWise Virtual, SSO, ISSU support |
| Security | MACsec, TrustSec, Secure Boot |
| QoS | Advanced QoS capabilities |
| Use Case | Enterprise campus core & aggregation |
DIMENSIONS & WEIGHT
| Field | Specification |
|---|---|
| Dimensions (H×W×D) | ~1.73 × 17.5 × 21.5 in (1 RU) |
| Rack Units | 1 RU |
| Weight | ~10.7 kg (platform with dual supplies) |
ENVIRONMENTAL CONDITIONS
| Field | Specification |
|---|---|
| Operating Temperature | 0–40 °C |
| Relative Humidity | 5–90 % non‑condensing |
ADDITIONAL INFORMATION
| Field | Specification |
|---|---|
| Condition | Brand New |
| Availability | In Stock |
| Warranty | Cisco hardware warranty |
| Condition | NEW |
|---|---|
| Manufacturer | CISCO |
