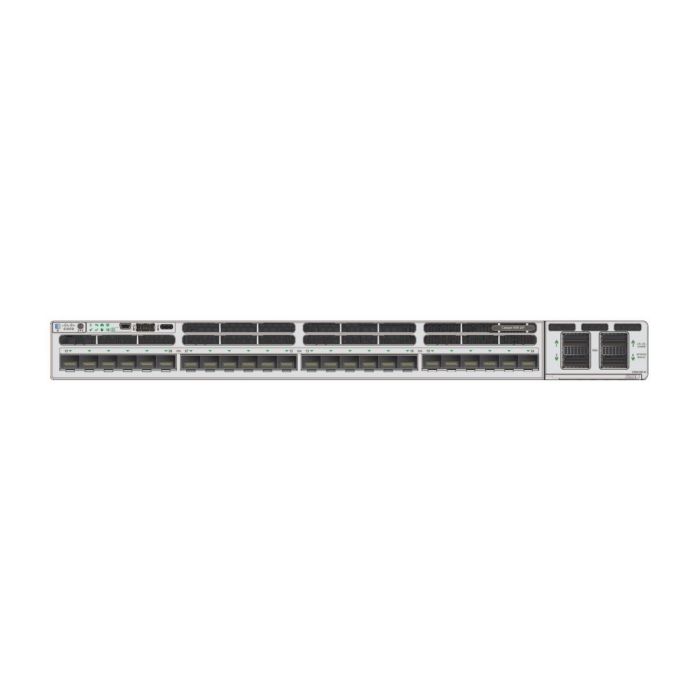

Cisco 9300X Managed L3 1U Catalyst 9300X 24-port mGig UPoE+ switch
Part Number:
C9300X-24HX-M
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Specifications
| Management features | |
|---|---|
| ARP inspection | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| MIB support | Yes |
| Switch layer | L3 |
| Configuring Location Settings (CLI) | Yes |
| Ports & interfaces | |
| Installed SFP modules quantity | 24 |
| Installed SFP+ modules quantity | 0 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| VLAN support | Yes |
| 10G support | Yes |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 9198 |
| Packet buffer memory | 32 MB |
| MAC address table | 32000 entries |
| Switching capacity | 1000 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 1488 Mpps |
| Security | |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Form factor | 1U |
| Stackable | Yes |
| LED indicators | Yes |
| Rack mounting | Yes |
| Performance | |
| Internal memory | 16000 MB |
| Flash memory | 16000 MB |
| Packet buffer memory | 32 MB |
| Stackable | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -5 - 45 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Virtual LAN features | |
| VLAN support | Yes |
| Technical details | |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Memory | |
| Packet buffer memory | 32 MB |
| Internal memory | 16000 MB |
| Flash memory | 16000 MB |
| Indication | |
| LED indicators | Yes |
| Condition | NEW |
|---|---|
| Manufacturer | CISCO |
