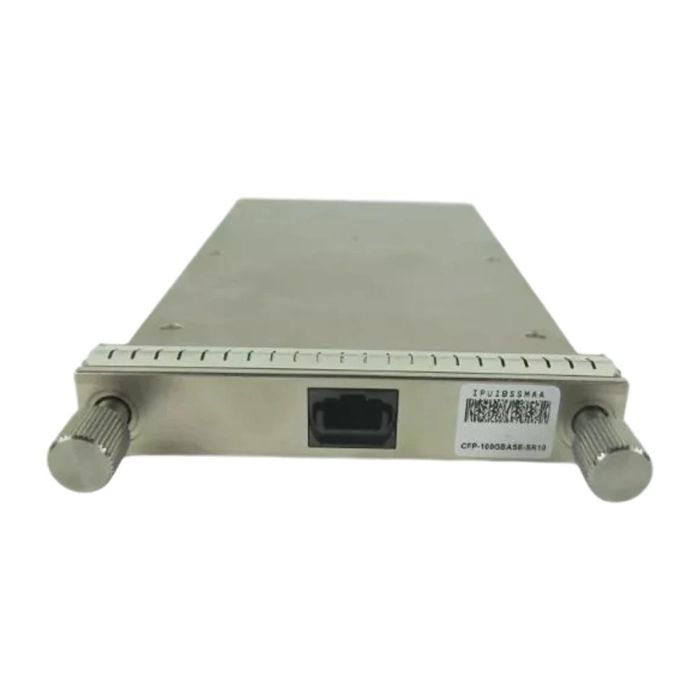

Juniper Networks CFP-100GBASE-SR10 CFP 100G Pluggable Transceiver,100m with OM3 fiber and 150m with OM4 fiber

Juniper Networks CFP-100GBASE-SR10 Cfp 100g Pluggable Transceiver,100m With Om3 Fiber And 150m With Om4 Fiber.

Overview Widely Deployed In Wan, Data Center, And Enterprise Networks, Junipers Portfolio Of Direct-detect And Coherent 100g Optical Transceivers Are Critical In Meeting The Ever-growing Bandwidth Needs Of Network Operators. All Juniper 100g Optics Are Compliant With Key Industry Standards And Specifications For Seamless Interoperability In Multivendor Environments And Qualified For Use Across Acx, Ex, Mx, Ptx, And Qfx Product Families

Specifications

Speed 100 Gigabit Ethernet

Breakout Capable No

Transceiver Type Cfp

Product Type Optical Transceiver

Connector Mpo-24

Standards Compliance (ethernet/otn Standard, For E.g. 100gbase-lr4) Ieee 802.3ba—2010

Signaling Rate, Each Lane 100 Gbps

Transmitter Wavelengths (range) 840 Through 860 Nm

Transmitter Output Power, Each Lane (minimum) –7.6 Dbm

Transmitter Output Power, Each Lane (maximum) 2.4 Dbm

Receiver Input Power, Each Lane (minimum) –9.5 Dbm(om3) , –9.1 Dbm(om4).

Receiver Input Power, Each Lane (maximum) 2.4 Dbm(om3) , 2.4 Dbm(om4).

Cable Type Mmf

Fiber Grade Om3 , Om4

Distance(w) 100 M

Maximum Power Consumption (w) 16 W

Operating Temperature (range) –40° C To 85° C

Storage Temperature –40° C To 85° C

Condition: Used Clean Tested.
Availability: In Stock.
Our Warranty: 90 Days.
