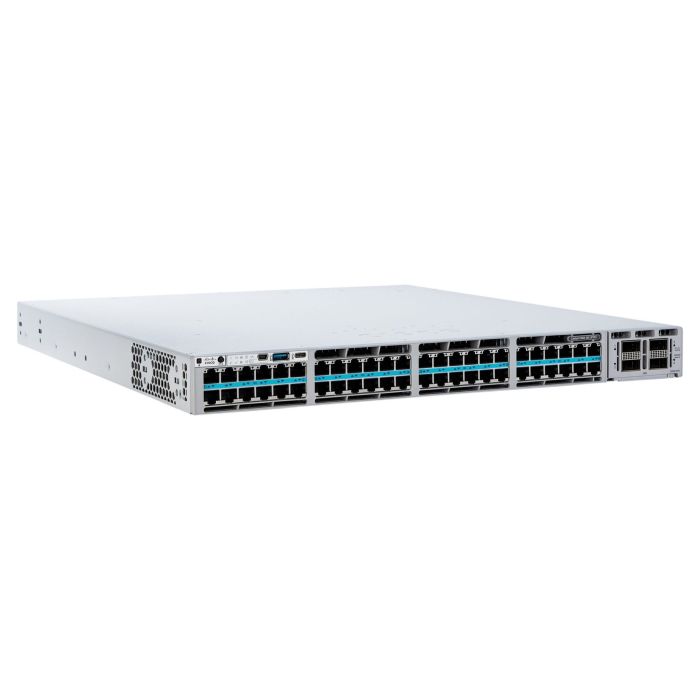

Catalyst 9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, data only, Meraki Advanced or Enterprise

PRODUCT OVERVIEW

GENERAL INFORMATION :

Manufacturer : Cisco
MANUFACTURER Part Number : C9300L-48T-4X-M
MANUFACTURER Website Address : WWW.CISCO.COM

PRODUCT Name : Cisco Catalyst 9300L Series (Meraki) Switch

POWER DESCRIPTION :

Power Supply : Default 350W AC Power Supply (Hot-swappable)
Redundant Power Supply : Supported (Dual PSU)
Power Consumption : ~61W (idle) to ~87W (max)

INPUT SPECIFICATIONS :

Input Voltage : 100–240 VAC
Input Frequency : 50–60 Hz

OUTPUT SPECIFICATIONS :

Switching Capacity : ~176 Gbps
Forwarding Rate : ~130.95 Mpps

PORT INFORMATION :

Total Ports : 48 × 10/100/1000 Gigabit Ethernet (Data Only)
Uplink Ports : 4 × 10G SFP+ (Fixed)
PoE Support : Not Supported

FEATURES :

Layer Support : Layer 3 Managed Switch
Stacking : StackWise-320 Supported (up to ~496 Gbps stacking bandwidth)
Management : Cisco Meraki Cloud Dashboard
Security : 802.1X, MACsec, ACL, Secure Access
Automation : API, NETCONF, RESTCONF, SD-Access ready

INTERFACES & PORTS :

1 × Dedicated Management Port
1 × USB Port
Stacking Ports (Optional via kit)

DIMENSIONS & WEIGHT :

Dimensions (WxDxH) : ~445 × 449 × 44 mm
Weight : ~7.0 kg

ENVIRONMENTAL CONDITIONS :

Operating Temperature : -5 to 45 °C
Relative Humidity : 5–90 % non-condensing

CONDITION : Brand New.

AVAILABILITY : In Stock.

OUR WARRANTY : 1 Year.
