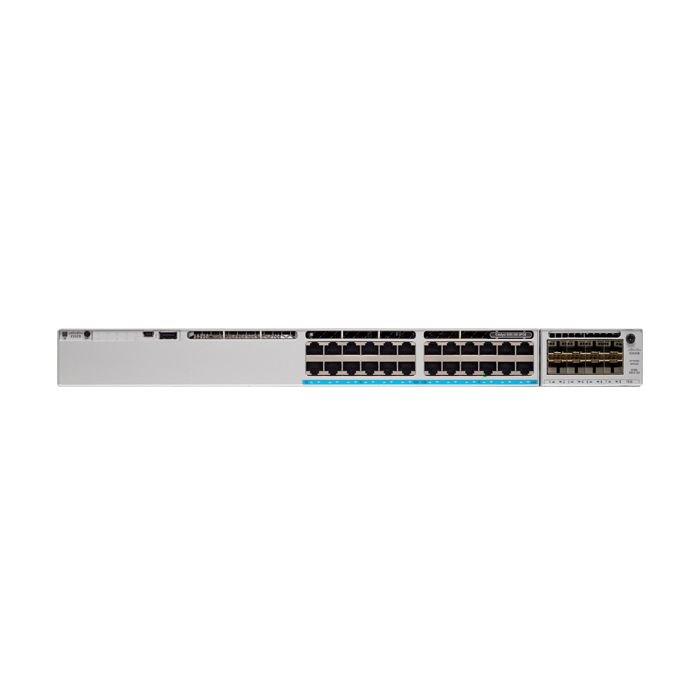

Catalyst 9300 24-port 8XmGig (100M/1G/2.5G/5G/10G) + 16x 10M/100M/1G copper with fixed 4x10G/1G SFP+ uplinks, UPOE, Meraki Advanced or Enterprise

PRODUCT OVERVIEW

GENERAL INFORMATION :

Manufacturer : Cisco
MANUFACTURER Part Number : C9300L-24UXG-4X-M
MANUFACTURER Website Address : WWW.CISCO.COM

PRODUCT Name : Cisco Catalyst 9300L Series (Meraki) Switch

POWER DESCRIPTION :

Power Supply : Default 1100W AC Power Supply (Hot-swappable)
Redundant Power Supply : Supported (Dual PSU)
PoE Capability : UPOE (Up to 60W per port)
PoE Budget : ~880W (up to ~1440W with secondary PSU)
Power Consumption : ~69W (idle) to ~1049W (max)

INPUT SPECIFICATIONS :

Input Voltage : 100–240 VAC
Input Frequency : 50–60 Hz

OUTPUT SPECIFICATIONS :

Switching Capacity : ~272 Gbps
Forwarding Rate : ~202 Mpps+

PORT INFORMATION :

Total Ports : 24 × Ethernet (UPOE)

• 8 × Multigigabit (100M/1G/2.5G/5G/10G)

• 16 × 10/100/1000 Gigabit Ports

Uplink Ports : 4 × 10G SFP+ (Fixed)

FEATURES :

Layer Support : Layer 3 Managed Switch
Stacking : StackWise (up to ~320 Gbps bandwidth)
Management : Cisco Meraki Cloud Dashboard
Security : Advanced Policy, Segmentation & Secure Access
Automation : Cloud-managed, API & SD-Access ready

INTERFACES & PORTS :

1 × Dedicated Management Port
1 × USB Port
Stacking Ports (Dual)

DIMENSIONS & WEIGHT :

Dimensions (WxDxH) : ~445 × 488 × 44 mm
Weight : ~7.1 kg

ENVIRONMENTAL CONDITIONS :

Operating Temperature : -5 to 45 °C
Relative Humidity : 5–90 % non-condensing

CONDITION : Brand New.

AVAILABILITY : In Stock.

OUR WARRANTY : 1 Year.
