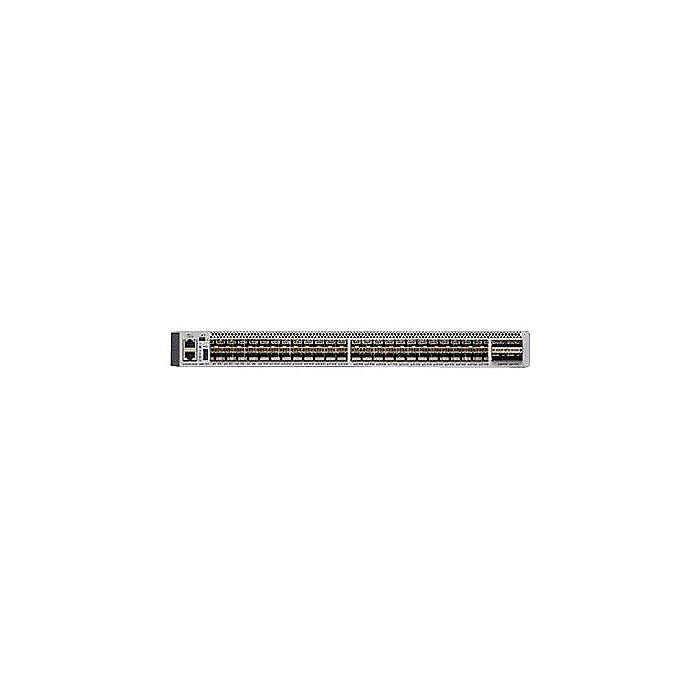

Cisco C9500-48Y4C-A Catalyst 9500 Switch 48 Ports Managed 48x 25 Gigabit SFP28
Part Number:
C9500-48Y4C-A
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Device Type : Switch - 48 Ports - L3 - Managed
Enclosure Type: Rack-mountable 1u
Subtype : 25 Gigabit Ethernet
Ports : 48 X 25 Gigabit Sfp28
Interfaces : 48 X 25gbit Lan Sfp28 ¦ 4 X 100gbit Lan ¦ 2 X Usb 3.0
Performance : Switching Capacity (full Duplex): 3.2 Tbps ¦ Forwarding Rate: 1 Bpps
Capacity : Routing Table Entries: 80000 ¦ Indirect Ipv4 Routes: 212000 ¦ Host Ipv4 Routes: 90000 ¦ Indirect Ipv6 Routes: 212000 ¦ Host Ipv6 Routes: 90000 ¦ Multicast Scale: 32000 ¦ Qos Acl Scale: 16000 ¦ Security Acl Scale: 270000 ¦ Fnf Entries: 96000 ¦ Vlan Ids: 4000 ¦ Switched Virtual Interfaces (svis): 4000
Mac Address Table Size : 64k Entries
Jumbo Frame Support : 9198 Bytes
Routing Protocol : Ospf, Is-is, Rip-2, Bgp, Eigrp, Igmp, Vrrp, Pim-sm, Pim-ssm, Msdp, Ripng, Mpls
Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Snmp, Snmp 3, Snmp 2c, Tftp, Netconf, Restconf
Features : Dhcp Support, Nat Support, Pat Support, Trunking, Mpls Support, Non-stop Forwarding (nsf), Stateful Switchover (sso), Class-based Weighted Fair Queuing (cbwfq), Weighted Random Early Detection (wred), Spanning Tree Protocol (stp) Support, Virtual Route Redundancy Protocol (vrrp) Support, Access Control List (acl) Support, Quality Of Service (qos), Non-stop Routing (nsr), Remote Switch Port Analyzer (rspan), Hot Standby Router Protocol (hsrp) Support, Virtual Routing And Forwarding (vrf), Maximum Likelihood Demodulation (mld), Flexible Netflow (fnf), Multicast Source Discovery Protocol (msdp), Macsec Support, Control Plane Protection (copp), Integrated Wireshark, Vlan Double Tagging (q-in-q), Ethernet Over Mpls (eompls), Hierarchical Virtual Private Lan Service (h-vpls), Private Vlan, Layer 3 Vpn (l3vpn) Support, Coap Support, Switched Port Analyzer (span)
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1ae, Ieee 802.3ba
Power : Ac 120/230 V (50 - 60 Hz)
Power Redundancy : Optional
Dimensions (wxdxh) : 17.5 In X 18 In X 1.7 In
Weight : 21.96 Lbs
Condition : New Factory Sealed.
Availability: In Stock.
Mfg Warranty: None.
Our Warranty: 90 Days.
CISCO - Catalyst 9500 Network Advantage - Switch - 48 Ports - Managed - 48 X 25 Gigabit Sfp28 - Rack-mountable.
Specifications:
Condition : New Factory Sealed.
Availability: In Stock.
Mfg Warranty: None.
Our Warranty: 90 Days.
| Capacity | 48 PORT |
|---|---|
| Condition | New Factory Sealed |
| Manufacturer | CISCO |
