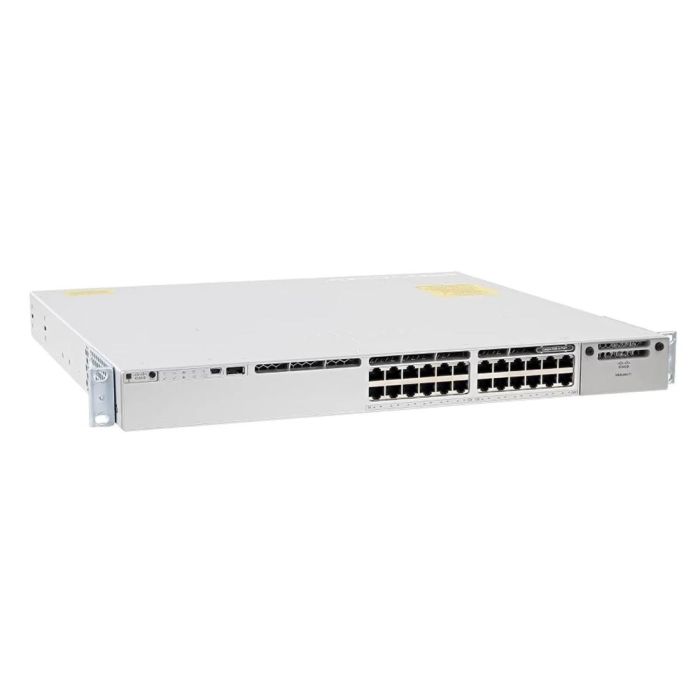

Cisco C9300X-24HX-E Catalyst 9300X - Network Essentials switch 24 ports UPOE+
Part Number:
C9300X-24HX-E
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Description : CISCO Catalyst 9300x Network Essentials Switch 24 Ports Managed Rack-mountable
Device Type : Switch 24 Ports L3 Managed Stackable
Enclosure Type: Rack-mountable
Subtype : 10 Gigabit Ethernet
Ports : 24 X 100/1000/2.5g/5g/10gbase-t (upoe+)
Power Over Ethernet (poe): Upoe+
Performance: Switching Capacity: 880 Gbps ¦ Switching Capacity With Stacking: 1880 Gbps ¦ Forwarding Rate: 327.38 Mpps ¦ Forwarding Rate With Stacking: 1398.8 Mpps
Capacity: Ipv4 Routing Table Entries: 39000 ¦ Multicast Routes: 8000 ¦ Qos Scale Entries: 4000 ¦ Acl Scale Entries: 8000 ¦ Ipv6 Routing Table Entries: 19500 ¦ Packet Buffer Size: 16 Mb ¦ Fnf Entries: 64000 ¦ Vlan Ids: 4094 ¦ Switched Virtual Interfaces (svis): 1000
Mac Address Table Size : 32000 Entries
Jumbo Frame Support : 9198 Bytes
Routing Protocol : Rip, Rip-1, Rip-2, Vrrp, Pim-sm, Static Ip Routing, Gre, Pim-ssm, Policy-based Routing (pbr), Ripng, Mstp, Stp, Lisp
Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Snmp 3, Snmp 2c, Http, Cli, Netconf, Restconf, Grpc, Yang
Expansion / Connectivity :
Interfaces : 24 X 100/1000/2.5g/5g/10gbase-t Rj-45 Upoe+ - 90 W ¦ 1 X Usb 2.0
Expansion Slots : 1 (total) / 1 (free) X Expansion Slot
Power :
Power Device : Internal Power Supply Hot-plug
Installed Qty : 1
Max Supported Qty : 2
Power Redundancy : Optional
Power Provided : 1100 Watt
Voltage Required : Ac 115-240 V (50 - 60 Hz)
Condition: New Factory Sealed.
Availability: Call.
Our Warranty: 90 Days.
CISCO C9300X-24HX-E Catalyst 9300x - Network Essentials Switch 24 Ports Managed Rack-mountable.
Specifications :
Expansion / Connectivity :
Power :
Condition: New Factory Sealed.
Availability: Call.
Our Warranty: 90 Days.
| Capacity | 24 PORT |
|---|---|
| Condition | New Factory Sealed |
| Manufacturer | CISCO |
