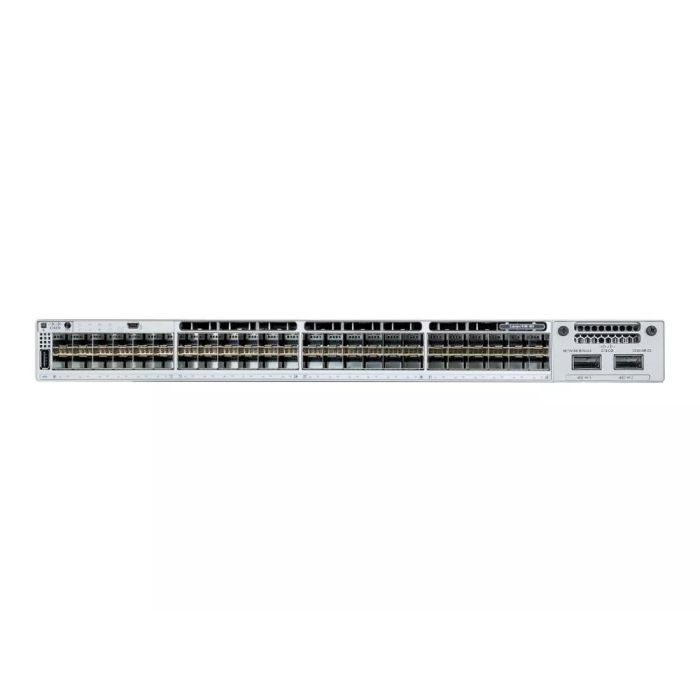

Cisco C9300L-48UXG-2Q-E Catalyst 9300 Series Fixed Uplink Switch
Part Number:
C9300L-48UXG-2Q-E
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Device Type : Switch - 48 Ports - L3 - Managed - Stackable
Enclosure Type : Rack-mountable
Subtype : Gigabit Ethernet
Ports : 36 X 10/100/1000 (upoe) + 2 X 40gb Ethernet + 12 X 1/2.5/5/10gbase-t
Power Over Ethernet (poe) : Upoe
Poe Budget : 675 W
Performance : Switching Capacity: 472 Gbps ¦ Switching Capacity With Stacking: 792 Gbps ¦ Forwarding Rate: 351.19 Mpps ¦ Forwarding Rate With Stacking: 589.28 Mpps
Capacity : Ipv4 Routes: 32000 ¦ Ipv6 Routes: 16000 ¦ Multicast Scale: 8000 ¦ Qos Scale Entries: 5120 ¦ Acl Scale Entries: 5120 ¦ Vlans Supported: 4094 ¦ Switched Virtual Interfaces (svis): 1000 ¦ Packet Buffer Size: 16 Mb
Mac Address Table Size : 32000 Entries
Jumbo Frame Support : 9198 Bytes
Routing Protocol : Ospf, Rip-1, Rip-2, Eigrp, Vrrp, Pim-sm, Eigrp For Ipv6, Ospfv3, Pim-ssm, Policy-based Routing (pbr), Ripng, Mstp
Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Snmp 3, Snmp 2c, Cli, Netconf, Restconf, Grpc, Ipv4, Ipv6, Yang
Encryption Algorithm : 128-bit Aes, 256-bit Aes
Features : Access Control List (acl) Support, Quality Of Service (qos), Rapid Per-vlan Spanning Tree Plus (pvrst+), Shaped Round Robin (srr), Pxe Support, Energy Efficient Ethernet, Class Of Service (cos), Flexible Netflow (fnf), 802.1x Authentication, Diffserv Code Point (dscp) Support, Macsec Support, Control Plane Protection (copp), Blue Beacon Led, Zero-touch Provisioning (ztp), Secure Boot, Protocol Independent Multicast (pim), First Hop Security (fhs), Pvlan Support, Committed Information Rate (cir), CISCO Trust Anchor Module, CISCO Unified Access Data Plane (uadp) 2.0, CISCO Stackwise-320 Technology
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ae, Ieee 1588v2, Ieee 802.1ba, Ieee 802.3bt, Wi-fi Certified 6
Ram : 8 Gb
Flash Memory : 16 Gb
Status Indicators : Status
Expansion / Connectivity :
Interfaces :
36 X 1000base-t Rj-45 60 W
12 X 1/2.5/5/10gbase-t Rj-45
2 X 40gbit Lan Uplink
1 X Network Stack Device
1 X Management (lan) Rj-45
1 X Console
1 X Usb 2.0
Power :
Power Device : Internal Power Supply - Hot-plug
Installed Qty : 1
Max Supported Qty : 2
Power Redundancy : Optional
Power Provided : 1100 Watt
Voltage Required : Ac 120/230 V (50 - 60 Hz)
Condition : Refurbished
Availability : In Stock
Our Warranty : 90 Days
CISCO C9300L-48UXG-2Q-E Catalyst 9300l - Network Essentials - Switch - L3 - Managed - 36 X 10/100/1000 (upoe) + 2 X 40gb Ethernet + 12 X 1/2.5/5/10gbase-t - Rack-mountable - Upoe (675 W).
Key Features :
Expansion / Connectivity :
Interfaces :
Power :
Condition : Refurbished
Availability : In Stock
Our Warranty : 90 Days
| Capacity | 48 PORT |
|---|---|
| Condition | Refurbished |
| Manufacturer | CISCO |
