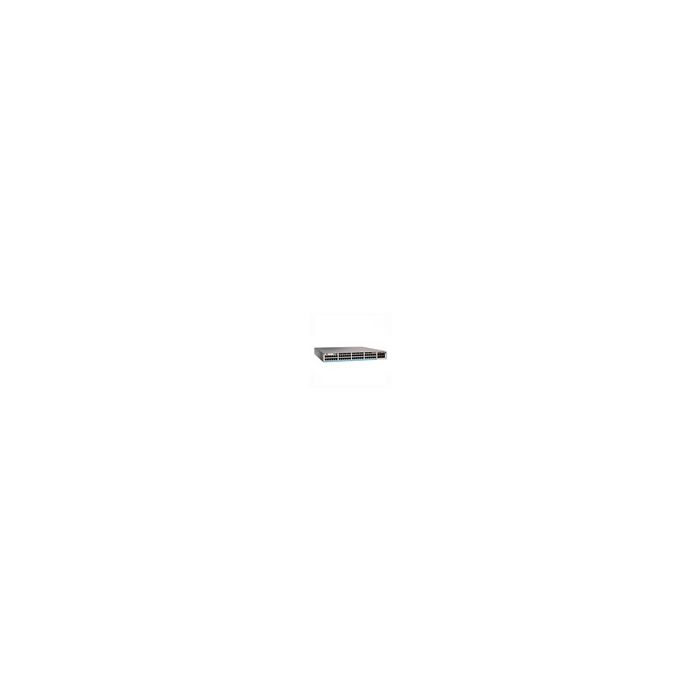

Cisco C9300-48UB-A Catalyst 9300 Series mGig Modular Uplink Switch
Part Number:
C9300-48UB-A
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Device Type : Switch - 48 Ports - L3 - Managed - Stackable
Enclosure Type : Rack-mountable 1u
Subtype : Gigabit Ethernet
Ports : 48 X 10/100/1000 (upoe)
Power Over Ethernet (poe) : Upoe
Poe Budget : 822 W
Performance : Switching Capacity: 256 Gbps ¦ Stacking Bandwidth: 480 Gbps ¦ Switching Capacity With Stacking: 736 Gbps ¦ Forwarding Rate: 190.48 Mpps ¦ Forwarding Rate With Stacking: 547.62 Mpps
Capacity : Ipv4 Routing Table Entries: 64000 ¦ Ipv6 Routing Table Entries: 32000 ¦ Flexible Netflow Entries: 128000 ¦ Vlan Ids: 4000 ¦ Switched Virtual Interfaces (svis): 1000 ¦ Packet Buffer Size: 32 Mb
Mac Address Table Size : 32000 Entries
Jumbo Frame Support : 9198 Bytes
Routing Protocol : Ospf, Is-is, Rip-1, Rip-2, Bgp, Eigrp, Hsrp, Igmp, Vrrp, Pim-sm, Ospfv3, Pim-ssm, Bidirectional Pim, Msdp, Policy-based Routing (pbr), Ripng, Mpls
Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Snmp 3, Snmp 2c, Cli, Netconf, Restconf
Encryption Algorithm : 128-bit Aes
Features : Trunking, Full Duplex Mode, Nsf, Wred, Stp Support, Acl Support, Qos, Rspan, Mib, Vrf, CISCO Stackwise-480 Technology, CISCO Stackpower Technology, Fnf, 802.1x Authentication, Ftp Client, Ptp, Macsec Support, 3 Fans, Vtep Support, Copp, Lisp, Ssm, Integrated Wireshark, Vlan Double Tagging (q-in-q), Private Vlan, Coap Support, Sgt Caching, Avb, Gir Mode
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.3at
Ram : 8 Gb
Flash Memory : 16 Gb
Status Indicators : Status
Expansion / Connectivity:
Interfaces : 48 X 1000base-t Rj-45 Upoe ¦ 1 X Usb 2.0
Expansion Slots : 1 (total) / 1 (free) X Expansion Slot
Power:
Power Device : Internal Power Supply - Hot-plug
Installed Qty : 1
Max Supported Qty : 2
Power Redundancy : Optional
Power Provided : 1100 Watt
Voltage Required : Ac 120/230 V (50 - 60 Hz)
Condition : Refurbished
Availability : In Stock
Our Warranty : 90 Days
CISCO C9300-48UB-A Catalyst 9300 (higher Scale) - Network Advantage - Switch - L3 - Managed - 48 X 10/100/1000 (upoe) - Rack-mountable - Upoe (822 W).
General Information:
Expansion / Connectivity:
Power:
Condition : Refurbished
Availability : In Stock
Our Warranty : 90 Days
| Capacity | 48 PORT |
|---|---|
| Condition | Refurbished |
| Manufacturer | CISCO |
