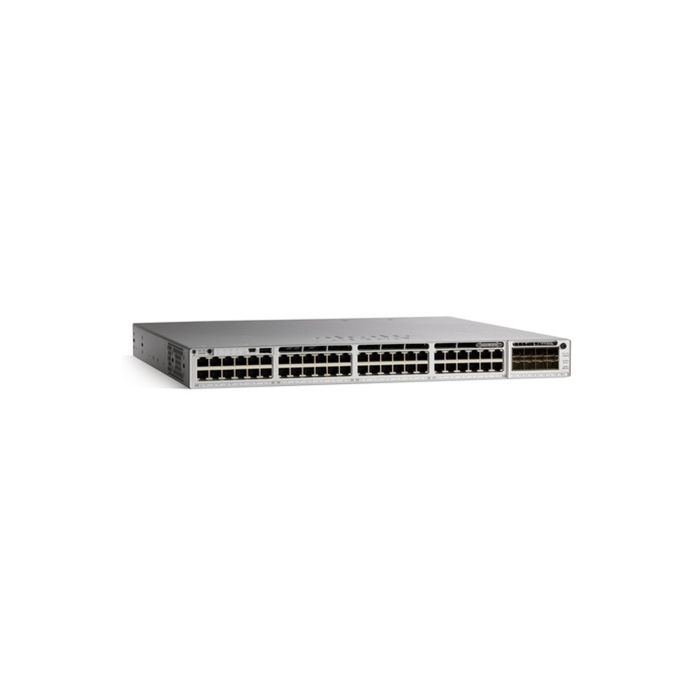

Cisco C9300-48U-A Catalyst 9300 Network Advantage switch L3 48GE UPOE
Part Number:
C9300-48U-A
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Description : CISCO Catalyst 9300 - Network Advantage - Switch - 48 Ports - Managed - Rack-mountable
Device Type : Switch - 48 Ports - L3 - Managed - Stackable
Enclosure Type: Rack-mountable 1u
Subtype : Gigabit Ethernet
Ports : 48 X 10/100/1000 (upoe)
Interfaces : 48 X 1/2.5/5gbase-t Rj-45 Upoe ¦ 1 X Usb 2.0
Expansion Slots: 1 (total) / 1 (free) X Expansion Slot
Power Over Ethernet (poe): Upoe
Poe Budget : 822 W
Performance : Switching Capacity: 128 Gbps ¦ Stacking Bandwidth: 480 Gbps ¦ Forwarding Rate: 190.48 Mpps
Capacity : Ipv4 Routing Table Entries: 32000 ¦ Ipv6 Routing Table Entries: 16000 ¦ Flexible Netflow Entries: 64000 ¦ Vlan Ids: 4000 ¦ Switched Virtual Interfaces (svis): 2000
Mac Address Table Size: 32000 Entries
Jumbo Frame Support: 9198 Bytes
Routing Protocol: Ospf, Is-is, Rip-1, Rip-2, Bgp, Eigrp, Hsrp, Igmp, Vrrp, Pim-sm, Ospfv3, Pim-ssm, Msdp, Policy-based Routing (pbr), Ripng
Remote Management Protocol: Snmp 1, Rmon 1, Rmon 2, Snmp 3, Snmp 2c, Cli, Netconf, Restconf
Features: Dhcp Support, Trunking, Syslog Support, Full Duplex Mode, Stateful Switchover (sso), Class-based Weighted Fair Queuing (cbwfq), Weighted Random Early Detection (wred), Spanning Tree Protocol (stp) Support, Access Control List (acl) Support, Quality Of Service (qos), Non-stop Routing (nsr), Remote Switch Port Analyzer (rspan), Management Information Base (mib), CISCO Stackwise-480 Technology, CISCO Stackpower Technology, Flexible Netflow (fnf), Multicast Source Discovery Protocol (msdp), 802.1x Authentication, 16mb Packet Buffer, Ftp Client, Macsec Support, 3 Fans, Control Plane Protection (copp), Virtual Extensible Lan (vxlan), Application Visibility And Control (avc), Source-specific Multicast (ssm), Integrated Wireshark, Vlan Double Tagging (q-in-q), Ethernet Over Mpls (eompls), Hierarchical Virtual Private Lan Service (h-vpls), Private Vlan, Layer 3 Vpn (l3vpn) Support, Encapsulated Remote Span (erspan), Security Group Tag (sgt) Caching, Security Group Access Control List (sgacl), It Service Management (itsm) Integration, Third-party Ip Address Management (ipam) Integration
Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.3at
Power Device : Internal Power Supply - Hot-plug
Installed Qty: 1
Max Supported Qty: 2
Power Redundancy: Optional
Power Provided: 1100 Watt
Voltage Required: Ac 120/230 V (50 - 60 Hz)
Dimensions (wxdxh): 17.5 In X 17.5 In X 1.7 In
Weight : 17.02 Lbs
Condition : New Factory Sealed.
Availability: In Stock.
Mfg Warranty: None.
Our Warranty: 90 Days.
CISCO C9300-48U-A Catalyst 9300 - Network Advantage - Switch - 48 Ports - Managed - 48 X 10/100/1000 (upoe) - Rack-mountable.
Specifications:
Condition : New Factory Sealed.
Availability: In Stock.
Mfg Warranty: None.
Our Warranty: 90 Days.
| Capacity | 48 PORT |
|---|---|
| Condition | New Factory Sealed |
| Manufacturer | CISCO |
