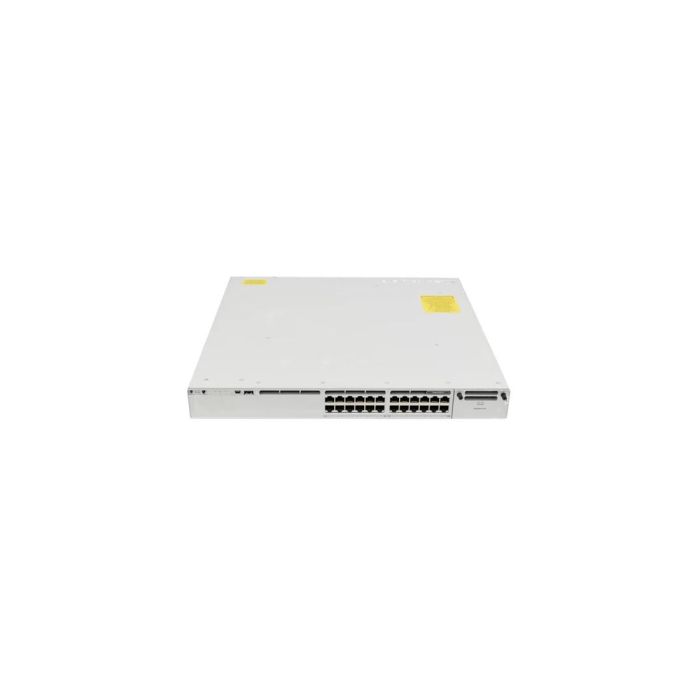

Cisco C9300-24T-A Catalyst 9300 Managed L3 Switch 24 Ethernet Ports Ref

| Product Overview

CISCO Catalyst 9300 Series Switches Are Leading Stackable Enterprise Switch.

This Platform Designed For Security, Iot, Mobility, And Cloud. They Are The Most Widely Used Next-generation Switching Platforms In Industry. Catalyst 9300 Series Switches Form The Foundation For Software-defined Access (sd-access), CISCO Leading Enterprise Architecture. 480gbit/s, It Is The Highest Stacking Bandwidth And Most Flexible Uplink Architecture Solution. The Catalyst 9300 Series Is The First Platform Optimized For High-density 802.11ac Wave2. It Hit A New High In Network Size. With X86 Cpu Architecture And More Memory, These Switches Are Also Future-proof, Allowing Them To Host Containers On The Switch And Run Third-party Applications And Scripts Natively.

Designed For CISCO Stackwise Technology, The Catalyst 9300 Series Offers Flexible Deployment And Supports Nonstop Forwarding With Stateful Switching (nsf/sso), Resulting In The Most Robust Architecture (sub-50ms) In A Stackable Solution. A Highly Resilient And Efficient Power Architecture Featuring CISCO Stackpower Provides High-density CISCO Universal Power Over Ethernet (CISCO Upoe) And Power Over Ethernet+ (poe+) Ports. Based On The CISCO Unified Access Data Plane 2.0 (uadp) 2.0 Architecture, These Switches Protect Your Investment While Enabling Greater Scale And Throughput. CISCO Offers Ios As A Modern Operating System With Programmability.


Specifications

Part Number : C9300-24T-A ,

Network Ports : 24x 1 Gigabit Ethernet Rj-45

Product Family : catalyst 9300 Series

Management Ports : 1x Management Console Rj-45, 1x Management Console Rj-45, 1x Usb 3.0 Ssd

Stacking Ports : 2x Stackwise 480 Ports (480 Gbps Stacking Bandwidth), 2x Stackpower Ports - Cables
Sold Separately - Cable Options Are Stack-t1-50cm, Stack-t1-1m, Stack-t1-3m, Cab-spwr-30cm, Cab-
Spwr-150cm

Module Slots And Options : 1x Expansion Module Slot - Modules Are Not Included

Expansion Module Options : C9300-nm-4g, C9300-nm-8x, C9300-nm-2q, C9300-nm-4m, C9300-nm-2y - Please Note - Existing 3850 Network Modules Are Also Supported In The CISCO Catalyst 9300 Series Platforms.

Fan Modules Airflow Direction : 3x Fan-t2 Field Replaceable Fan Modules Included

Power Supplies Included : 1x Pwr-c1-350wac Power Supply Included - 2x Slots - Options For 2nd Psu Are - Pwr-c1-350wac, Pwr-c1-715wac, Pwr-c1-1100wac

Switching Capacity : 208 Gbps (688 Gbps With Stacking)

Forwarding Rate : 154.76 Mpps (511.90 Mpps With Stacking)

Mac Address Table Size : 32,000

Stack Members : Up To Eight switches Can Be Connected In The Stack | Supported Stack Members = Other C9300 Skus With Same License Level - C9300 Higher Scale Skus Only Stack With Other Like Higher Scale Models

Rack Mounts : Included (1-ru)

Flash Memory : 16 Gb

Power Device : Internal Power Supply - Hot-plug

Power Provided : 350 Watt

Os Required : CISCO Ios Universal

Condition : Refurbished.
Availability : In Stock.
Our Warranty : 90 Days.
