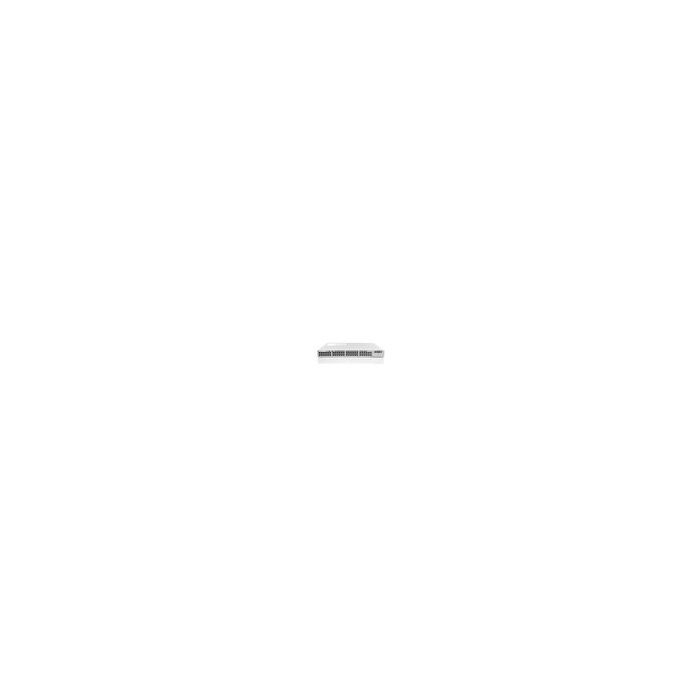

CISCO C9200-48PXG-E Catalyst 9200 48-port 8xmGig PoE+ Switch
Part Number:
C9200-48PXG-E
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Device Type : Switch - 48 Ports - L3 - Smart - Stackable
Enclosure Type : Rack-mountable
Subtype : Gigabit Ethernet
Ports : 40 X 10/100/1000 (poe+) + 8 X 100/1000/2.5g/5g/10gbase-t
Power Over Ethernet (poe) : Poe+
Poe Budget : 740 W
Performance : Stacking Bandwidth: 160 Gbps , Switching Bandwidth: 400 Gbps , Switching Capacity With Stacking: 580 Gbps , Forwarding Rate: 297.61 Mpps , Forwarding Rate With Stacking: 431 Mpps
Capacity : Qos Scale Entries: 1000 , Acl Scale Entries: 1600 , Ipv4 Routing Table Entries: 4000 , Ipv6 Routing Table Entries: 2000 , Packet Buffer Size: 6 Mb , Vlan Ids: 4096 , Switched Virtual Interfaces (svis): 1000 , Flexible Netflow Entries: 16000
Mac Address Table Size : 32000 Entries
Jumbo Frame Support : 9198 Bytes
Routing Protocol : Ospf, Rip, Is-is, Rip-1, Rip-2, Eigrp, Hsrp, Vrrp, Pim-sm, Eigrp For Ipv6, Ospfv3, Pim-ssm, Msdp, Policy-based Routing (pbr), Ripng, Mstp
Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Snmp 3, Snmp 2c, Cli, Netconf, Restconf
Encryption Algorithm : 128-bit Aes
Features : Arp Support, Stp Support, Qos, Rapid Pvst+, Srr, Pxe Support, Rspan, Energy Efficient Ethernet, Mib, Cos, Fnf, CISCO Stackwise-160 Technology, Dscp Support, Macsec Support, Copp, Span, Eem, Pim, Fhs, Pvlan Support, Cir
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.3at, Ieee 802.3bz
Ram : 4 Gb
Flash Memory : 4 Gb
Built-in Devices : Rfid Tag
Expansion / Connectivity :
Interfaces :
40 X 10/100/1000 Base-t Rj-45 Poe+ - 30 W
8 X 100/1000/2.5g/5g/10gbase-t Rj-45
1 X Management (lan) Rj-45
1 X Console Rj-45
1 X Network Stack Device
Expansion Slots :
1 (total) / 1 (free) X Expansion Slot
Power :
Power Device : Internal Power Supply - Hot-plug
Max Supported Qty : 2
Power Redundancy : Optional
Power Provided : 1000 Watt
Voltage Required : Ac 100-240 V (50 - 60 Hz)
Condition : New Factory Sealed
Availability : In Stock
Our Warranty : 90 Days
CISCO C9200-48PXG-E Catalyst 9200 - Network Essentials - Switch - L3 - Smart - 40 X 10/100/1000 (poe+) + 8 X 100/1000/2.5g/5g/10gbase-t - Rack-mountable - Poe+ (740 W).
Key Features :
Expansion / Connectivity :
Interfaces :
Expansion Slots :
Power :
Condition : New Factory Sealed
Availability : In Stock
Our Warranty : 90 Days
| Capacity | 48 PORT |
|---|---|
| Condition | New Factory Sealed |
| Manufacturer | CISCO |
