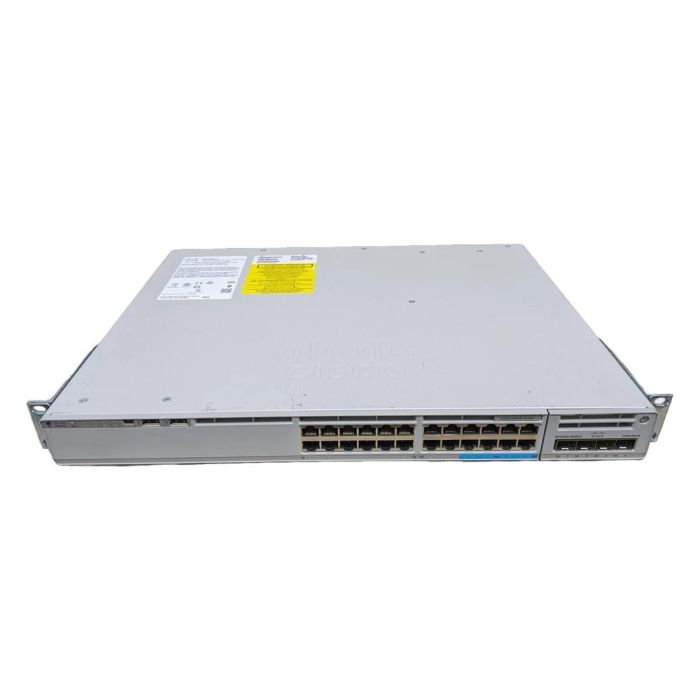

Cisco C9200-24PXG-E Catalyst 9200 24-port 8xmGig PoE+ Network Essentials Switch F/S
Part Number:
C9200-24PXG-E
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Device Type : Switch - 24 Ports - L3 - Managed - Stackable
Enclosure Type : Rack-mountable
Subtype : Gigabit Ethernet
Ports : 8 X 100/1000/2.5g/5g/10gbase-t + 16 X 10/100/1000 (poe+)
Power Over Ethernet (poe) : Poe+
Poe Budget : 370 W
Performance : Stacking Bandwidth: 80 Gbps ¦ Switching Capacity: 272 Gbps ¦ Switching Capacity With Stacking: 352 Gbps ¦ Forwarding Rate: 214.28 Mpps
Capacity : Virtual Networks: 1 ¦ Ipv4 Routes: 11000 ¦ Ipv4 Routing Table Entries: 3000 ¦ Ipv6 Routing Table Entries: 1500 ¦ Multicast Scale: 1000 ¦ Acl Scale Entries: 1500 ¦ Fnf Entries: 16000 ¦ Vlans Supported: 1024 ¦ Switched Virtual Interfaces (svis): 512 ¦ Qos Hardware Queues Per Port: 8 ¦ Packet Buffer Size: 6 Mb
Mac Address Table Size : 16000 Entries
Jumbo Frame Support : 9198 Bytes
Routing Protocol : Ospf, Rip, Is-is, Rip-1, Rip-2, Eigrp, Hsrp, Vrrp, Pim-sm, Eigrp For Ipv6, Ospfv3, Pim-ssm, Msdp, Policy-based Routing (pbr), Ripng, Mstp
Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Snmp 3, Snmp 2c, Cli, Netconf, Restconf, Ipv4, Ipv6, Yang
Encryption Algorithm : 128-bit Aes
Features : Arp Support, Spanning Tree Protocol (stp) Support, Quality Of Service (qos), Rapid Per-vlan Spanning Tree Plus (pvrst+), Shaped Round Robin (srr), Pxe Support, Remote Switch Port Analyzer (rspan), Energy Efficient Ethernet, Management Information Base (mib), Virtual Routing And Forwarding (vrf), Class Of Service (cos), Flexible Netflow (fnf), Diffserv Code Point (dscp) Support, Macsec Support, Control Plane Protection (copp), Virtual Extensible Lan (vxlan), Location Id Separation Protocol (lisp), Switched Port Analyzer (span), Security Group Tag (sgt) Caching, Embedded Event Manager (eem), Protocol Independent Multicast (pim), First Hop Security (fhs), Pvlan Support, Committed Information Rate (cir), CISCO Stackwise-80 Technology
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3bz
Ram : 2 Gb
Flash Memory : 4 Gb
Expansion / Connectivity :
Interfaces :
8 X 100/1000/2.5g/5g/10gbase-t Rj-45
16 X 1000base-t Rj-45 Poe+
1 X Network Stack Device
1 X Management (lan) Rj-45
1 X Console Rj-45
Power :
Power Device : Internal Power Supply - Hot-plug
Max Supported Qty : 2
Power Redundancy : Optional
Voltage Required : Ac 100-240 V (50 - 60 Hz)
Condition : Refurbished
Availability : In Stock
Our Warranty : 90 Days
CISCO C9200-24PXG-E Catalyst 9200 - Network Essentials - Switch - 24 Ports - 8xmgig, 16x1g, Poe+ - Managed - Rack-mountable :
Key Features :
Expansion / Connectivity :
Interfaces :
Power :
Condition : Refurbished
Availability : In Stock
Our Warranty : 90 Days
| Capacity | 24 PORT |
|---|---|
| Condition | Refurbished |
| Manufacturer | CISCO |
