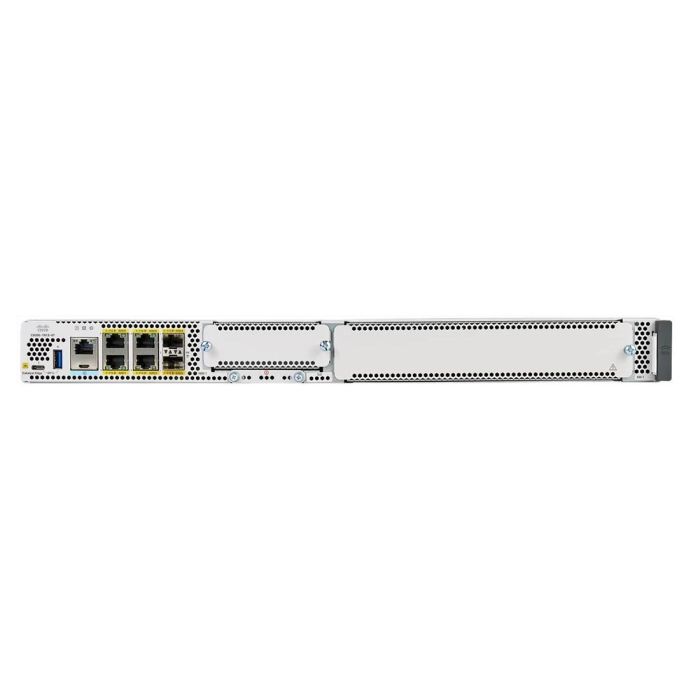

Cisco C8300-1N1S-6T Catalyst Router
Part Number:
C8300-1N1S-6T
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Device Type : Router
Enclosure Type : Rack-mountable - 1u
Connectivity Technology : Wired
Data Link Protocol : Gigabit Ethernet
Performance : Vpn Throughput (imix Ipsec): 5 Gbps ¦ Vpn Throughput (1400 B Ipsec): 1.9 Gbps ¦ Ipv4 Forwarding Throughput (1400-byte Packet Size): 19.7 Gbps
Capacity : Maximum Overlay Tunnels: 6000 ¦ Acl: 4000 ¦ Access Control Entries (aces) Per System (ipv4): 72000 ¦ Ipv4 Routes: 1600000 ¦ Ipv6 Routes: 1500000 ¦ Queues: 16000 ¦ Nat Sessions: 1200000 ¦ Firewall Sessions: 512000 ¦ Virtual Routing And Forwarding (vrf) Entries: 4000
Network / Transport Protocol : Rsvp, Ntp, Ipsec, Pppoe, Dhcp, Dns, L2tpv3, Rtcp
Routing Protocol : Ospf, Rip, Is-is, Rip-2, Bgp, Eigrp, Hsrp, Dvmrp, Vrrp, Igmpv3, Gre, Ospfv3, Policy-based Routing (pbr), Mpls, Bidirectional Forwarding Detection (bfd)
Remote Management Protocol : Snmp, Scp, Omp
Encryption Algorithm : Des, Triple Des, Md5, Ike, Tls, Sha-1, Pki, 128-bit Aes, Sha-2, 1024-bit Rsa, 2048-bit Rsa, 256-bit Sha, 256-bit Aes-gcm, 256-bit Aes-cbc, 512-bit Sha, Esp, 748-bit Rsa, 384-bit Sha, Ecdsa 256-bit, Ecdsa 384-bit, Hmac
Authentication Method : Secure Shell (ssh), Radius
Features : Nat Support, Pat Support, Syslog Support, Url Filtering, Class-based Weighted Fair Queuing (cbwfq), Weighted Random Early Detection (wred), Access Control List (acl) Support, Quality Of Service (qos), Dhcp Server, Bidirectional Forwarding Detection (bfd), Dhcp Client, Forward Error Correction (fec), Class Of Service (cos), Call Admission Control (cac), Flexible Netflow (fnf), Application Visibility And Control (avc), Source-specific Multicast (ssm), Authentication, Authorization And Accounting (aaa), Hierarchical Quality Of Service (hqos), Encapsulated Remote Span (erspan), Embedded Event Manager (eem), Protocol Independent Multicast (pim), Ethernet Virtual Connections (evc), CISCO Ios Ip Service-level Agreements (ipsla), Network-based Application Recognition (nbar), Datagram Transport Layer Security (dtls), Point-to-point Protocol (ppp), High-level Data Link Control (hdlc), Multilink Point-to-point Protocol (mlppp), Multilink Frame Relay (mlfr), Application Aware Routing (aar), Interactive Voice Response (ivr), Service Advertisement Framework (saf)
Compliant Standards : Ieee 802.1q, Ieee 802.3ah, Ieee 802.1ag, En 61000-3-2, Iec 61000-3-2, Iec 61000-3-3, En 61000-3-3, En55024, En 61000-6-1, As/nzs 60950-1, Ices-003 Class A, Ul 60950-1, Iec 60950-1, En 60950-1, Fda, Fcc Cfr47 Part 15 B Class A, Cns 13438 Class A, En 300 386, Kn35, Iec/en 61000-4-3, Iec/en 61000-4-4, Iec/en 61000-4-5, Iec/en 61000-4-6, Iec/en 61000-4-8, As/nzs Cispr 32 Class A, Kn32 Class A, Iec/en 61000-4-11, Iec/en 61000-4-2, En 55032 Class A, En 55032, Cispr 32 Class A, En 55035, Iec/en 60825, Can/csa C22.2 No. 60950-1
Processor : Intel
Ram : 8 Gb
Flash Memory : 8 Gb
Hard Drive : 16 Gb
Ip Telephony :
Voip Protocols : Srtp
Expansion / Connectivity :
Interfaces : Wan / Lan: 6 X Ethernet 1000 ¦ Usb: 1 X
Expansion Slots : 1 (total) / 1 (free) X Service Module (sm) ¦ 1 (total) / 1 (free) X Nim
Installed Modules Qty (max) : 0 (installed) / 2 (max)
Power :
Power Device : Internal Power Supply
Installed Qty : 1 (max)
Condition : New Factory Sealed
Availability : In Stock
Our Warranty : 90 Days
CISCO Catalyst C8300-1N1S-6T - Router - Gige - Rack-mountable :
Key Features :
Ip Telephony :
Expansion / Connectivity :
Power :
Condition : New Factory Sealed
Availability : In Stock
Our Warranty : 90 Days
| Capacity | 6 PORT |
|---|---|
| Condition | New Factory Sealed |
| Manufacturer | CISCO |
