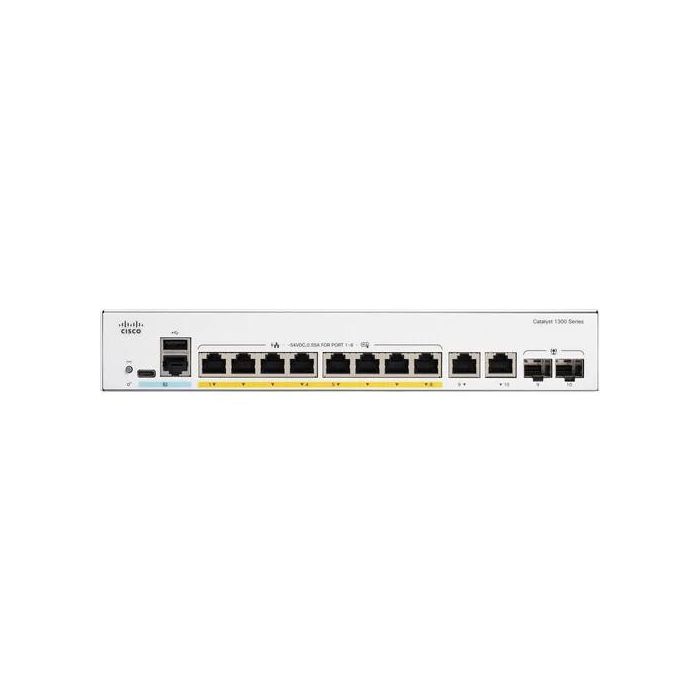

Cisco C1300-8P-E-2G Catalyst 8-Port Gigabit PoE+ Switch
Part Number:
C1300-8P-E-2G
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Device Type : Switch - 8 Ports - L3 - Managed
Enclosure Type : Rack-mountable
Subtype : Gigabit Ethernet
Ports : 8 X 10/100/1000 (poe+) + 2 X Combo Gigabit Sfp/rj-45
Power Over Ethernet (poe) : Poe+
Poe Budget : 60 W
Performance : Forwarding Rate (64-byte Packets): 14.88 Mpps ¦ Switching Capacity: 20 Gbps
Capacity : Mstp Instances: 8 ¦ Rpvst+ Instances: 126 ¦ Link Aggregation Groups: 8 ¦ Link Aggregation Ports: 8 ¦ Vlan Ids: 4093 ¦ Igmp Multicast Groups: 2000 ¦ Ipv4 Routes (static): Up To 990 ¦ Ipv4 Interfaces: 128 ¦ Acl Rules: 1024 ¦ Priority Queues: 8 ¦ Packet Buffer Size: 1.5 Mb
Mac Address Table Size : 16000 Entries
Jumbo Frame Support : 9000 Bytes
Routing Protocol : Stp, Static Ip Routing, Rstp, Mstp, Igmp, Igmpv2, Igmpv3, Cidr, Rip-2, Policy-based Routing (pbr), Mld, Mldv2, Bounjour
Remote Management Protocol : Cli, Snmp, Telnet, Ssh, Ssh-2, Dhcp, Scp, Https, Http, Icmp, Tftp, Syslog, Snmp 2c, Snmp 3, Rmon, Radius
Encryption Algorithm : Ssl, Md5
Authentication Method : Radius, Tacacs+
Features : Fanless, Vlan Support, Stp Support, Cli Management, Atp, Fhs, Qos, Sflow, Dynamic Routing, Zero-touch Deployment, Port Security, Web Authentication, Address Resolution Protocol, Arp Inspection, Ip Source Guard, Dhcp Snooping, Ipmb, Ndp, Router Advertisement Guard, Dhcpv6 Guard, Layer 3 Routing, Lag, Port Mirroring, Eco-friendly Button, Eee, Rstp, Mstp Support, Pvst+, Rpvst+, Lacp, Protocol-based Vlans Support, Mac Based Vlan, Vlan Management, Private Vlan, Pve, Guest Vlan, Gvrp, Cpe Vlan, Auto Surveillance Vlan, Mvr, Q-in-q Tunneling, Tpid, Garp, Udld, Dhcp Relay, Dhcp Server, Igmp Snooping, Igmp Querier, Igmp Proxy, Hol Blocking Prevention, Loopback Detection, Acl Support, Bootp Support, Udp, High Availability, Mac Address Authentication, Bpdu Guard, Stp Root Guard, Stp Loop Guard, Dai, Dos Protection, Sct, Ssd, Trustworthy Systems, Broadcast Storm Control, Multicast Storm Control, Storm Control, Unicast Storm Control, Unknown Storm Control, Dos Attack Prevention, Wrr, Tos, Dscp Based Cos, Diffserv Support, Tcp Congestion, Iscsi Traffic Optimization, Path Mtu Discovery, Dad, Ra Guard, Mld Snooping, Mld Proxy, Telnet Server, Dns Client, Telnet Client, Dhcp Client, CISCO Ng Pnp Protocol, Ipv4 And Ipv6 Dual Stack, Vlan Mirroring, Rspan, Scp, Chip Guard, Boot Integrity, Persistent Poe, Poe Scheduling, Time-based Port Operation, Cable Length Detection, Lldp, Lldp-med, Reset Button
Compliant Standards : Ieee 802.1x, Ieee 802.3az, Ieee 802.1d, Ieee 802.1w, Ieee 802.1s, Ieee 802.3ad (lacp), Ieee 802.1q, Ieee 802.1p, Ieee 802.3, Ieee 802.3ab, Ieee 802.3ae, Ieee 802.3an, Ieee 802.3u, Ieee 802.3x, Ieee 802.3z, Ieee 802.3af, Ieee 802.3at
Processor : X Arm: 1.4 Ghz
Ram : 1 Gb Ddr4 Sdram
Flash Memory : 512 Mb
Status Indicators : System, Link/activity/speed, Poe
Expansion / Connectivity :
Interfaces :
8 X 10/100/1000 Base-t (poe+) Rj-45
2 X 1000base-x Rj-45/sfp
1 X Console Rj-45
1 X Usb-c Console
Power :
Power Device : External Power Adapter
Voltage Required : Ac 100-240 V (50 - 60 Hz)
Condition : New Factory Sealed
Availability : In Stock
Our Warranty : 90 Days.
CISCO C1300-8P-E-2G Catalyst - Switch - L3 - Managed - 8 X 10/100/1000 (poe+) + 2 X Combo Gigabit Sfp/rj-45 - Rack-mountable - Poe+ (60 W).
Key Features :
Expansion / Connectivity :
Interfaces :
Power :
Condition : New Factory Sealed
Availability : In Stock
Our Warranty : 90 Days.
| Capacity | 8 PORT |
|---|---|
| Condition | New Factory Sealed |
| Manufacturer | CISCO |
