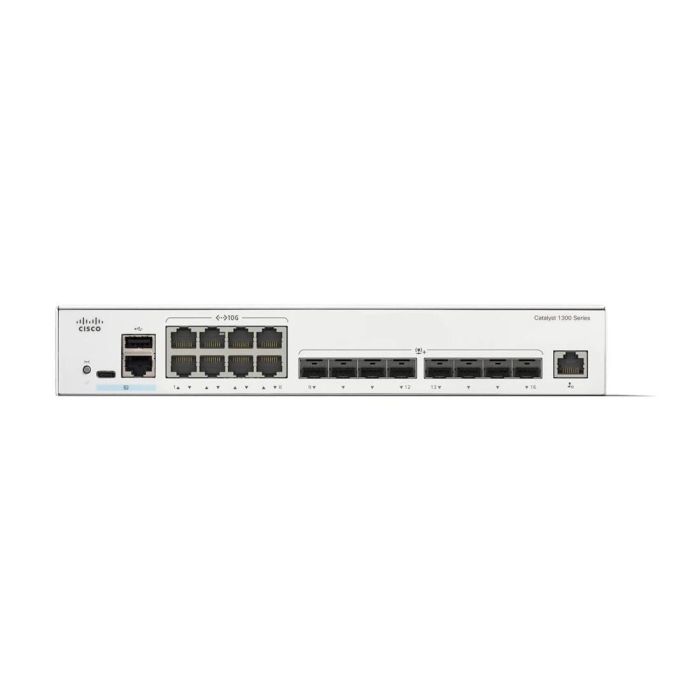

Cisco C1300-16XTS Catalyst 1300 16-Port Switch
Part Number:
C1300-16XTS
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Device Type : Switch - 16 Ports - L3 - Smart
Enclosure Type : Rack-mountable
Subtype : 10 Gigabit Ethernet
Ports : 8 X 10gbase-t + 8 X 10 Gigabit Sfp+
Performance : Forwarding Rate (64-byte Packets): 238.1 Mpps ¦ Switching Capacity: 320 Gbps
Capacity : Mstp Instances: 8 ¦ Rpvst+ Instances: 126 ¦ Link Aggregation Groups: 8 ¦ Link Aggregation Ports: 8 ¦ Vlan Ids: 4093 ¦ Igmp Multicast Groups: 2000 ¦ Ipv4 Routes (static): Up To 990 ¦ Ipv4 Interfaces: 128 ¦ Acl Rules: 1024 ¦ Priority Queues: 8 ¦ Packet Buffer Size: 1.5 Mb
Mac Address Table Size : 16000 Entries
Jumbo Frame Support : 9000 Bytes
Routing Protocol : Rip-2, Igmpv2, Igmp, Static Ip Routing, Igmpv3, Policy-based Routing (pbr), Mldv2, Mld, Cidr, Mstp, Rstp, Stp, Bounjour
Remote Management Protocol : Snmp, Rmon, Telnet, Snmp 3, Snmp 2c, Http, Https, Tftp, Ssh, Ssh-2, Cli, Scp, Icmp, Dhcp, Radius, Syslog
Encryption Algorithm : Md5, Ssl
Authentication Method : Radius, Tacacs+
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.1s, Ieee 802.3an, Ieee 802.3at, Ieee 802.3az
Processor : X Arm: 1.4 Ghz
Ram : 1 Gb Ddr4 Sdram
Flash Memory : 512 Mb
Status Indicators : System, Poe, Link/activity/speed
Expansion / Connectivity :
Interfaces :
8 X 10gbase-t Rj-45
8 X 10gbase-x Sfp+
1 X Console Rj-45
1 X Usb-c Console
1 X Usb
1 X Rj-45
Power :
Power Device : Internal Power Supply
Voltage Required : Ac 100-240 V (50/60 Hz)
Power Consumption Operational : 50.6 Watt
Condition : Refurbished
Availability : In Stock
Our Warranty : 90 Days
CISCO C1300-16XTS Catalyst 1300 16-port (8-port 10ge - 8-port Sfp+) Gigabit Switch.
Key Features :
Expansion / Connectivity :
Interfaces :
Power :
Condition : Refurbished
Availability : In Stock
Our Warranty : 90 Days
| Capacity | 16 PORT |
|---|---|
| Condition | Refurbished |
| Manufacturer | CISCO |
