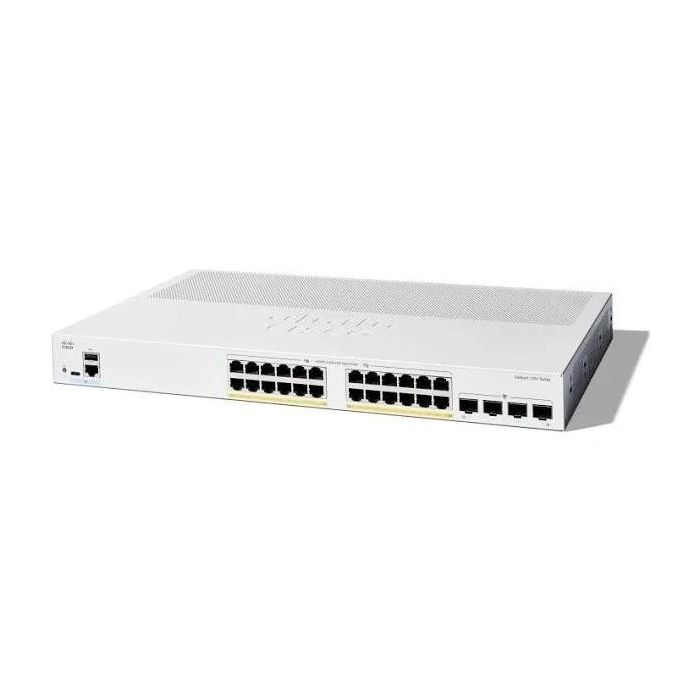

Cisco C1200-24FP-4G Catalyst 1200 24 ports Smart Rack-mountable Switch
Part Number:
C1200-24FP-4G
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview
General Information :
Device Type: Switch - 24 Ports - L3 - Smart
Enclosure Type: Rack-mountable
Subtype: Gigabit Ethernet
Ports: 24 X 10/100/1000 (poe+) + 4 X Gigabit Ethernet Sfp
Power Over Ethernet (poe): poe+
Poe Budget: 375 W
Performance: Forwarding Rate (64 Byte Packets): 41.66 Mpps , Switching Capacity: 56 Gbps
Capacity: Mstp Instances: 8, Pvst+ Instances: 126, Rpvst+ Instances: 126, Link Aggregation Groups: 4, Link Aggregation Ports: 8, Active Vlans: 255, Igmp Multicast Groups: 255, Ipv4 Routes (static): 32, Ipv4 Interfaces: 16, Acl Rules: 512, Priority Queues: 8, Packet Buffer Size: 1.5 Mb
Mac Address Table Size: 8000 Entries
Jumbo Frame Support: 9000 Bytes
Routing Protocol: Igmpv2, Igmp, Static Ip Routing, Igmpv3, Mldv2, Mld, Cidr, Mstp, Rstp, Stp, Bounjour
Remote Management Protocol: Snmp, Rmon, Telnet, Snmp 3, Snmp 2c, Http, Https, Tftp, Ssh, Ssh-2, Cli, Scp, Icmp, Dhcp, Radius, Syslog
Encryption Algorithm: Ssl
Authentication Method: Radius
Features: Bootp Support, Vlan Support, Igmp Snooping, Dos Attack Prevention, Port Mirroring, Diffserv Support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Sntp Support, Dhcp Server, Reset Button, Cable Diagnostics Function, Fanless, Dhcp Relay, Port Security, Snmp Trap, Dhcp Client, Port Grouping, Storm Control, Link Aggregation, Igmp Querier, Vlan Mirroring, Dns Client, Voice Vlan, Vlan Management, Lldp-med, Guest Vlan, Ingress Rate Limiting, Stp Loop Guard, Energy-efficient Ethernet (eee), Tcp/udp Proxy, Dscp Based Cos, Loopback Detection, Port-based Vlan, Telnet Server, Telnet Client, Unknown Storm Control, Ipv4 And Ipv6 Dual Stack, Zero-touch Deployment, Cable Length Detection, Trustworthy Systems, Layer 3 Routing, Remote Firmware Upgrade, Acl Support, Eco-friendly Button, Auto Surveillance Vlan, Tcp Congestion, Chip Guard, Boot Integrity, Time-based Port Operation, Tag-based Vlans, Wrr Queuing, Mstp Support, Tftp Support, Qos, Pvst+, Lacp, Cos, Sp, Garp, Gvrp, Tos, Scp, Sct, Ssd, Udp, Dos Protection, Wrr, Hol Blocking Prevention, Lag, Cdp, Vsdp, Rpvst+, Dad, Lldp, Eqs, Path Mtu Discovery
Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az
Processor: x Arm: 1.4 Ghz
Ram: 1 Gb Ddr4 Sdram
Flash Memory: 512 Mb
Status Indicators: system, Poe, Link/activity/speed
Expansion / Connectivity:
interfaces:
24 X 10/100/1000 Base-t (poe+) Rj-45
4 X 1000base-x Sfp
1 X Console Rj-45
1 X Usb-c Console
Power :
Power Device: Internal Power Supply
Voltage Required: ac 100-240 V (50 - 60 Hz)
Condition: Refurbished.
Availability: In Stock.
Serversupply Warranty: 90 Days.
CISCO C1200-24FP-4G Catalyst L3 Smart 24 X 10/100/1000 (poe+) + 4 X Gigabit Ethernet Sfp Rack Mountable Poe+ (375 W) Switch.
General Information :
Expansion / Connectivity:
interfaces:
Power :
Condition: Refurbished.
Availability: In Stock.
Serversupply Warranty: 90 Days.
| Capacity | 24 PORT |
|---|---|
| Condition | Refurbished |
| Manufacturer | CISCO |
