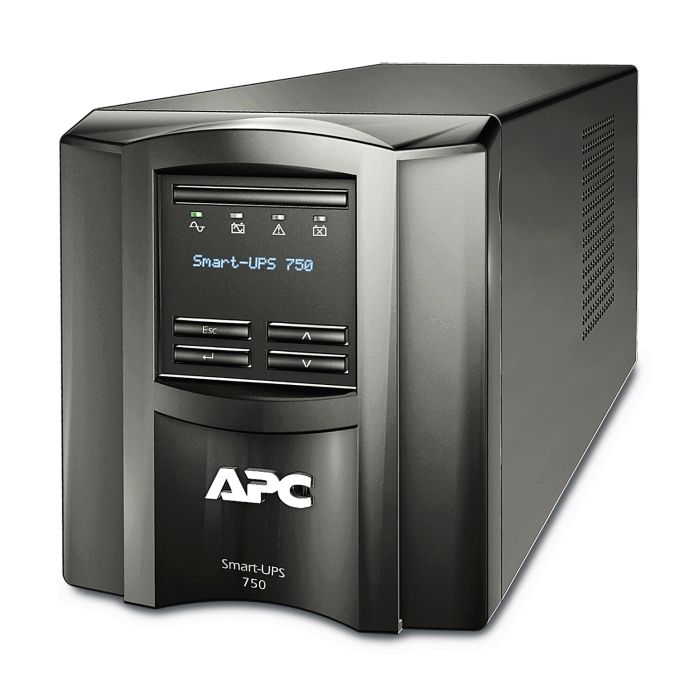

APC SMT750IC uninterruptible power supply (UPS) Line-Interactive 750 VA 500 W 6 AC outlet(s)
Part Number:
SMT750IC
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Specifications
| Power | |
|---|---|
| Output power | 500 W |
| Input operation voltage (min) | 151 V |
| Input operation voltage (max) | 302 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 540 J |
| Efficiency | 98% |
| Output power capacity | 0.75 kVA |
| Ports & interfaces | |
| Cable length | 1.83 m |
| USB port | Yes |
| SmartSlot | Yes |
| AC outlets quantity | 6 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| Number of output IEC jumpers | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Auto-restart | Yes |
| Automatic Voltage Regulation (AVR) | Yes |
| LED indicators | Status |
| Noise level | 40 dB |
| Audible alarm(s) | Yes |
| Features | |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Auto-restart | Yes |
| Automatic Voltage Regulation (AVR) | Yes |
| Output power | 500 W |
| Input operation voltage (min) | 151 V |
| Input operation voltage (max) | 302 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 540 J |
| Efficiency | 98% |
| Noise level | 40 dB |
| Audible alarm(s) | Yes |
| Output power capacity | 0.75 kVA |
| Input frequency | 50/60 Hz |
| Battery | |
| Battery life (max) | 5 year(s) |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Typical backup time at half load | 15.8 min |
| Typical backup time at full load | 4.6 min |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Automatic battery test | Yes |
| Design | |
| Form factor | Tower |
| LED indicators | Status |
| Product colour | Black |
| Certification | CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH, PEP, EOLI |
| Cable length | 1.83 m |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Sustainability certificates | Green Premium |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 639.93 |
| Compliance certificates | RoHS |
| Certificates | |
| Certification | CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH, PEP, EOLI |
| Compliance certificates | RoHS |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | USB cable |
| Manual | Yes |
| Bundled software | Powershute Serial Edition |
| Sustainability | |
| Sustainability certificates | Green Premium |
| Weight & dimensions | |
| Package width | 278 mm |
| Package depth | 499 mm |
| Package height | 301 mm |
| Weight | 13.2 kg |
| Width | 138 mm |
| Package weight | 14.2 kg |
| Height | 157 mm |
| Depth | 358 mm |
| Packaging data | |
| Quick installation guide | Yes |
| Cables included | USB cable |
| Manual | Yes |
| Package width | 278 mm |
| Package depth | 499 mm |
| Package height | 301 mm |
| Bundled software | Powershute Serial Edition |
| Package weight | 14.2 kg |
| Logistics data | |
| Products per pallet | 24 pc(s) |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 639.93 |
| Condition | NEW |
|---|---|
| Manufacturer | APC |
