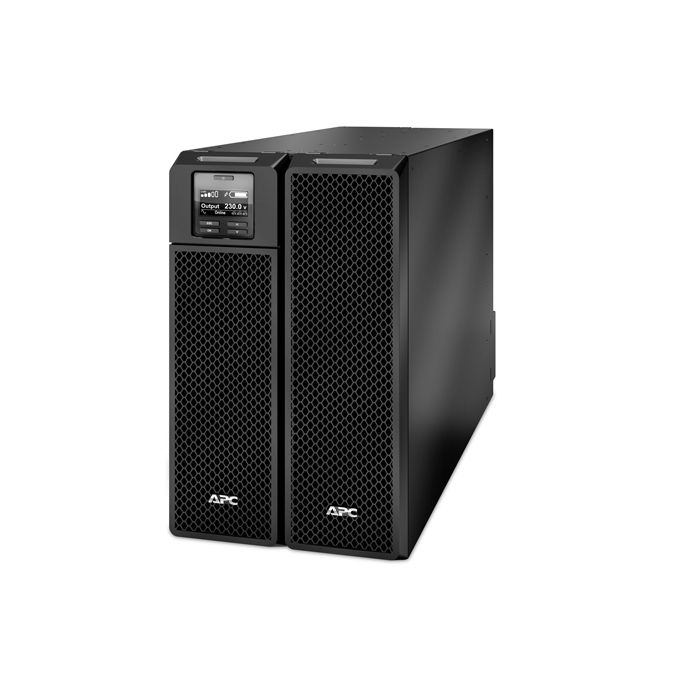

APC Smart-UPS On-Line, 10kVA/10kW, Tower, 230V/400V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit

Specifications Power Output frequency regulation 50/60 Hz Output power 10000 W Input operation voltage (min) 100 V Input operation voltage (max) 476 V Output operation voltage (min) 220 V Output operation voltage (max) 240 V Surge energy rating 480 J Efficiency 94.6% Emergency Power Off (EPO) Yes Crest factor 3:1 Output power capacity 10 kVA Performance UPS topology Double-conversion (Online) Waveform Sine Auto-restart Yes Number of output phases 1 LED indicators Yes Noise level 55 dB Audible alarm(s) Yes Features UPS topology Double-conversion (Online) Waveform Sine Output frequency regulation 50/60 Hz Auto-restart Yes Number of output phases 1 Output power 10000 W Input operation voltage (min) 100 V Input operation voltage (max) 476 V Output operation voltage (min) 220 V Output operation voltage (max) 240 V Surge energy rating 480 J Efficiency 94.6% Emergency Power Off (EPO) Yes Noise level 55 dB Crest factor 3:1 Audible alarm(s) Yes Output power capacity 10 kVA Input frequency 40/70 Hz Ports & interfaces USB port Yes Serial interface Yes Serial interface type RJ-45 SmartSlot Yes AC outlets quantity 10 AC outlet(s) AC outlet types C13 coupler, C19 coupler Power plug Hardwire Number of output IEC jumpers 3 Battery Battery life (max) 5 year(s) Battery capacity 1805 VAh Battery technology Sealed Lead Acid (VRLA) Battery recharge time 1.5 h Typical backup time at half load 11.5 min Typical backup time at full load 3.8 min Hot-swap battery Yes Cold start Yes Automatic battery test Yes Design International Protection (IP) code IP20 Form factor Rackmount/Tower LED indicators Yes Product colour Black Certification CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE, REACH Operational conditions Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -15 - 45 °C Operating relative humidity (H-H) 0 - 95% Storage relative humidity (H-H) 0 - 95% Operating altitude 0 - 3000 m Non-operating altitude 0 - 15000 m Technical details Sustainability certificates ENERGY STAR Harmonized System (HS) code 85078000 Total carbon footprint (kg of CO2e) 22851.99 Compliance certificates RoHS Packaging data Packaging content Web/SNMP Management Card Quick installation guide Yes Cables included USB cable Warranty card Yes Temperature sensor Yes Software CD Yes Package width 600 mm Package depth 1000 mm Package height 461 mm Package weight 126.8 kg Certificates Certification CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE, REACH Compliance certificates RoHS Packaging content Quick installation guide Yes Cables included USB cable Warranty card Yes Temperature sensor Yes Software CD Yes Packaging content Web/SNMP Management Card Sustainability Sustainability certificates ENERGY STAR Weight & dimensions Package width 600 mm Package depth 1000 mm Package height 461 mm Weight 111.8 kg Width 263 mm Package weight 126.8 kg Height 432 mm Depth 715 mm Logistics data Harmonized System (HS) code 85078000 Total carbon footprint (kg of CO2e) 22851.99 Other features Packaging content Web/SNMP Management Card Interface RJ-45 10/100 Base-T Nominal output voltage 230 V Nominal input voltage 230 V
