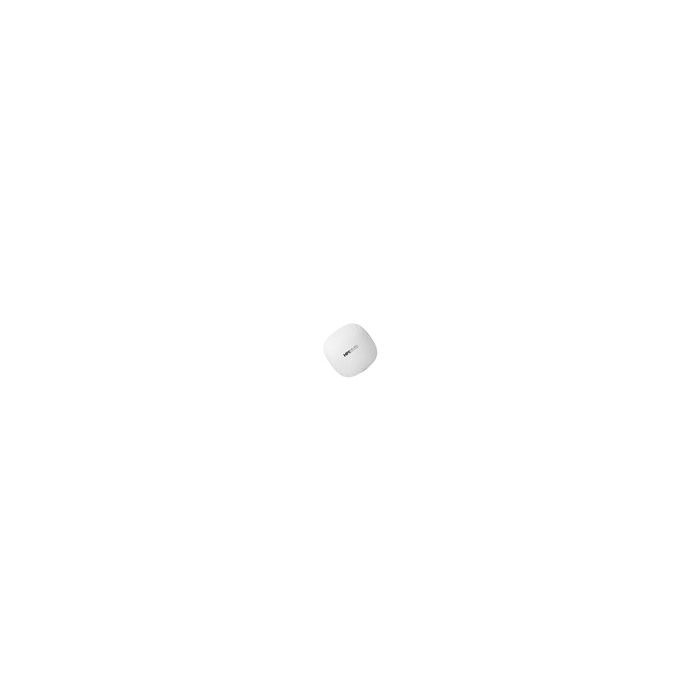

HPE AP-505-RW Aruba Networking Dual Radio 2x2 802.11ax Internal Antennas Unified Campus AP
Part Number:
AP-505-RW
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Wi-fi Alliance:
- Wi-fi Certified A, B, G, N, Ac
- Wi-fi Certified 6 (ax)
- Wpa, Wpa2 And Wpa3-enterprise With Cnsa Option, Personal (sae), Enhanced Open (owe)
- Wmm, Wmm-ps, W-fi Agile Multiband
- Wi-fi Certified Location™
- Bluetooth Sig
- Ethernet Alliance (poe, Pd Device, Class 4)
Regulatory : Fcc/ised
- Ce Marked
- Red Directive 2014/53/eu
- Emc Directive 2014/30/eu
- Low Voltage Directive 2014/35/eu
- Ul/iec/en 62368-1
- En 60601-1-1, En60601-1-2
Wi-fi Antenna : Two Integrated Dual-band Downtilt Omni-directional Antennas For 2x2 Mimo With Peak Antenna Gain Of 4.9dbi In 2.4ghz And 5.7dbi In 5ghz.
Connectivity Standard: Wi-fi 6 (ieee 802.11ax)
Ports:
- Ethernet Wired Network Port (rj-45)
- Usb 2.0 Host Interface (type A Connector)
- Serial Console Interface (proprietary, Micro-b Usb Physical Jack)
- Kensington Security Slot.
Mounting Kit: Optional
Power Consumption Maximum (worst-case) Power Consumption (without/with A Usb Device Attached):
- Poe Powered (802.3at): 11.0w / 16.5w
- Poe Powered (802.3af): 11.0w / 13.5w
- This Assumes That Up To 5w Is Supplied To The Attached Usb Device
- Maximum (worst-case) Power Consumption In Idle Mode: 4.3w (dc) Or 6.2w (poe)
- Maximum (worst-case) Power Consumption In Deep-sleep Mode: 1.7w (dc) Or 3.7w (poe)
Radio Coverage:
- Ap Type: Indoor, Dual Radio, 5 Ghz And 2.4 Ghz 802.11ax 2x2 Mimo
- 5 Ghz Radio: Two Spatial Stream Single User (su) Mimo For Up To 1.2 Gbps Wireless Data Rate With 2ss He80 802.11ax Client Devices.
- 2.4 Ghz Radio: Two Spatial Stream Single User (su) Mimo For Up To 574 Mbps (287 Mbps) Wireless Data Rate With 2ss He40 (he20) 802.11ax Client Devices.
Weight: 500 G (1.1 Lb)
Dimensions: 37 X 160 X 161 Mm (1.5 X 6.3 X 6.3 In)
Condition: Brand New.
Availability: Call.
Our Warranty: 90 Days.
HPE AP-505-RW Aruba Networking Dual Radio 2x2 802.11ax Internal Antennas Unified Campus Ap
Specifications :
Certifications : Ul2043 Plenum Rating
- Wi-fi Certified A, B, G, N, Ac
- Wi-fi Certified 6 (ax)
- Wpa, Wpa2 And Wpa3-enterprise With Cnsa Option, Personal (sae), Enhanced Open (owe)
- Wmm, Wmm-ps, W-fi Agile Multiband
- Wi-fi Certified Location™
- Bluetooth Sig
- Ethernet Alliance (poe, Pd Device, Class 4)
Regulatory : Fcc/ised
- Ce Marked
- Red Directive 2014/53/eu
- Emc Directive 2014/30/eu
- Low Voltage Directive 2014/35/eu
- Ul/iec/en 62368-1
- En 60601-1-1, En60601-1-2
Wi-fi Antenna : Two Integrated Dual-band Downtilt Omni-directional Antennas For 2x2 Mimo With Peak Antenna Gain Of 4.9dbi In 2.4ghz And 5.7dbi In 5ghz.
Connectivity Standard: Wi-fi 6 (ieee 802.11ax)
Ports:
- Ethernet Wired Network Port (rj-45)
- Usb 2.0 Host Interface (type A Connector)
- Serial Console Interface (proprietary, Micro-b Usb Physical Jack)
- Kensington Security Slot.
Mounting Kit: Optional
Power Consumption Maximum (worst-case) Power Consumption (without/with A Usb Device Attached):
- Poe Powered (802.3at): 11.0w / 16.5w
- Poe Powered (802.3af): 11.0w / 13.5w
- This Assumes That Up To 5w Is Supplied To The Attached Usb Device
- Maximum (worst-case) Power Consumption In Idle Mode: 4.3w (dc) Or 6.2w (poe)
- Maximum (worst-case) Power Consumption In Deep-sleep Mode: 1.7w (dc) Or 3.7w (poe)
Radio Coverage:
- Ap Type: Indoor, Dual Radio, 5 Ghz And 2.4 Ghz 802.11ax 2x2 Mimo
- 5 Ghz Radio: Two Spatial Stream Single User (su) Mimo For Up To 1.2 Gbps Wireless Data Rate With 2ss He80 802.11ax Client Devices.
- 2.4 Ghz Radio: Two Spatial Stream Single User (su) Mimo For Up To 574 Mbps (287 Mbps) Wireless Data Rate With 2ss He40 (he20) 802.11ax Client Devices.
Weight: 500 G (1.1 Lb)
Dimensions: 37 X 160 X 161 Mm (1.5 X 6.3 X 6.3 In)
Condition: Brand New.
Availability: Call.
Our Warranty: 90 Days.
| Capacity | WIRELESS 2.4GBPS |
|---|---|
| Condition | Brand New |
| Manufacturer | HPE |
