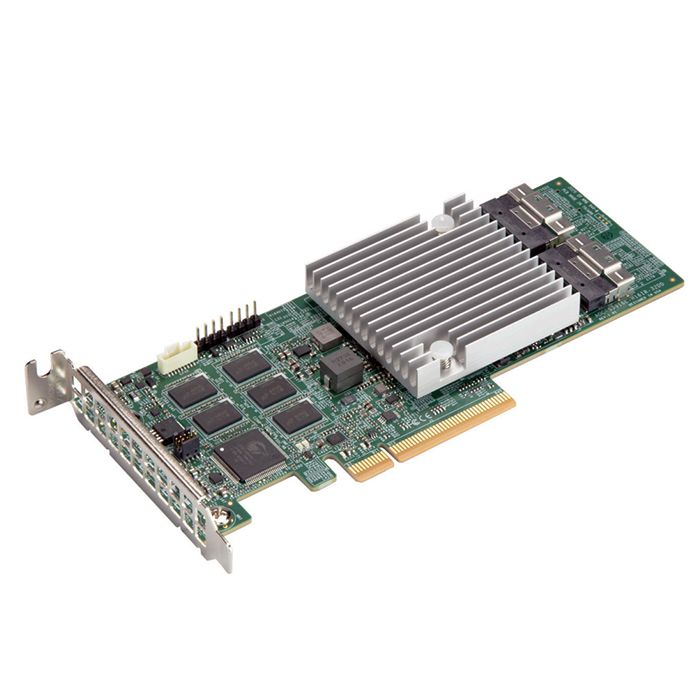

Supermicro AOC-S3916L-H16IR 12Gb/s Multi-Port SAS PCIe Gen 4.0 Internal RAID Adapter
Part Number:
AOC-S3916L-H16IR
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Low Profile X8 Pcie Gen 4.0 Root Complex Interface
Supports Raid 0, 1, 5, 6, 10, 50, 60
8gb Ddr4 Onboard Cache Memory – 2666mhz
Power Consumption: 14 Watts For Aoc-s3908l-h8ir & 18 Watts For AOC-S3916L-H16IR
Supports 3.0, 6.0 And 12.0 Gb/s Sas Data Transfer Rates And 3.0 & 6.0 Gb Sata
Support For Mctp Over Pcie
Cachevault To Protect Onboard Cache Memory
Supercap - Btr-cvpm05 (optional)
Tfm – Included On-board
Supports Advanced Software Encryption - Included
Supports In Lsa Storage Authority Software Webgui
Secure Boot
Uefi Configuration Utility
Os Support: Windows/linux
Dimensions: 2.71 X 6.6 (h X L)
Thermal Operating Range: System Dependent (55°c Or Higher W/ Enough Airflow)
Dimensions
L X W 2.7 X 6.6
Compliance
Rohs Compliant 6/6, Pb Free
Condition : Brand New.
Availability : In Stock.
Our Warranty : 90 Days.
Overview : The SUPERMICRO Megaraid Aoc-s3908l-h8ir Features 8 Internal Sas Connectors, And The AOC-S3916L-H16IR Features 16 Internal Sas Connectors, Utilizing Broadcom Sas Ic And Megaraid Technology. These Raid Cards Meet The Demand For Increased Data Throughput And Scalability In Enterprise-class Servers. With Hardware Raid 5 And 6 Support, They Offer High-performance Storage Connectivity For Sata And Sas Drives. The Optional Btr-cvpm05 Supercap/tfm Unit Provides Cached Data Protection During System Failures. Supporting Up To 16, 32, Or 240 Drives With Raid 0, 1, 5, 6, 10, 50, And 60, They Offer Cost-effective Storage Solutions With Maximum Performance And Reliability.
Key Features
Dimensions
Compliance
Condition : Brand New.
Availability : In Stock.
Our Warranty : 90 Days.
| Capacity | RAID CONTROLLER |
|---|---|
| Condition | Brand New |
| Manufacturer | SUPERMICRO |
