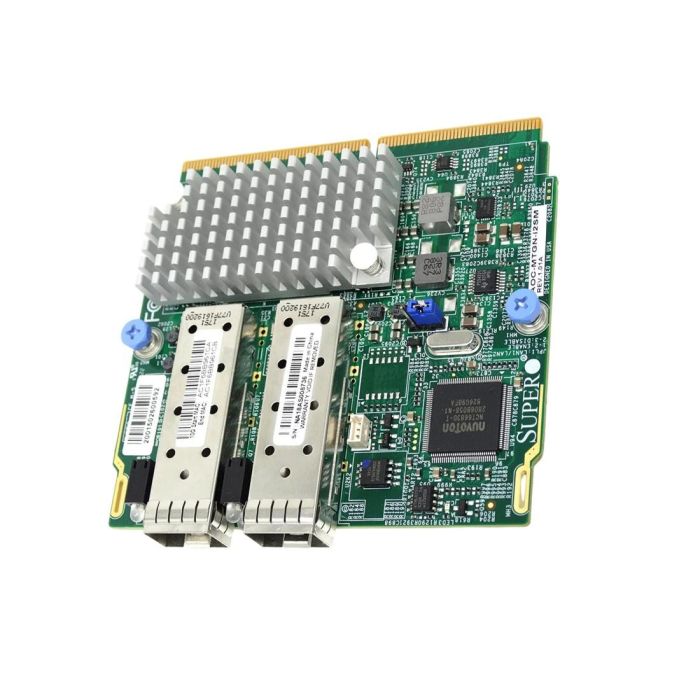

Supermicro AOC-MTGN-I2SM SIOM 2-port 10G SFP+ Adapter w/1U bracket Intel 82599ES
Part Number:
AOC-MTGN-I2SM
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview General
- Intel® 82599es 10gbe Controller
- Super I/o Module (siom) Form Factor
- Dual Sfp+ Ports
- Load Balancing On Multiple Cpus
- Iscsi Remote Boot Support
- Fibre Channel Over Ethernet (fcoe) Support
- Intel® Proset Utility For Windows® Device Manager
- Time Sync Ieee 1588
I/o Features
- Direct Cache Access (dca) To Avoid Cache Misses
- Msi-x Support To Minimize The Overhead Of Interrupts, Allowing Load-balancing Between Multiple Cores/cpus
- Tx/rx Ip, Sctp, Tcp And Udp Checksum Offloading Capabilities (ipv4, Ipv6)
- Receive And Transmit Side Scaling For Windows Environments And Scalable I/o For Linux Environments
Virtualization Features
- Vmdq, Next-generation Vmdq (64 Queues Per Port)
- Pc-sig Sr-iov Implementation (64 Virtual Functions Per Port)
- Advanced Packet Filtering
- Vlan Support To Allow Creation Of Multiple Vlan Segments
- Vxlan Through Software
Management Features
- Preboot Execution Environment (pxe) Support
- Simple Network Management Protocol (snmp) And Remote Network Monitoring (rmon) Statistics Counters
- Iscsi Remote Boot
- Nc-si For Remote Management
- Asset Management Support On SUPERMICRO® Platforms
- Controller Asset Tags Such As Part Number, Revision, Serial Number, And Mac Addresses
Advanced Software Features
- Teaming Support
- Ieee 802.3ad (link Aggregation Control Protocol)
- Ieee 802.1q Vlans
- Ieee 802.3 2005 Flow Control Support
Os Support
- Windows Server 2012 R2, 2012, 2008 R2 (x64 Edition)
- Windows 8.1, 8, 7 (x64 Edition)
- Redhat Linux
- Suse Linux
- Freebsd
- Uefi
- Vmware
Cable Support
- Sfp+ Direct Attach Twinaxial Copper Cables Up To 7m
- Fiber-optic Cables (with Required Optional Sfp+ Transceivers)
Power Consumption
- Typical Power Consumption: 6.2w
- Maximum Power Consumption: 7.2w
Operating Conditions
- Operating Temperature: 0°c To 55°c (32°f To 131°f)
- Storage Temperature: -40°c To 70°c (-40°f To 158°f)
- Storage Humidity: 90% Non-condensing Relative Humidity At 35°c
Physical Dimensions
- Card Pcb Dimensions: 92mm (3.62in) X 87.1mm (3.43in) (w X D)
Condition: Refurbished.
Availability: In Stock.
Our Warranty: 90 Days.
SUPERMICRO AOC-MTGN-I2SM Siom 2-port 10g Sfp+ Adapter W/1u Bracket Intel 82599es
Overview SUPERMICRO® Advanced I/o Modules (aiom) Is The Latest Form Factor Designed To Provide A Wide Range Of Networking Options As Well As Other I/o Technologies. The Aoc-atg-i2tm Is One Of The Most Feature-rich Low Power 10gbase-t Controllers In The Market Today. Based On The Intel® X550 Chipset With Virtualization Features Such As Vxlan And Nvgre, It Offers Flexible Connectivity Selection For All Networking Requirements. The Integration Of 10gbe Mac+phy With Intel® X550, It Helps To Drive Down Both Cost And Power, Enabling The Most Cost-effective Solution In The Data Center. The Aoc-atg-i2tm(b) Is Among The Most Innovative 10gbe Controllers In The Market And An Excellent Choice To Expand Network Connectivity In The Data Centers And Enterprise Environments.
Specification
- Intel® 82599es 10gbe Controller
- Super I/o Module (siom) Form Factor
- Dual Sfp+ Ports
- Load Balancing On Multiple Cpus
- Iscsi Remote Boot Support
- Fibre Channel Over Ethernet (fcoe) Support
- Intel® Proset Utility For Windows® Device Manager
- Time Sync Ieee 1588
- Direct Cache Access (dca) To Avoid Cache Misses
- Msi-x Support To Minimize The Overhead Of Interrupts, Allowing Load-balancing Between Multiple Cores/cpus
- Tx/rx Ip, Sctp, Tcp And Udp Checksum Offloading Capabilities (ipv4, Ipv6)
- Receive And Transmit Side Scaling For Windows Environments And Scalable I/o For Linux Environments
- Vmdq, Next-generation Vmdq (64 Queues Per Port)
- Pc-sig Sr-iov Implementation (64 Virtual Functions Per Port)
- Advanced Packet Filtering
- Vlan Support To Allow Creation Of Multiple Vlan Segments
- Vxlan Through Software
- Preboot Execution Environment (pxe) Support
- Simple Network Management Protocol (snmp) And Remote Network Monitoring (rmon) Statistics Counters
- Iscsi Remote Boot
- Nc-si For Remote Management
- Asset Management Support On SUPERMICRO® Platforms
- Controller Asset Tags Such As Part Number, Revision, Serial Number, And Mac Addresses
- Teaming Support
- Ieee 802.3ad (link Aggregation Control Protocol)
- Ieee 802.1q Vlans
- Ieee 802.3 2005 Flow Control Support
- Windows Server 2012 R2, 2012, 2008 R2 (x64 Edition)
- Windows 8.1, 8, 7 (x64 Edition)
- Redhat Linux
- Suse Linux
- Freebsd
- Uefi
- Vmware
- Sfp+ Direct Attach Twinaxial Copper Cables Up To 7m
- Fiber-optic Cables (with Required Optional Sfp+ Transceivers)
- Typical Power Consumption: 6.2w
- Maximum Power Consumption: 7.2w
- Operating Temperature: 0°c To 55°c (32°f To 131°f)
- Storage Temperature: -40°c To 70°c (-40°f To 158°f)
- Storage Humidity: 90% Non-condensing Relative Humidity At 35°c
- Card Pcb Dimensions: 92mm (3.62in) X 87.1mm (3.43in) (w X D)
Condition: Refurbished.
Availability: In Stock.
Our Warranty: 90 Days.
| Capacity | 2 PORT |
|---|---|
| Condition | Refurbished |
| Manufacturer | SUPERMICRO |
