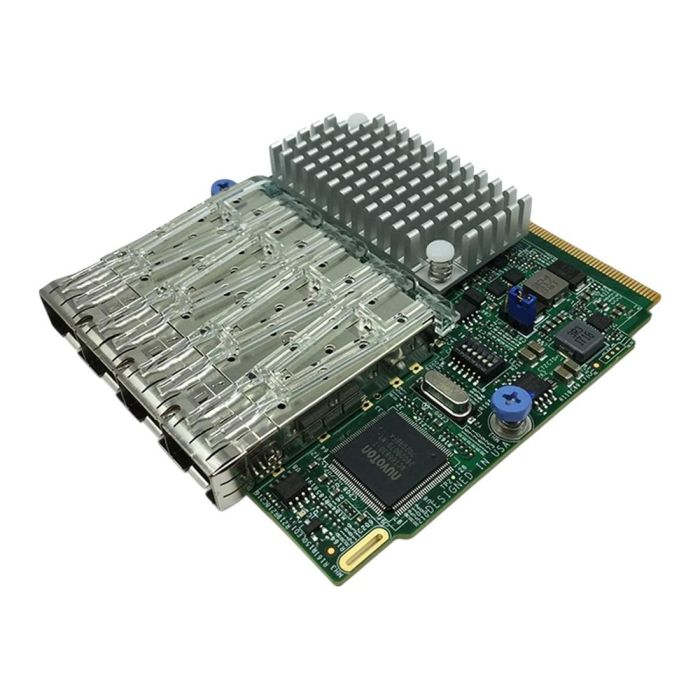

SuperMicro AOC-MTG-I4SM SIOM Quad Port SFP PCIe Intel x710 10G Ethernet Adapter
Part Number:
AOC-MTG-I4SM
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview General
- Intel® Xl710 Controller
- Super I/o Module (siom) Form Factor
- Quad Sfp+ Connectors With Speed Up To 10gbps Per Port
- Load Balancing On Multiple Cpus
- Intel® Proset Utility For Windows Device Manager
- Time Sync (ieee 1588)
- Energy Efficient Ethernet (eee)
I/o Features
- Intel® Flow Director
- Msi-x Support
- Multiple Queues: 1,536 Tx And Rx Queues Per Port
- Tx/rx Ip, Sctp, Tcp, And Udp Checksum Offloading (ipv4, Ipv6) Capabilities
- Jumbo Frame (9.5kb)
Virtualization Features
- Next-generation Vmdq With Up To 256 Vmdq Vms Supported
- Pci-sig Sr-iov With Up To 128 Virtual Ports
- Virtual Machine Load Balancing (vmlb)
- Advanced Packet Filtering
- Vlan Support For Up To 4096 Vlan Tags
- Vxlan And Nvgre Support
Storage Interface Features
- Preboot Execution Environment (pxe) Support
- Iscsi Remote Boot
- Simple Network Management Protocol (snmp) And Remote Network Monitoring (rmon) Static Counters
Management Features
- Asset Management Support On SUPERMICRO® Platforms
- Controller Asset Tags Such As Part Number, Revision, Serial Number, And Mac Addresses
- Controller Thermal Sensor
- Nc-si For Remote Management
Advanced Software Features
- Teaming Support
- Ieee 802.3ad (link Aggregation Control Protocol)
- Ieee 802.1q Vlans
- Ieee 802.3 2005 Flow Control Support
- Tcp Segmentation/large Send Offload
- Interrupt Moderation
Os Support
- Windows® Server 2012 R2, 2012, 2008 R2 X86-64
- Linux Redhat El 6.5 And 7.0 Ia-32, X86-64, And Ia-64
- Linux Suse Sles 11 Sp3 And 12 Ia-32, X86-64, And Ia-64
- Freebsd 9 And 10 Ia-32, X86-64, And Ia-64
- Uefi 2.1 And 2.3 X86-64 And I-64
- Vmware Esxi 5.1, Esxi 5.5 And Esxi 6.0 X86-64
Cable Support
- Sfp+ Direct Attach Twinaxial Copper Cables Up To 7m
- Fiber-optic Cables (with Required Optional Sfp+ Transceivers)
Power Consumption
- Typical Power Consumption: 4w
- Maximum Power Consumption: 7w
Operating Conditions
- Operating Temperature: 0°c To 55°c (32°f To 131°f)
- Storage Temperature: -40°c To 70°c (-40°f To 158°f)
- Storage Humidity: 90% Non-condensing Relative Humidity At 35°c
Physical Dimensions
- Card Pcb Dimensions: 92mm (3.62in) X 87.1mm (3.43in) (w X D)
Condition: Refurbished.
Availability: In Stock.
Our Warranty: 90 Days.
SUPERMICRO AOC-MTG-I4SM Siom Quad Port Sfp Pcie Intel X710 10g Ethernet Adapter
Overview SUPERMICRO Super I/o Modules Provide Flexible I/o Networking Options And The AOC-MTG-I4SM Is The Most Advanced, Marketleading 4-port 10gbe Sfp+ Siom Controller. It Expands Virtualization Beyond The Server Level To The Network Level, And Combines With Hardware Optimizations And Offloads. It Provides Unmatched Features For Virtualization, Flexibility For Lan And San Networks, And Reliable Performance.
Specification
- Intel® Xl710 Controller
- Super I/o Module (siom) Form Factor
- Quad Sfp+ Connectors With Speed Up To 10gbps Per Port
- Load Balancing On Multiple Cpus
- Intel® Proset Utility For Windows Device Manager
- Time Sync (ieee 1588)
- Energy Efficient Ethernet (eee)
- Intel® Flow Director
- Msi-x Support
- Multiple Queues: 1,536 Tx And Rx Queues Per Port
- Tx/rx Ip, Sctp, Tcp, And Udp Checksum Offloading (ipv4, Ipv6) Capabilities
- Jumbo Frame (9.5kb)
- Next-generation Vmdq With Up To 256 Vmdq Vms Supported
- Pci-sig Sr-iov With Up To 128 Virtual Ports
- Virtual Machine Load Balancing (vmlb)
- Advanced Packet Filtering
- Vlan Support For Up To 4096 Vlan Tags
- Vxlan And Nvgre Support
- Preboot Execution Environment (pxe) Support
- Iscsi Remote Boot
- Simple Network Management Protocol (snmp) And Remote Network Monitoring (rmon) Static Counters
- Asset Management Support On SUPERMICRO® Platforms
- Controller Asset Tags Such As Part Number, Revision, Serial Number, And Mac Addresses
- Controller Thermal Sensor
- Nc-si For Remote Management
- Teaming Support
- Ieee 802.3ad (link Aggregation Control Protocol)
- Ieee 802.1q Vlans
- Ieee 802.3 2005 Flow Control Support
- Tcp Segmentation/large Send Offload
- Interrupt Moderation
- Windows® Server 2012 R2, 2012, 2008 R2 X86-64
- Linux Redhat El 6.5 And 7.0 Ia-32, X86-64, And Ia-64
- Linux Suse Sles 11 Sp3 And 12 Ia-32, X86-64, And Ia-64
- Freebsd 9 And 10 Ia-32, X86-64, And Ia-64
- Uefi 2.1 And 2.3 X86-64 And I-64
- Vmware Esxi 5.1, Esxi 5.5 And Esxi 6.0 X86-64
- Sfp+ Direct Attach Twinaxial Copper Cables Up To 7m
- Fiber-optic Cables (with Required Optional Sfp+ Transceivers)
- Typical Power Consumption: 4w
- Maximum Power Consumption: 7w
- Operating Temperature: 0°c To 55°c (32°f To 131°f)
- Storage Temperature: -40°c To 70°c (-40°f To 158°f)
- Storage Humidity: 90% Non-condensing Relative Humidity At 35°c
- Card Pcb Dimensions: 92mm (3.62in) X 87.1mm (3.43in) (w X D)
Condition: Refurbished.
Availability: In Stock.
Our Warranty: 90 Days.
| Capacity | 10 GIGABIT |
|---|---|
| Condition | Refurbished |
| Manufacturer | SUPERMICRO |
