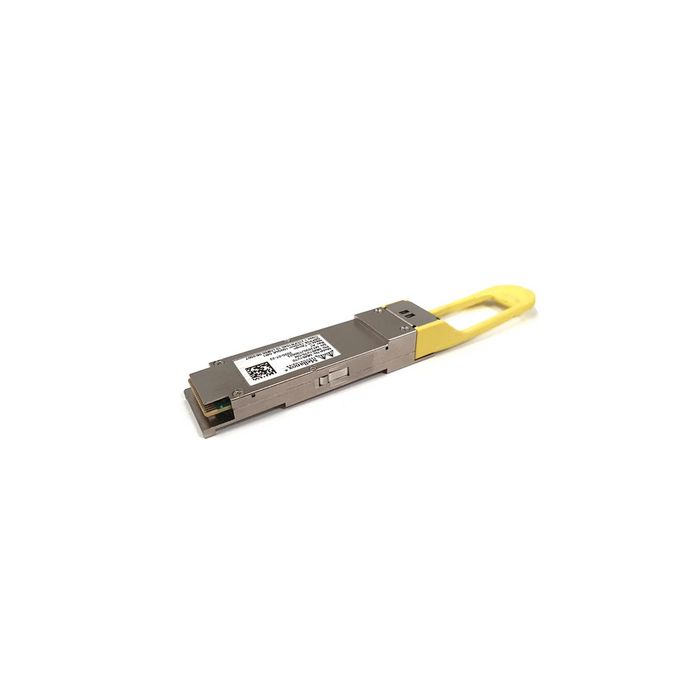

Mellanox 980-9I042-00C000 100GbE QSFP28 LC-LC 1310nm DR1 Transceiver

MELLANOX 980-9I042-00C000 100gbe Qsfp28 Lc-lc 1310nm Dr1 Transceiver

Overview Nvidia 980-9I042-00C000 Transceiver Is A Single Mode 1-lane (dr1), Qsfp28 Optical Transceiver, Designed For Use In 100 Gigabit Ethernet (gbe) Links On Up To 500m Of Single Mode Fiber.

the Transceiver Converts 4 Input Channels Of 25gb/s Nrz Electrical Data To A Single Optical Channel Of 100gb/s Pam4 Optical Signals Over A Single Fiber, Using A Nominal Wavelength Of 1310nm, And Vice Versa For The Receive Path. The Mms1v70-cm Main Application Is To Converge Between Legacy 100gbe Nrz Systems And The Emerging 400gbe Pam4 Systems. Four Different Mms1v70-cm Transceivers Can Be Connected To A Single 400gbe Qsfp-dd Mms1v00-wm Dr4 Transceiver Over A Single Mode Splitter Cable

it Is Compliant With The Qsfp28 Msa, Ieee 802.3bm Caui-4. Digital Diagnostic Functions Are Available Via The I2c Interface, As Specified By The Qsfp28 Msa

Key Features

• 4x 25gb/s Nrz Modulation

• Programmable Rx Output Amplitude And Pre-emphasis

• Sff-8665 Compliant Qsfp56 Port

• Single 3.3v Power Supply

• 0 W Power Dissipation (typ., Each End, With Retiming)

• Up To 500m Length

• Hot Pluggable

• Rohs Compliant

• Sff-8636 Compliant I2c Management Interface

Applications

• Supports 4x Mms1v70-cm On Msn2700 To A Single Mms1v00-wm On Msn4700

Condition : New Factory Sealed
Availability : In Stock.
Our Warranty : 90 Days.
