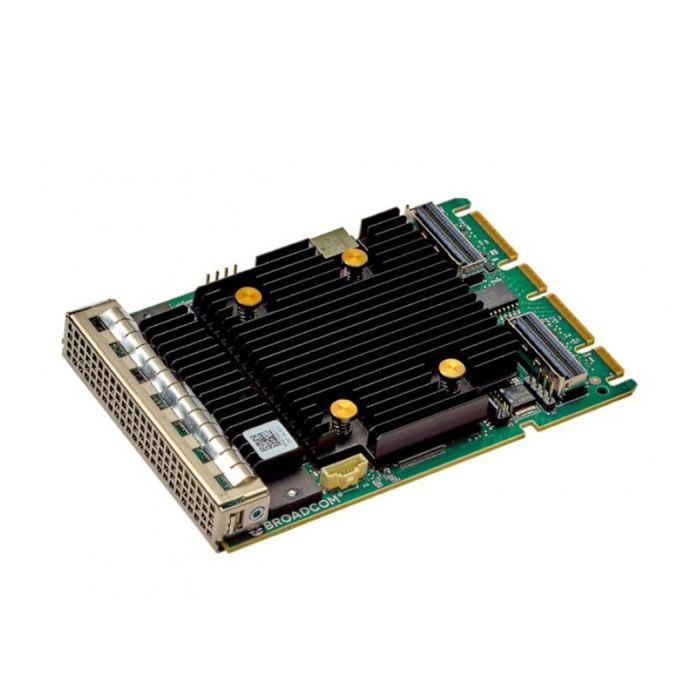

Broadcom 9562-16i 16-Port Internal 12Gbs TriMode SATA+SAS+PCIe Raid Controller.
Part Number:
9562-16I
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview
BROADCOM 9562-16I 16-port Internal 12gb/s Trimode Sata+sas+pcie Raid Controller.
Part Number: 9562-16I
Manufacturer: BROADCOM
Technical Information:
Brackets: Internal Lock
Cache Memory: 8gb
Cache Protection: Cachevault Cvpm05
Connectors: 2x8 Sff-8654 (vertical)
Data Transfer Rates: 12gb/s Sas And 16gt/s Pcie Gen4 (nvme) Compliant
Devices Supported: Sas/sata: 1024, Nvme: 32
Generation: 12 Gb/s
Host Bus Type: X8 Lane Pci Express 4.0
I/o Processor / Sas Controller: Sas3916 12gb/s Sas Tri-mode Raid-on-chip (roc)
Internal Ports: 16
Management Software: Lsi Storage Authority (lsa), Storcli (command-line Interface), Hii (uefi Human Interface Infrastructure)
Mtbf: >3,000,000 Hours At 40°c
Ocp Thermal Tier: Tier 5
Operating Temperature°c: 0°c To 55°c
Os: Microsoft Windows, Vmware Vsphere/esxi, Red Hat Enterprise Linux, Suse Linux, Ubuntu Linux, Citrix Xenserver, Centos Linux, Debian Linux, Oracle Enterprise Linux, Fedora, Freebsd
Raid Levels: 0, 1, 10, 5, 50, 6, 60
Typical Power: 13w
Physical Characteristics:
Dimensions: 115.00 (+/-0.13) Mm X 76.00 (+/-0.13) Mm
Condition: New Factory Sealed.
Availability: In Stock.
Our Warranty: 90 Days.
| Capacity | RAID CONTROLLER |
|---|---|
| Condition | New Factory Sealed |
| Manufacturer | BROADCOM |
