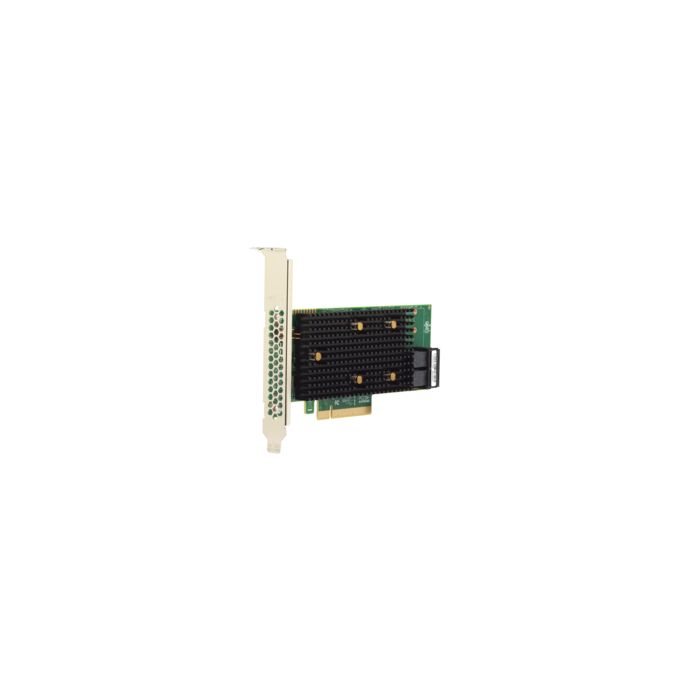

Broadcom 9500-8I 8-Port Int 12GB/S SAS/SATA/PCIE (NVME) Tri-Mode HBA
Part Number:
9500-8I
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Connects Up To 1024 Sas/sata Devices Or 32 Nvme Devices
Provides Maximum Connectivity And Performance For High-end Servers And Applications
Support Critical Applications With The Bandwidth Of Pcie® 4.0 Connectivity
Universal Bay Management (ubm) Ready
Key Features
Port Count 8 Internal
Connectors One X8 Sff-8654
Host Interface X8 Pcie Gen 4.0
Storage Interface 12gb/s Sas, 6gb/s Sata, Gen 4.0 Pcie (nvme)
Management Utilities
Lsi Storage Authority (lsa)
Storcli (command-line Interface)
Hii (uefi Human Interface Infrastructure)
Os Support Microsoft Windows, Vmware Vsphere/esxi, Red Hat Enterprise Linux, Suse Linux, Ubuntu Linux, Citrix Xenserver, Centos Linux, Debian Linux, Oracle Enterprise Linux, Fedora, Freebsd.
Dimensions 6.127 In. × 2.712 In. (155.65 Mm × 68.90 Mm)
Operating Conditions
Operating: 0°c To 55°c, 5% To 90% Non-condensing
Storage: -45°c To +105°c, 5% To 95% Non-condensing.
Typical Power 5.96w
Operating Voltage 12v ±8%, 3.3v ±9%
Mtbf (calculated) > 5,000,000 Hours At 40°c
Condition: New Factory Sealed.
Availability: In Stock.
Our Warranty: 90 Days.
BROADCOM 9500-8I 8-port Int 12gb/s Sas/sata/pcie (nvme) Tri-mode Hba.
Overview The 9500-8I Tri-mode, Pcie Gen 4.0 Hba With Eight Internal Ports Is Ideal For Increased Connectivity And Maximum Performance For Enterprise Data Center Flexibility.
With Increased Bandwidth And Iops Performance Compared To Previous Generations, The 9500-8I Adapter Delivers The Performance And Scalability Needed By Critical Applications.
Key Features
Port Count 8 Internal
Connectors One X8 Sff-8654
Host Interface X8 Pcie Gen 4.0
Storage Interface 12gb/s Sas, 6gb/s Sata, Gen 4.0 Pcie (nvme)
Management Utilities
Os Support Microsoft Windows, Vmware Vsphere/esxi, Red Hat Enterprise Linux, Suse Linux, Ubuntu Linux, Citrix Xenserver, Centos Linux, Debian Linux, Oracle Enterprise Linux, Fedora, Freebsd.
Dimensions 6.127 In. × 2.712 In. (155.65 Mm × 68.90 Mm)
Operating Conditions
Typical Power 5.96w
Operating Voltage 12v ±8%, 3.3v ±9%
Mtbf (calculated) > 5,000,000 Hours At 40°c
Condition: New Factory Sealed.
Availability: In Stock.
Our Warranty: 90 Days.
| Capacity | HOST BUS ADAPTER |
|---|---|
| Condition | New Factory Sealed |
| Manufacturer | BROADCOM |
