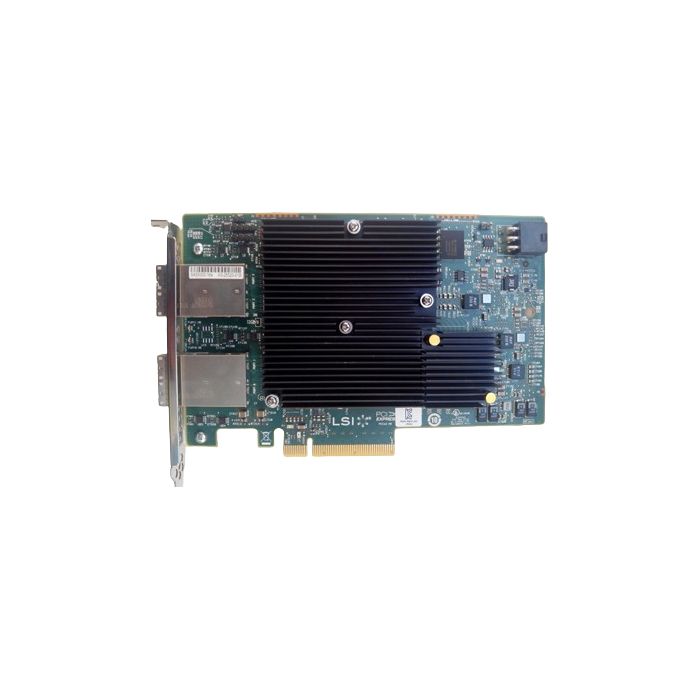

Broadcom 9300-16e 16-Port 12Gb/s SAS+SATA to PCI Express Host Bus Adapter F/S
Part Number:
9300-16E
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview 16 X1 Ports (individual Drives)
4 X4 Wide Ports
X8 Wide Ports
Host Bus: X8 Lane, Pcie 3.0 Compliant
Pci Data Burst Transfer Rates : Half Duplex X8, Pcie, 8000 Mb/s
Physical Dimensions : .4” X 6.6”
Connectors: Four (x4) Mini-sas Hd External Connector (sff8644)
Cable Support: Passive Copper, Active Copper
Operating Voltage: +12v +/-8%, 3.3v +/-9%
Pci Power (nominal): 28.6w
Device Support: 1024 Non-raid Sata/sata Devices Per Controller
Environmental:
Operating: 0oc To 55oc
Storage: -45°c To 105°c
5 To 90% Non-condensing
Airflow: 200 Lfm
Mtbf >1,500,000 Hours
Os Support Microsoft Windows, Linux (suse , Red Hat), Solaris, Vmware, Freebsd
Condition: New Factory Sealed.
Availability: Call.
Our Warranty: 90 Days
BROADCOM 9300-16E 16-port 12gb/s Sas+sata To Pci Express Host Bus Adapter
Key Features :
Io Controller: Two, Sas 3008/ Fusion Mpt 2.5
Storage Connectivity, Data Transfer Rates: 16 Ports, 12gb/s Sas 3.0 Compliant
Sas Bandwidth: Half Duplex (x4 Wide Bus) 4800 Mb/s
Port Configurations
Host Bus: X8 Lane, Pcie 3.0 Compliant
Pci Data Burst Transfer Rates : Half Duplex X8, Pcie, 8000 Mb/s
Physical Dimensions : .4” X 6.6”
Connectors: Four (x4) Mini-sas Hd External Connector (sff8644)
Cable Support: Passive Copper, Active Copper
Operating Voltage: +12v +/-8%, 3.3v +/-9%
Pci Power (nominal): 28.6w
Device Support: 1024 Non-raid Sata/sata Devices Per Controller
Environmental:
Os Support Microsoft Windows, Linux (suse , Red Hat), Solaris, Vmware, Freebsd
Condition: New Factory Sealed.
Availability: Call.
Our Warranty: 90 Days
| Capacity | 16PORT |
|---|---|
| Condition | New Factory Sealed |
| Manufacturer | BROADCOM |
