NVIDIA 900-9D3D4-00NN-HA0 BlueField-3 B3140H E-series HHHL SuperNIC 400GbE (default mode) /NDR IB Single-port QSFP112 PCIe Gen5.0 x16 8 Arm cores 16GB on board DDR Integrated BMC Crypto Disabled
Part Number:
900-9D3D4-00NN-HA0
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Bluefield-3 E-series: 8 Arm-cores - 505mhz/2000mhz
Physical

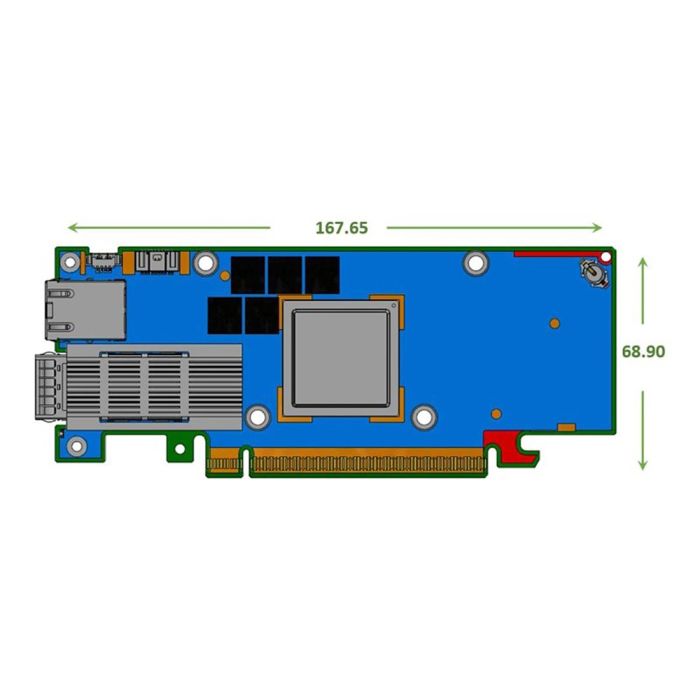

Single-slot Hhhl Card Dimensions: 68.90mm X 167.65mm
Tall Bracket Dimensions: 120.5 X 21.95mm
Short Bracket Dimensions: 80.22mm X 22.83mm
Heatsink Dimensions (length, Width, Height): 139.6mm X 92.7mm X 10.2mm
Interfaces
On-board Memory:
- Single-channel With 10 Ddr5 + Ecc (64bit + 8bit Ecc) For A Total Of 16gb @ 5200mt/s
- 40gb Pslc Emmc Memory + 128gb Ssd
Pci Express Interface: Gen 5.0 Serdes @ 32.0gt/s, 16 Lanes (4.0, 3.0, 2.0 And 1.1 Compatible)
Networking Connector: Single-port Qsfp112 (copper And Optical)
Capabilities Crypto Disabled With Integrated Bmc
Data Rate
Infiniband: Ndr/ndr200/hdr/hdr100/edr/fdr/sdr
Ethernet (default): 400/200/100/50/25/10 Gb/s
Protocol Support
Infiniband :ibta V1.5
Auto-negotiation: Ndr (4 Lanes X 100gb/s Per Lane) Port, Ndr200 ( 2 Lanes X 100gb/s Per Lane ) Port, Hdr (50gb/s Per Lane) Port, Hdr100 (2 Lane X 50gb/s Per Lane), Edr (25gb/s Per Lane) Port, Fdr (14.0625gb/s Per Lane), 1x/2x/4x Sdr (2.5gb/s Per Lane)
Ethernet: 4 00gaui-4 C2m, 400gbase-cr4 , 200gaui-4 C2m, 200gbase-cr4, 100gaui-2 C2m, 100gbase-cr4, 100gbase-cr2, 100gbase-cr1, 50gaui-2 C2m, 50gaui-1 C2m, 50gbase-cr, 50gbase-r2 , 40gbase-cr4, 40gbase-r2, 25gbase-r, 10gbase-r, 10gbase-cx4, 1000base-cx, Caui-4 C2m, 25gaui C2m, Xlaui C2m , Xlppi, Sfi
Electrical Specifications
Voltage: 12v
Environmental
Temperature:
- Operational - 0c To 55c (degree C)
- Non-operational: - 40c To 70c (degree C)
Humidity:
Operational: 10% To 85% Relative Humidity
Non-operational: 10% To 90% Relative Humidity
Regulatory
Rohs: Rohs Compliant
Condition: New Factory Sealed.
Availability: In Stock.
Our Warranty: 90 Days.
NVIDIA 900-9D3D4-00NN-HA0 Bluefield-3 B3140h E-series Hhhl Supernic 400gbe (default Mode) /ndr Ib Single-port Qsfp112 Pcie Gen5.0 X16 8 Arm Cores 16gb On Board Ddr Integrated Bmc Crypto Disabled
Specifications
Bluefield-3 Soc
Physical
Interfaces
- Single-channel With 10 Ddr5 + Ecc (64bit + 8bit Ecc) For A Total Of 16gb @ 5200mt/s
- 40gb Pslc Emmc Memory + 128gb Ssd
Capabilities Crypto Disabled With Integrated Bmc
Data Rate
Protocol Support
Electrical Specifications
Environmental
- Operational - 0c To 55c (degree C)
- Non-operational: - 40c To 70c (degree C)
Regulatory
Condition: New Factory Sealed.
Availability: In Stock.
Our Warranty: 90 Days.
| Capacity | 1 PORT |
|---|---|
| Condition | New Factory Sealed |
| Manufacturer | NVIDIA |
