NVIDIA 900-9D3C6-00CV-DA0 BlueField-3 B3220SH E-Series FHHL Storage Controller 200GbE (default mode) / NDR200 IB Dual-port QSFP112 PCIe Gen5.0 x16 with x16 PCIe extension option 16 Arm cores 48GB on-board DDR integrated BMC Crypto Enabled Secure Boot
Part Number:
900-9D3C6-00CV-DA0
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.

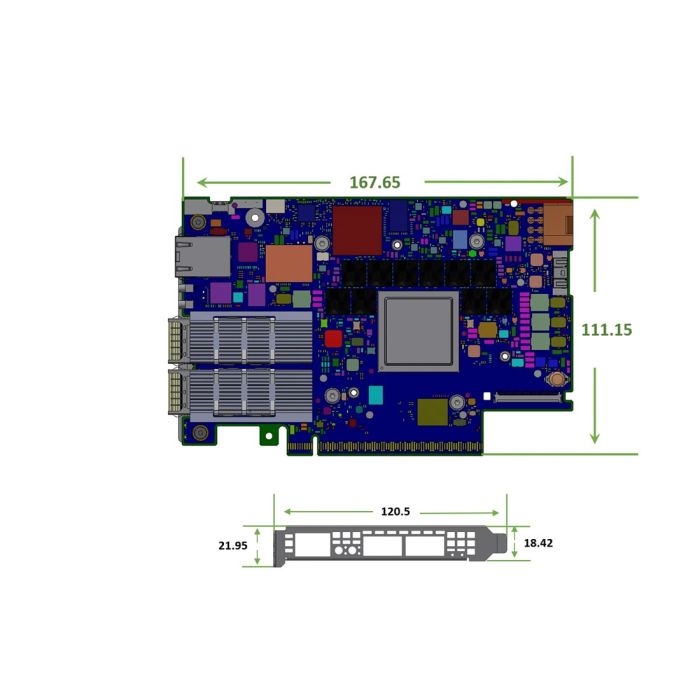

Product Overview Single-slot Fhhl Card Dimensions: 111.15mm X 167.65mm
Full Height Bracket Dimensions: 121.0mm X 21.6mm
Heatsink : Heatsink Dimensions (length, Width, Height): 139.6mm X 92.7mm X 10.2mm
Interfaces
Pci Express Interface:
- Gen 5.0 Serdes @ 32.0gt/s, 16 Lanes (4.0, 3.0, 2.0 And 1.1 Compatible)
- Optional: Additional Pcie X16 Gen 5.0 @ Serdes 32gt/s Through The Pcie Auxiliary Passive Card And Cabline Sa-ii Plus Harnesses
Capabilities: Crypto Enabled, Secure Boot.
On-board Memory
Dual-channel With 20 Ddr5 + Ecc (128bit + 16bit Ecc) For A Total Of 48gb @ 5200mt/s
40gb Pslc Emmc Memory + 128gb Ssd
Networking Connector - Dual-port Qsfp112 (copper And Optical)
Data Rate
Infiniband - Ndr200/hdr/hdr100/edr/fdr/sdr
Ethernet (default Speed) - 200/100/50/25/10 Gb/s
Protocol Support
Infiniband: Ibta V1.5a
Auto-negotiation: Ndr200 ( 2 Lanes X 100gb/s Per Lane ) Port, Hdr (50gb/s Per Lane) Port, Hdr100 (2 Lane X 50gb/s Per Lane), Edr (25gb/s Per Lane) Port, Fdr (14.0625gb/s Per Lane), 1x/2x/4x Sdr (2.5gb/s Per Lane).
Ethernet: 200gaui-4 C2m, 200gaui-2 C2m, 200gbase-cr4, 100gaui-2 C2m, 100gbase-cr4, 100gbase-cr2, 100gbase-cr1, 50gaui-2 C2m, 50gaui-1 C2m, 50gbase-cr, 50gbase-r2 , 40gbase-cr4, 40gbase-r2, 25gbase-r, 10gbase-r, 10gbase-cx4, 1000base-cx, Caui-4 C2m, 25gaui C2m, Xlaui C2m , Xlppi, Sfi
Electrical And Thermal Specifications
Voltage: 12v
Environmental
temperature:
- Operational: 0°c To 55°c
- Non-operational: -40°c To 70°ca
Humidity:
- Operational: 10% To 85% Relative Humidity
- Non-operational: 10% To 90% Relative Humidity
Altitude (operational): 3050m
Regulatory
Rohs: Rohs Compliant
Condition: New Factory Sealed.
Availability: In Stock.
Our Warranty: 90 Days.
NVIDIA 900-9D3C6-00CV-DA0 Bluefield-3 B3220sh E-series Fhhl Storage Controller 200gbe (default Mode) / Ndr200 Ib Dual-port Qsfp112 Pcie Gen5.0 X16 With X16 Pcie Extension Option 16 Arm Cores 48gb On-board Ddr Integrated Bmc Crypto Enabled Secure Boot
Specifications
Bluefield-3 Ic Bluefield-3 E-series - 16 Arm-cores - 505 Mhz/2000mhz
Physical
Interfaces
- Gen 5.0 Serdes @ 32.0gt/s, 16 Lanes (4.0, 3.0, 2.0 And 1.1 Compatible)
- Optional: Additional Pcie X16 Gen 5.0 @ Serdes 32gt/s Through The Pcie Auxiliary Passive Card And Cabline Sa-ii Plus Harnesses
On-board Memory
Data Rate
Protocol Support
Electrical And Thermal Specifications
Environmental
- Operational: 0°c To 55°c
- Non-operational: -40°c To 70°ca
- Operational: 10% To 85% Relative Humidity
- Non-operational: 10% To 90% Relative Humidity
Regulatory
Condition: New Factory Sealed.
Availability: In Stock.
Our Warranty: 90 Days.
| Capacity | 2 PORT |
|---|---|
| Condition | New Factory Sealed |
| Manufacturer | NVIDIA |
