HPE 807879-S01 ML110 Gen9 E5-1603v3 4GB-R B140i 4LFF 1x1TB 350W PS US Server/S-Buy

General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : 807879-S01
Manufacturer Website Address : WWW.HPE.COM

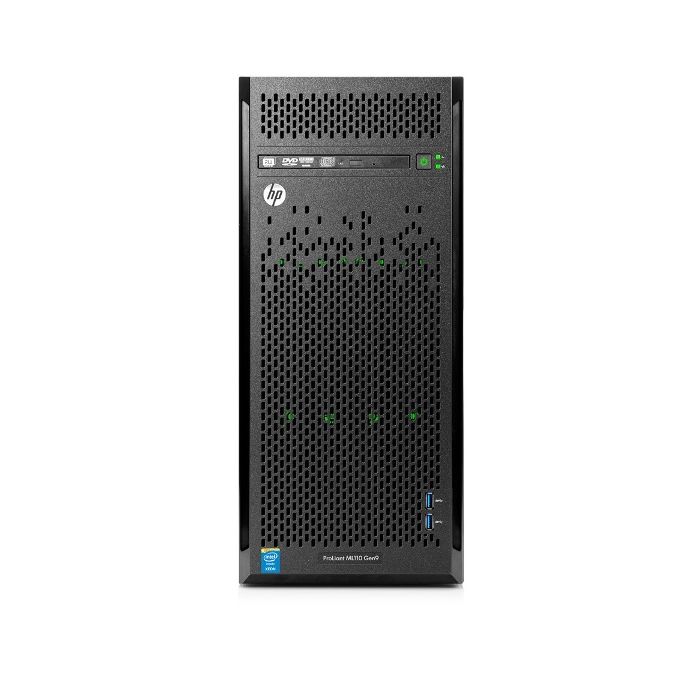

Product Name: Proliant Ml110 Gen9 - 4.5u Tower Server ( Smart Buy)

Processor & Chipset :
Processor Type : Intel Xeon E5-1603v3/ 2.8ghz
Quickpath Interconnect : 0 Gt/s
Number Of Cores : 4-core
64-bit Computing : Yes
Compatible Processor Socket : Fclga2011-3
Installed Qty : 1
Max Supported Qty : 1
Chipset Type : Intel C610 Series

Cache Memory :
Cache Memory Type : Smart Cache
Installed Size : 10mb
Cache Per Processor : 10 Mb

Memory :
Installed Size : 4(1x4)gb / 256 Gb (max)
Technology : Ddr4 Sdram - Advanced Ecc
Memory Speed : 1866 Mhz
Memory Specification Compliance : Pc4-17000
Form Factor : Dimm 288-pin
Features : Registered, Online Spare Memory, Hp Smartmemory
Configuration Features : 1 X 4 Gb
Ram Supported : Pc4-17000 - 128 Gb - Load-reduced ¶ Pc4-17000 - 256 Gb - Registered

Storage:
Hard Drive :
Type : Hdd - Hot-swap
Capacity : 1 X 1 Tb
Interface Type : Sata 6gb/s
Features : Midline
Optical Drive : Dvd-rw - Sata

Storage Controllers:
Storage Controller Name : Smart Array B140i
Buffer Size : None
Disk Drive : Up To 6gb/s Sata (serial Ata)
Connectors : 10 Internal Sata Connectors
Server Interface : X4 Pcie 2.0
Sata Speed : 6gb/s Sata Links
Logical Drives Supported : Up To 8 Logical Volumes (6 Physical Drives)
Host Memory Addressing : 64-bit, Supporting Greater Than 4gb Server Memory Space
Raid Support : Raid 0, Raid 1, Raid 5, Raid 10, Raid 50

Display & Graphics Controllers :
Graphics Processor : No Graphics

Network & Communication :
Networking Type : Integrated
Interface (bus) Type : Pci Express X2
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : Hp 330i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-out 4
Features : Wake On Lan (wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab

Expansion/ Connectivity :
Expansion Bays Total (free) :
1 (total) / 0 (free) X External 5.25
4 (total) / 3 (free) X Internal 3.5 Lff

Expansion Slots Total (free) :
8 (total) / 7 (free) X Dimm 288-pin
1 (total) / 0 (free) X Cpu
2 (total) / 2 (free) X Pcie 3.0 X8 - Half-length, Full-height
2 (total) / 2 (free) X Pcie 3.0 X4 - Half-length, Full-height
1 (total) / 1 (free) X Pcie 3.0 X16 - Three-quarter-length, Full-height
1 (total) / 1 (free) X Microsd Card (internal)

Interfaces & Ports :
1 X Vga ( 1 Rear )
2 X Lan (gigabit Ethernet)
1 X Hp Ilo
5 X Usb 3.0 ( 2 Front, 2 Rear, 1 Internal )
3 X Usb 2.0 ( 2 Rear, 1 Internal )

Miscellaneous :
Compliant Standards :
Acpi 2.0b, Fcc Class B Certified, Cispr 24, Ices-003, En 61000-3-3, Cispr 22, Fcc Cfr47 Part 15, Iec 60950-1, En 60950-1, Gb 9254, Cns 13438

Manufacturer Selling Program :
HPE Smart Buy

Power Description :
Device Type : Power Supply
Installed Qty :
Max Supported Qty : 2
Nominal Voltage : Ac 100-230v (50/60 Hz)
Power Provided : 350 Watt

Dimensions & Weight :
Depth : 18.9 Inch
Width : 7.7 Inch
Height : 17.3 Inch
Weight : 27.6 Lbs

Availability : In Stock
Condition : Refurbished.
Our Warranty : 90 Days
