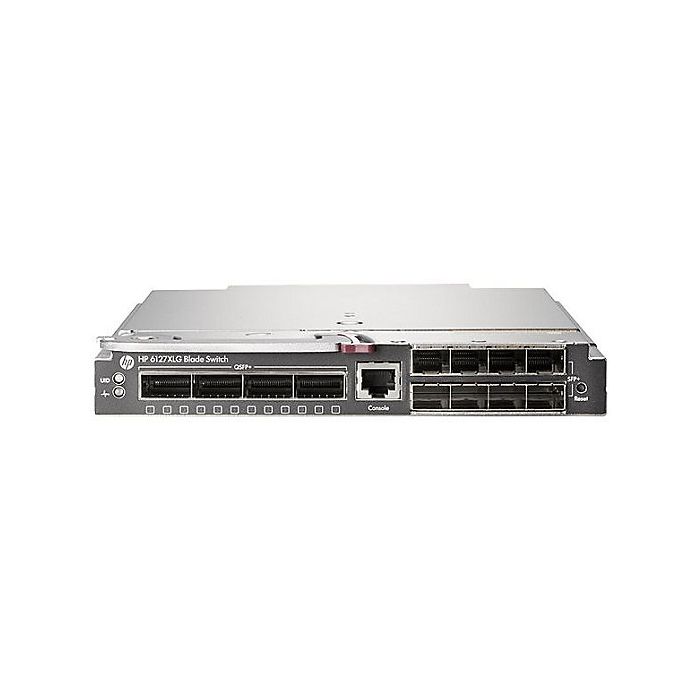

HPE 797211-001 6127Xlg Blade Switch

HPE - 6127xlg Ethernet Blade Switch - Switch - 12 Ports - Managed - Plug-in Module (797211-001).

Key Features :
device Type : Switch - 12 Ports - L3 - Managed
enclosure Type : Plug-in Module
ports : 4 X 40 Gigabit Qsfp+ + 8 X 10 Gigabit Sfp+
performance : Bandwidth: 240 Gbps ¦ Throughput: 1.2 Tbps ¦ Forwarding Performance: 14800000 Packets Per Second ¦ Forwarding Performance: 59200000 Packets Per Second ¦ Latency: 1 Μs
capacity : Virtual Interfaces (vlans): 4094 ¦ Igmp Groups: 1024
mac Address Table Size : 128k Entries
jumbo Frame Support : 10000 Bytes
routing Protocol : Ospf, Rip, Bgp-4, Rip-1, Rip-2, Bgp, Igmp, Vrrp, Pim-sm, Pim-dm, Igmpv3, Ospfv3, Pim-ssm, Bidirectional Pim, Msdp, Static Ipv4 Routing, Static Ipv6 Routing, Ecmp, Policy-based Routing (pbr), Ripng, Mld, Mpls, Cidr, Bgp+
remote Management Protocol : Snmp 1, Snmp 2, Snmp, Telnet, Snmp 3, Https, Tftp, Ssh-2
encryption Algorithm : Ike
authentication Method : Radius, Tacacs+, Secure Shell V.2 (ssh2)
features : Flow Control, Layer 2 Switching, Auto-sensing Per Device, Dhcp Support, Auto-negotiation, Bootp Support, Arp Support, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Syslog Support, Port Mirroring, Weighted Round Robin (wrr) Queuing, Ipv6 Support, Full Duplex Mode, Weighted Fair Queuing (wfq), Weighted Random Early Detection (wred), Sflow, Rapid Spanning Tree Protocol (rstp) Support, Per-vlan Spanning Tree (pvst), Virtual Route Redundancy Protocol (vrrp) Support, Multiple Spanning Tree Protocol (mstp) Support, Tunneling, Data Center Bridging Exchange (dcbx) Support, Access Control List (acl) Support, Quality Of Service (qos), Committed Access Rate (car), Jumbo Frames Support, Ipsec Passthrough, Mld Snooping, Device Link Detection Protocol (dldp) Support, Endpoint Admission Defense (ead), Stp Root Guard, Unicast Reverse Path Forwarding (urpf), Lldp Support, Link Aggregation Control Protocol (lacp), Management Information Base (mib), Dynamic Arp Protection, Dhcp Protection, Multiple Vlan Registration Protocol (mvrp), Maximum Likelihood Demodulation (mld), Static Routing, Ingress Layer 2 Mac Access Control Lists (acls), Strict Priority (sp), Intelligent Resilient Framework Technology (irf), Multicast Source Discovery Protocol (msdp), 802.1x Authentication, Garp Vlan Registration Protocol (gvrp), Type Of Service (tos), Diffserv Code Point (dscp) Support, Fcoe Support, Virtual Ethernet Port Aggregator (vepa), Ip Source Guard, Shortest Path Bridging (spb), Icmp Router Discovery Protocol (irdp), Fibre Channel Forwarder (fcf), Npv Gateway Mode, Transparent Interconnection Of Lots Of Links (trill), Virtual Extensible Lan (vxlan)
compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.1s, Ieee 802.3ah, Ieee 802.1v, Ieee 802.1ag, Ieee 802.1ax, Ieee 802.1qbb, Ieee 802.1qaz, Ieee 802.1qbg, Ieee 1588v2, Ieee 802.3ag
ram : 2 Gb
flash Memory : 512 Mb
status Indicators : Unit Id, Link/activity

expansion / Connectivity :
interfaces :
4 X 40gbit Lan - Qsfp+
8 X 10gbit Lan - Sfp+
1 X Console - Rj-45 - Management

Condition : Refurbished.
Availability : In Stock.
Our Warranty : 90 Days
