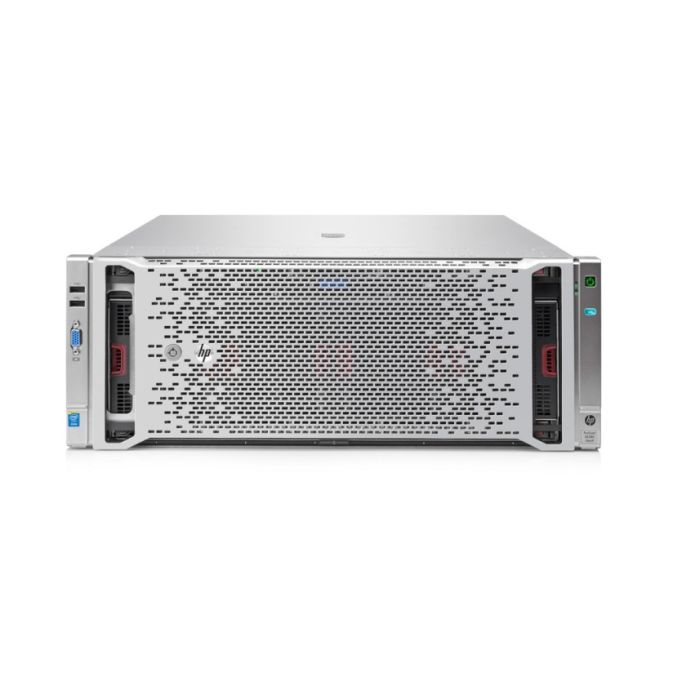

HPE 793308-B21 DL580 Gen9 E7-4809v3 2P 64GB-R P830i/2G 331FLR-SFP+ 1200W RPS Server
Part Number:
793308-B21
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Hard Drive : None
Optical Drive : None
Storage Controllers:
Storage Controller Name : Smart Array P830i
Buffer Size : 2 Gb
Disk Drive : 12gb/s Sas / 6gb/s Sas & Sata
Sas Connectors : 2 Internal X8 Mini-sas Double-wide Internal
Cache Memory Speed : Ddr2-1866mhz With 72-bit Wide Bus At 14.9 Gb/s (4 Gibytes Cache Module)
Sas Speed : 12gb/s Per Physical Link
Cache Memory : Fbwc Cache Is Required. 2gb Is Included With Bto Models. For Cto, 2gb Or 4gb Fbwc Cache Is Required.
Logical Drives Supported : Up To 64 Logical Volumes
Host Memory Addressing : 64-bit, Supporting Greater Than 4gib Server Memory Space
Raid Support :
Raid 6, 60 (advanced Data Guarding)
Raid 5, 50 (distributed Data Guarding)
Raid 1, 10 (drive Mirroring), Raid 1 Adm, 10 Adm (advanced Data Mirroring)
Raid 0 (striping)
Network & Communication:
Interface (bus) Type : Pci Express 2.0 X4
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller : Hp 331flr
Data Link Protocol : Gigabit Ethernet
Remote Management Controller : Integrated Lights-out 4
Features : Wake On Lan (wol), Acpi Support, Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.3ae, Ieee 802.1ax, Ieee 802.1qbb, Ieee 802.1qaz, Ieee 802.1qau, Ieee 802.1qbg, Ieee 802.2x
Expansion/ Connectivity :
Expansion Bays Total (free) :
5 (total) / 5 (free) X Hot-swap 2.5 Sff
Expansion Slots Total (free) :
96 (total) / 92 (free) X Dimm 240-pin
4 (total) / 2 (free) X Cpu
5 (total) / 5 (free) X Pcie 3.0 X16 - Full-length, Full-height
4 (total) / 4 (free) X Pcie 3.0 X16 - Half-length, Full-height ( X8 Mode )
1 (total) / 0 (free) X Flexiblelom
1 (total) / 1 (free) X Microsd Card
Interfaces & Ports :
1 X Serial
2 X Vga ( 1 Front, 1 Rear )
1 X Hp Ilo
8 X Usb 2.0 ( 2 Front, 4 Rear, 2 Internal )
2 X Lan (10gigabit Ethernet) - Sfp+
Miscellaneous :
Features :
Administrator Password
Power-on Password
Keyboard Password
Serial Port I/o Control
Usb Port Control
Compliant Standards :
Acpi 2.0, Fcc Class A Certified, En 61000-3-2, En55022, Ices-003, En 61000-3-3, En55024, Cispr 22, Fcc Cfr47 Part 15, Iec 60950-1, En 60950-1, Weee, Gb 9254, Cns 13438
Power Description :
Device Type : Flex Slot Platinum Plus Hot-plug Power Supply
Installed Qty :
Max Supported Qty : 2
Nominal Voltage : Ac 100-230v (50/60 Hz)
Power Provided : 1200 Watt
Dimensions & Weight :
Depth : 29 Inch
Width : 17.48 Inch
Height : 6.88 Inch
Weight : 70.94 Lbs
Availability : In Stock
Condition : Refurbished
Our Warranty : 90 Days
General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : 793308-B21
Manufacturer Website Address : WWW.HPE.COM
Product Name: Proliant Dl580 Gen9 - 4u Rack Mountable Server ( Base Model)
Processor & Chipset :
Processor Type : Intel Xeon E5-4809v3/ 2.0ghz
Quickpath Interconnect : 6.4 Gt/s
Number Of Cores : 8-core
64-bit Computing : Yes
Compatible Processor Socket : Fclga2011
Installed Qty : 2
Max Supported Qty : 4
Chipset Type : Intel C602j Series
Cache Memory :
Cache Memory Type : Smart Cache
Installed Size : 20mb
Cache Per Processor : 20 Mb
Memory :
Installed Size : 64 Gb / 6 Tb (max)
Technology : Ddr4 Sdram
Form Factor : Dimm 288-pin
Slots : 96 (total) / 92 (empty)
Configuration Features : 4 X 16 Gb
Storage:
Storage Controllers:
Storage Controller Name : Smart Array P830i
Buffer Size : 2 Gb
Disk Drive : 12gb/s Sas / 6gb/s Sas & Sata
Sas Connectors : 2 Internal X8 Mini-sas Double-wide Internal
Cache Memory Speed : Ddr2-1866mhz With 72-bit Wide Bus At 14.9 Gb/s (4 Gibytes Cache Module)
Sas Speed : 12gb/s Per Physical Link
Cache Memory : Fbwc Cache Is Required. 2gb Is Included With Bto Models. For Cto, 2gb Or 4gb Fbwc Cache Is Required.
Logical Drives Supported : Up To 64 Logical Volumes
Host Memory Addressing : 64-bit, Supporting Greater Than 4gib Server Memory Space
Raid Support :
Raid 6, 60 (advanced Data Guarding)
Raid 5, 50 (distributed Data Guarding)
Raid 1, 10 (drive Mirroring), Raid 1 Adm, 10 Adm (advanced Data Mirroring)
Raid 0 (striping)
Network & Communication:
Interface (bus) Type : Pci Express 2.0 X4
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller : Hp 331flr
Data Link Protocol : Gigabit Ethernet
Remote Management Controller : Integrated Lights-out 4
Features : Wake On Lan (wol), Acpi Support, Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.3ae, Ieee 802.1ax, Ieee 802.1qbb, Ieee 802.1qaz, Ieee 802.1qau, Ieee 802.1qbg, Ieee 802.2x
Expansion/ Connectivity :
Expansion Bays Total (free) :
5 (total) / 5 (free) X Hot-swap 2.5 Sff
Expansion Slots Total (free) :
96 (total) / 92 (free) X Dimm 240-pin
4 (total) / 2 (free) X Cpu
5 (total) / 5 (free) X Pcie 3.0 X16 - Full-length, Full-height
4 (total) / 4 (free) X Pcie 3.0 X16 - Half-length, Full-height ( X8 Mode )
1 (total) / 0 (free) X Flexiblelom
1 (total) / 1 (free) X Microsd Card
Interfaces & Ports :
1 X Serial
2 X Vga ( 1 Front, 1 Rear )
1 X Hp Ilo
8 X Usb 2.0 ( 2 Front, 4 Rear, 2 Internal )
2 X Lan (10gigabit Ethernet) - Sfp+
Miscellaneous :
Features :
Administrator Password
Power-on Password
Keyboard Password
Serial Port I/o Control
Usb Port Control
Compliant Standards :
Acpi 2.0, Fcc Class A Certified, En 61000-3-2, En55022, Ices-003, En 61000-3-3, En55024, Cispr 22, Fcc Cfr47 Part 15, Iec 60950-1, En 60950-1, Weee, Gb 9254, Cns 13438
Power Description :
Device Type : Flex Slot Platinum Plus Hot-plug Power Supply
Installed Qty :
Max Supported Qty : 2
Nominal Voltage : Ac 100-230v (50/60 Hz)
Power Provided : 1200 Watt
Dimensions & Weight :
Depth : 29 Inch
Width : 17.48 Inch
Height : 6.88 Inch
Weight : 70.94 Lbs
Availability : In Stock
Condition : Refurbished
Our Warranty : 90 Days
| Capacity | OCTA-CORE XEON 2.0GHz |
|---|---|
| Condition | Refurbished |
| Manufacturer | HPE |
