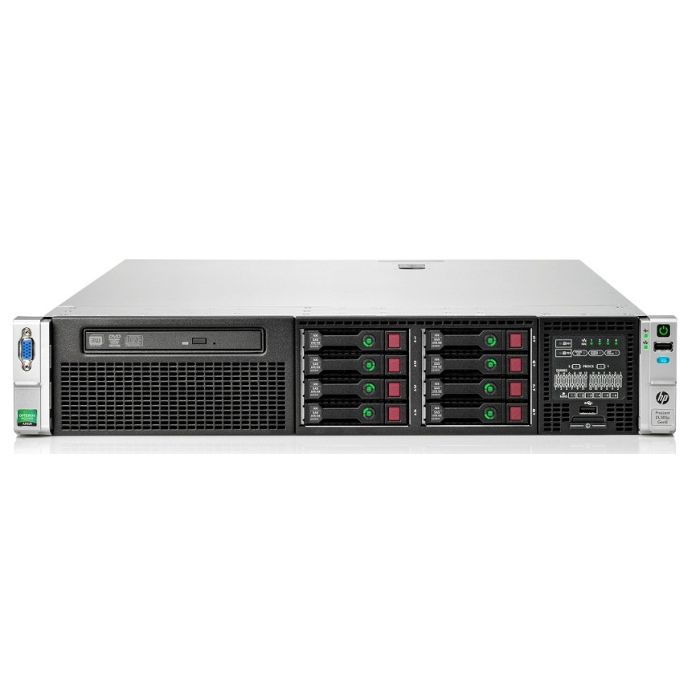

HPE 748303-S01 ProLiant DL380P G8 E5-2690V2/3.0GHz 32GBR 2U Rack Server
Part Number:
748303-S01
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview
General Information :
Manufacturer: HPE
Manufacturer Part Number: 748303-S01
Manufacturer Website Address: WWW.HPE.COM
Product Name: Proliant Dl380p G8 2u-rack Server Smart Buy
Processor & Chipset :
Processor Type : Intel Xeon E5-2690 V2 / 3.0ghz
Compatible Slots : Lga2011 Socket
Multi-core Technology : Ten-core (10-core)
64 Bit Computing : Yes
Installed Qty : 2
Max Supported Qty : 2
Upgradability : Upgradable
Chipset Model : Intel C600
Cache Memory :
Cache Memory Type : L3 Cache
Installed Size : 50 Mb
Cache Per Processor : 25 Mb
Memory :
Installed Size: 32 Gb / 768 Gb (max)
Technology: Ddr3 Sdram
Memory Speed: 1866 Mhz
Memory Specifications Compliance: Pc3-14900r
Form Factor: Dimm 240-pin
Number Of Total Memory Slots: 24
features:
Registered, Dual Rank, Quad Channel Memory Architecture, Hp Smart Memory
configuration Features: 2 X 16 Gb
ram Supported:
Pc3-14900 - 384 Gb - Registered
Pc3-12800 - 384 Gb - Low Voltage - Registered
Pc3-10600 - 768 Gb - Low Voltage - Load-reduced
Pc3-14900 - 128 Gb - Unbuffered - Advanced Ecc
Pc3-12800 - 128 Gb - Low Voltage - Unbuffered - Advanced Ecc
Pc3-10600 - 384 Gb - Hypercloud
Storage :
Hard Drive : None Ship Standard
Internal Storage : Standard 8 Sff Sas/sata Hdd Bays
Optical Drive : None
Optical Drive Bay : Optional Slim Optical Bay (sata Dvd-rw /rom Optical Drive)
Storage Controllers :
Storage Controller Type : 1 X Raid - Plug-in Card - Pci Express 3.0 X8
Controller Interface Type : Sata 6gb/s / Sas 6gb/s
Storage Controller Name : Smart Array P420i With 1 Gb Fbwc
Raid Level: Raid 0, Raid 1, Raid 5, Raid 10, Raid 50, Raid 60
Buffer Size : 1 Gb
Display & Graphics :
Graphics Type : Integrated
Graphics Controller Model : Matrox G200
Video Interfaces : Vga
Network & Communication :
Networking Type : Plug-in Card
Interface (bus) Type : Pci Express 2.0 X4
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller : Hp 533flr
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet,
Remote Management Controller : Integrated Lights-out 4
Features : Wake On Lan (wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (lacp)
Expansion & Connectivity :
expansion Bays Total (free):
1 (total) ( 0 ) (total) X Front Accessible - 5.25in Slim Line
8 (total) ( 8 ) (total) X Hot-swap - 2.5in Sff
Expansion Slots Total :
24 (total) / 22 (free) X Memory - Dimm 240-pin
2 (total) / 0 (free) X Processor
2 (total) / 2 (free) X Pci Express 3.0 X16 - Full-length, Full-height
3 (total) / 3 (free) X Pci Express 3.0 X8 - Half-length, Full-height
1 (total) / 1 (free) X Pci Express 2.0 X8 - Half-length, Full-height ( X4 Mode )
1 (total) / 0 (free) X Flexiblelom ( X4 Mode )
interfaces & Ports :
1 X Serial - Rs-232 - 9 Pin D-sub (db-9)
2 X Display / Video - Vga - 15 Pin Hd D-sub (hd-15) ( 1 Front, 1 Rear )
7 X Usb - 4 Pin Usb Type A ( 2 Front, 4 Rear, 1 Internal )
4 X Lan (10gigabit Ethernet)
1 X Management - Hp Ilo - Rj-45 Engine Standard
Power Description :
Device Type: Power Supply Hot Plug
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Installed Qty: 2
Max Supported Qty: 2
Voltage Required: Ac 120/220 V
Power Provided: 750 Watt
80 Plus Certification : 80 Plus Platinum
Dimensions & Weight :
Width : 17.5 In
Depth : 27.5 In
Height : 3.4 In
Weight : 41 Lbs
Condition : Refurbished.
Availability : In Stock.
Our Warranty : 90 Days.
HPE 748303-S01 Proliant Dl380p G8 S-buy- 2x Xeon 10-core E5-2690 V2/3.0ghz, 32gb Ddr3 Ram, 8sff Sas/sata Hdd Bays, Hp Smart Array P420i/1gb Fbwc (raid 0/1/1+0/5/5+0), Hp Ethernet 1gb 4-port 331flr Adapter, 2x 750w Ps, 2u Rack Server
General Information :
Processor & Chipset :
Cache Memory :
Memory :
features:
configuration Features: 2 X 16 Gb
ram Supported:
Storage :
Storage Controllers :
Display & Graphics :
Network & Communication :
Expansion & Connectivity :
expansion Bays Total (free):
Expansion Slots Total :
interfaces & Ports :
Power Description :
Dimensions & Weight :
Condition : Refurbished.
Availability : In Stock.
Our Warranty : 90 Days.
| Capacity | 10-CORE XEON 3.0GHz |
|---|---|
| Condition | Refurbished |
| Manufacturer | HPE |
