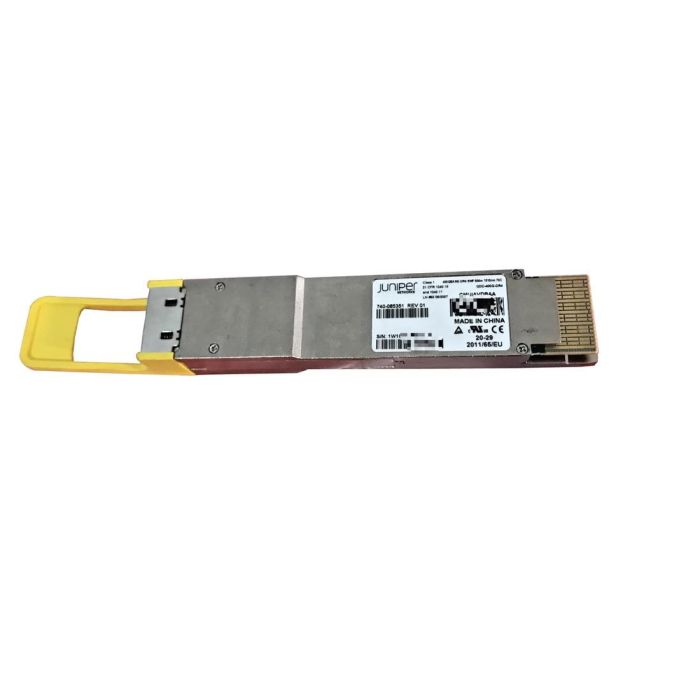

Juniper Networks 740-085351 QSFP-DD 400GBASE-DR4/4X100GBASE-DR SMF 500m MPO-12 connector
Part Number:
740-085351
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Speed: 4 X 100 Gigabit Ethernet, 400 Gigabit Ethernet
Breakout Capable: Yes
Form Factor: Qsfp-dd
Product Type: Optical Transceiver
Connector: Mpo-12/apc
Monitoring Available: Yes
Digital Optical Monitoring: Yes
Standard: 400g Dr4 And 100g Dr
Msa Compliance (sff, For E.g. Sff-8665):
- Qsfp-dd Msa, Qsfp-dd Hardware Specification For Qsfp Double Density 8x Pluggable Transceiver
- Common Management Interface Specification For 8x/16x Pluggable Transceivers Rev 3.0
Digital Diagnostic Monitoring:
- Transceiver Temperature
- Transceiver Supply Voltage
- Tx Bias Current
- Tx Output Power
- Rx Received Optical Power
Signaling Rate Each Lane:
- Host Lane: 26.5625 Gbd Pam4 +/-100 Ppm
- Media Lane: 53.125 Gbd Pam4 +/-100 Ppm
Transmitter Fibers: 8
Transmitter Wavelengths (range): 1304.5 Nm To 1317.5 Nm
Receive Lane Wavelengths (range): 1304.5 Nm To 1317.5 Nm
Transmitter Output Power Each Lane (minimum): -2.9 Dbm
Transmitter Output Power Each Lane (maximum): 4 Dbm
Transmitter And Dispersion Eye Closure For Pam4 (tdecq) Each Lane (maximum): 3.4 Dbm
Receiver Input Power Each Lane (minimum): -5.9 Dbm
Receiver Input Power Each Lane (maximum): 4 Dbm
Receiver Sensitivity (oma) Each Lane (maximum): Max (-3.9, Secq -5.3) Dbm
Stressed Receiver Sensitivity (oma) Each Lane (maximum): -1.9 Dbm
Cable Type: Smf
Core Size/cladding: 9/125 Μm
Distance: 500 M
Maximum Power Consumption (w): 12 W
Operating Temperature (range): 0c To 70c
Storage Temperature: – 40 C To 85 C
Typical Weight & Dimensions:
- Weight: 0.2 Kg
- Height: 13.5 Mm
- Width: 18.35 Mm
- Depth: 93.26 Mm
Condition: New.
Availability: In Stock.
Our Warranty: 90 Days.
Juniper Networks 740-085351 Qsfp-dd 400gbase-dr4/4x100gbase-dr Smf 500m Mpo-12 Connector
Specifications
- Qsfp-dd Msa, Qsfp-dd Hardware Specification For Qsfp Double Density 8x Pluggable Transceiver
- Common Management Interface Specification For 8x/16x Pluggable Transceivers Rev 3.0
- Transceiver Temperature
- Transceiver Supply Voltage
- Tx Bias Current
- Tx Output Power
- Rx Received Optical Power
- Host Lane: 26.5625 Gbd Pam4 +/-100 Ppm
- Media Lane: 53.125 Gbd Pam4 +/-100 Ppm
- Weight: 0.2 Kg
- Height: 13.5 Mm
- Width: 18.35 Mm
- Depth: 93.26 Mm
Condition: New.
Availability: In Stock.
Our Warranty: 90 Days.
| Capacity | 400 GIGABIT |
|---|---|
| Condition | New |
| Manufacturer | JUNIPER NETWORKS |
