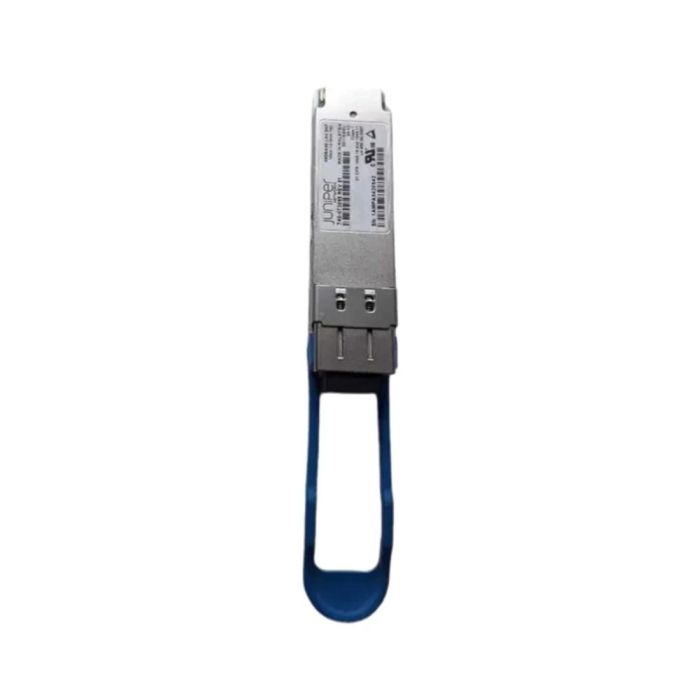

Juniper Networks 740-073095 QSFP+ 40GBase-LR4 40 Gigabit Optics for up to 10km transmission on SMF
Part Number:
740-073095
Got a Big Order or a Quick Question?
Let’s Connect—We Make Tech Buying Effortless.
Let’s Connect—We Make Tech Buying Effortless.
For Govt Institution credit terms or bulk order - Submit your detail below
Note: All heavy items above 20KG will be charged shipping
cost as per actual. Please contact us for a shipping quote before placing
order.
We accept Purchase Orders from Health & Educational
sector and all Government institutions including Councils.
Product Overview Lane 0–1264.5 Nm Through 1277.5 Nm
Lane 1–1284.5 Nm Through 1297.5 Nm
Lane 2–1304.5 Nm Through 1317.5 Nm
Lane 3–1324.5 Nm Through 1337.5 Nm
Receive Lane Wavelengths (range)
Lane 0–1264.5 Nm Through 1277.5 Nm
Lane 1–1284.5 Nm Through 1297.5 Nm
Lane 2–1304.5 Nm Through 1317.5 Nm
Lane 3–1324.5 Nm Through 1337.5 Nm
Transmitter Output Power, Each Lane (minimum) -7.6 Dbm (per Lane)
Transmitter Output Power, Each Lane (maximum) 2.3 Dbm
Receiver Input Power, Each Lane (minimum) -13.7 Dbm
Receiver Input Power, Each Lane (maximum) 2.3 Dbm
Cable Type Smf
Core Size/cladding 9/125 Micrometer
Distance 10 Km
Maximum Power Consumption (w) 3.5 W
Operating Temperature (range) 0° C To 70° C
Storage Temperature –40° C To 85° C
Condition: New.
Availability: In Stock.
Our Warranty: 90 Days.
Juniper Networks 740-073095 Qsfp+ 40gbase-lr4 40 Gigabit Coptics For Up To 10km Transmission On Smf
Specifications
Speed 40 Gigabit Ethernet
Breakout Capable No
Transceiver Type Qsfp+
Product Type Optical Transceiver
Connector Duplex Lc
Monitoring Available Yes
Digital Optical Monitoring Yes
Signaling Rate, Each Lane 40 Gbps (10 Gbps Per Lane)
Transmitter Fibers Dual
Transmitter Wavelengths (range)
Receive Lane Wavelengths (range)
Transmitter Output Power, Each Lane (minimum) -7.6 Dbm (per Lane)
Transmitter Output Power, Each Lane (maximum) 2.3 Dbm
Receiver Input Power, Each Lane (minimum) -13.7 Dbm
Receiver Input Power, Each Lane (maximum) 2.3 Dbm
Cable Type Smf
Core Size/cladding 9/125 Micrometer
Distance 10 Km
Maximum Power Consumption (w) 3.5 W
Operating Temperature (range) 0° C To 70° C
Storage Temperature –40° C To 85° C
Condition: New.
Availability: In Stock.
Our Warranty: 90 Days.
| Capacity | 40 GIGABIT |
|---|---|
| Condition | New |
| Manufacturer | JUNIPER NETWORKS |
